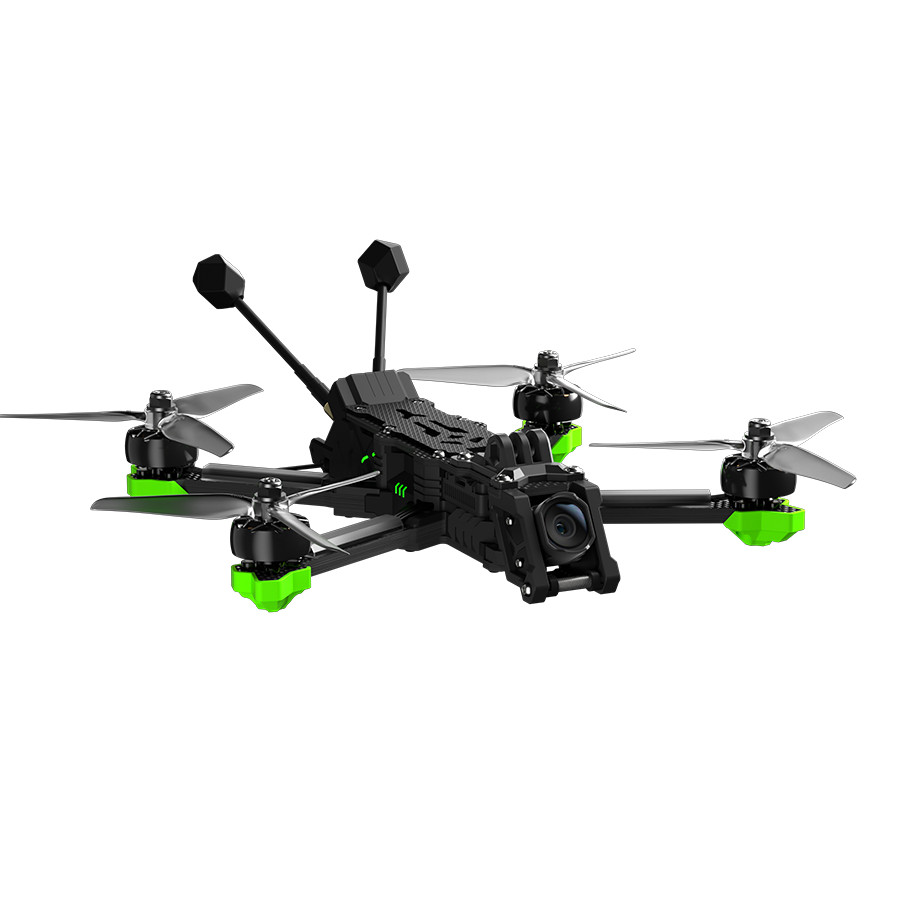

iFlight Nazgul Evoque F5 V3 O4 Pro - 6S ELRS with GPS

iFlight Nazgul Evoque F5 V3 is a top-tier freestyle five-inch drone designed for outdoor flying just for fun or for capturing action shots. The Evoque is equipped with the digital video transmission DJI O4 Pro. The DJI O4 Pro unit is located in the front section of the frame behind the camera, where the SD card and USB port are easily accessible.

The Evoque can easily carry a GoPro camera. Compared to other FPV drones, the quad has an interesting design. The frame can be easily adjusted and switched between X and Deadcat configurations according to preference. The center of the drone with the electronics is protected by plastic side panels. The side panels and the underside of the arms feature light strips that give the drone a unique look. The XT60 connector is firmly mounted on the rear of the quad. The battery cables therefore have no chance of getting tangled in the propellers. The drone also uses Anti-spark. This prevents sparks when connecting the battery while the capacitors are charging and increases connector lifespan.

The core of the quad is the iFlight Borg F7 Mini stack. The flight controller with a powerful F722 processor, 32MB of blackbox memory, a barometer for altitude measurement and an ICM42688 gyro. The second part of the stack is the Borg Mini 60 ESC with modern BlHeli_32 firmware. It can be powered by a 2-6S battery and supports current up to 60A. The ESC also includes a current sensor. Propulsion is provided by iFlight Xing2 2207 1750Kv motors. The drone includes an iFlight ELRS receiver with a single antenna on 2.4GHz, offering telemetry power up to 500mW. The drone is equipped with a GPS module, so it supports automatic return-to-home modes.

Recommended batteries are 6S with 1300-1500mAh capacity.

Important notice: The DJI O4 camera uses a new generation of gyros that are more sensitive to vibrations. This may affect the proper function of RockSteady and Gyroflow stabilization.
