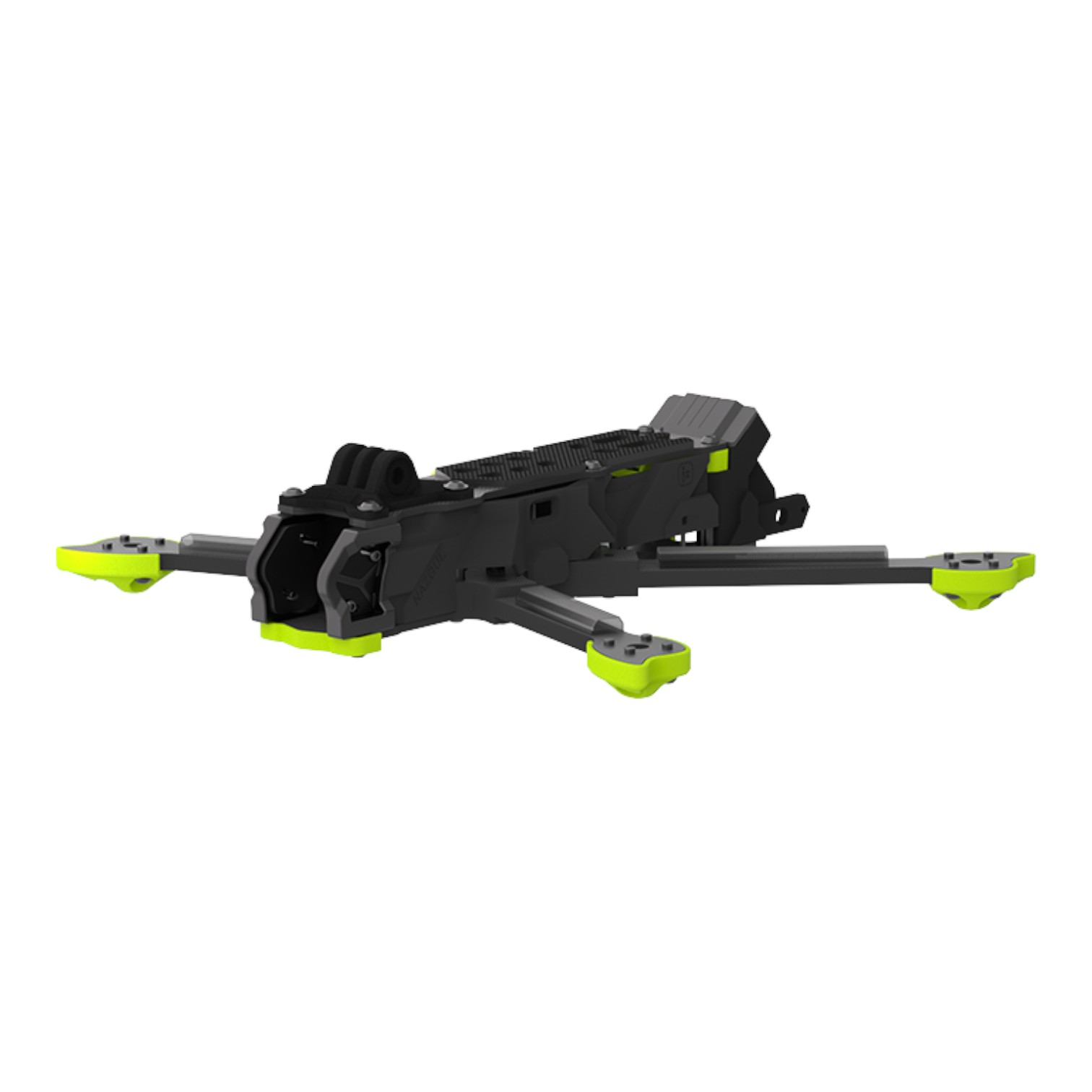

iFlight Nazgul Eco DC5 V1.1 O4 Pro

iFlight Nazgul ECO DC5 V1.1 is a frame for building a 5" freestyle drone. The frame features deadcat geometry, where the front arms are shifted more to the sides. This way, the disruptive edges of the propellers are not visible in the camera, which is appreciated especially by fans of cinematic flying. The V1.1 version brings a new camera mount for the DJI O4 Air Unit Pro, silicone side panels, and different screws compared to the previous version. Also included is a TPU set with a GoPro camera mount.

For high durability, the arms are cut from 5mm thick carbon with soft TPU plastic motor protectors. The bottom plate is made from 2.5mm and the top from 3mm carbon. The frame accommodates stacks with hole spacings of 20×20mm (M2) and 30×30mm (M3). There is 22mm available in height for the stack. The Nazgul ECO DC5 V1.1 is compatible with digital transmission from DJI O4 Pro. The video transmitter is installed in the rear part of the frame — there are mounting holes with spacings of 30×30mm / 25.5×25.5mm / 20×20mm and a height of 29mm. For securing the motors, there are mounting holes of 16×16mm M3. The total weight of the frame is 239 grams.
