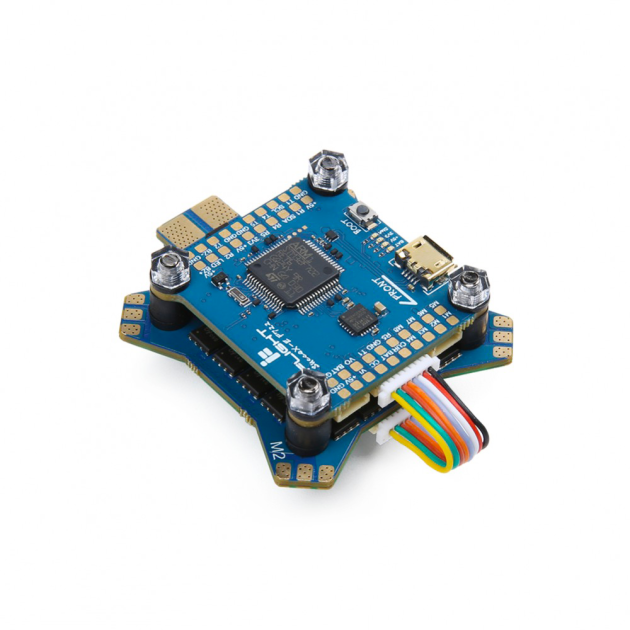

Stack consisting of SucceX-E F722 V1.4 control unit and SucceX-E 45A V2 controller suitable for freestyle and racing copters. The control unit uses a modern F722 processor and has 16MB of memory for a black box. Nice are the connectors on the bottom of the board, which minimize the need for soldering and thus facilitate construction. The 45A load controller can be used with all common motors used on 5" drones. The solder pads are located at the corners, so there is good access to them even if there is a control unit above the controller.
The wiring diagram can be found here.
Key Features
- Mounting hole pitch: 30.5x30.5mm
- Input voltage: 2-6S
- IMU: MPU6000
- BEC: 5V / 2.5A
- DShot support
- ESC firmware: BlHeli_S
- Current sensor: Yes
- Blackbox: 16MB
- Max. current: 45A
Package Includes
- 1x SucceX-E F722 V1.4
- 1x SucceX-E 45A V2
- 1x cable for interconnection
- 1x 8-pin cable
- 1x 50v 470uF capacitor
- 1x 35v 470uF capacitor
- 8x silicone softmount rings
- 1x XT60 connector with 14AWG cable
