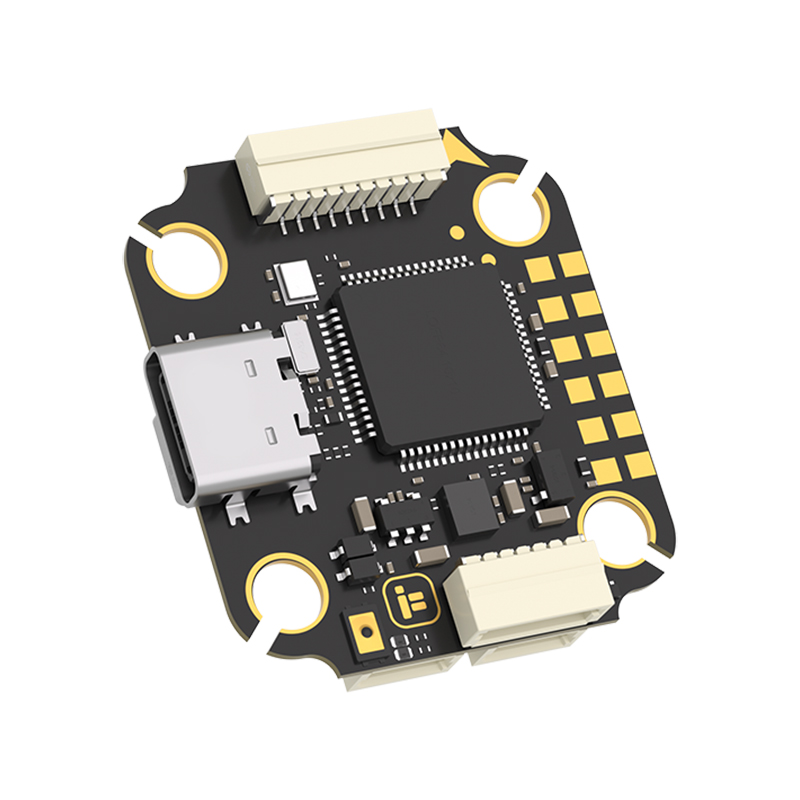

iFlight Borg Mini F7 is a flight controller with a mounting hole pattern of 20×20 mm. The board is suitable for racing and freestyle FPV drones powered by 4–8S LiPo batteries. The flight controller is connected to the regulator via a non-standard FPC ribbon cable, but solder pads are also available.
The flight controller is equipped with the STM32F722RET6 processor, ICM42688 gyroscope, SPA06 barometer for altitude measurement, and the AT7456E OSD chip for analog video. There is 32 MB of blackbox memory available. The flight controller also features a 5V/2.5A BEC and a 12V/2A switchable BEC for powering the video transmitter.
Key Features
- Input voltage: 4–8S (including LiHV)
- MCU: STM32F722RET6
- Gyro: ICM42688
- Barometer: SPA06-003
- OSD chip: AT7456E
- Blackbox: 32MB flash
- BEC: 5V/2.5A + 12V/2A (switchable)
- Mounting hole pattern: 20×20 mm
- Dimensions: 27×30.6 mm
- Weight: 6.8 g
- Betaflight target: IFLIGHT_BLITZ_F722
User Guides
Package Includes
- 1x Borg Mini F7 flight controller
- 1x Cable set
- 5x Silicone softmounts
