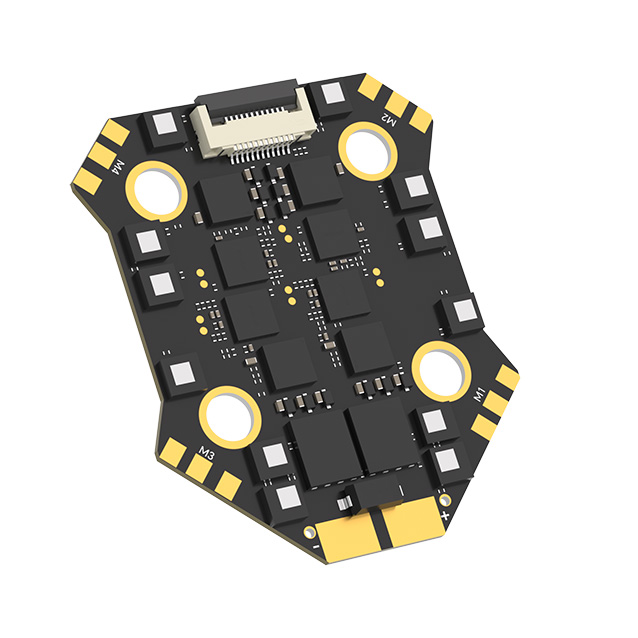

iFlight Borg 60 is a powerful ESC that can handle a current of up to 60A. It uses BlHeli_32 firmware with support for bidirectional DShot and variable PWM frequency. An interesting feature is the integrated anti-spark filter, which prevents spark jumps when connecting the battery to the copter. The ESC uses polymer capacitors and eliminates the need for an external electrolytic capacitor, making the overall build smaller and lighter.
Key Features
- Input voltage: 2–6S
- Max current: 60A
- Firmware: BL32 (32bit)
- MCU: STM32G071N
- Driver: FD6288
- Current sensor: Yes
- BEC: No
- Bidirectional DSHOT: Yes
- Telemetry: Yes
- Anti-spark filter: Integrated
- Integrated polymer capacitors: Yes
- Mounting pattern: 20×20 mm
- Dimensions: 42×35 mm
- Weight: 10.1 g
User Guides
Package Includes
- 1x Borg Mini 60 ESC
- 1x Cable set
- 4x Silicone softmount
