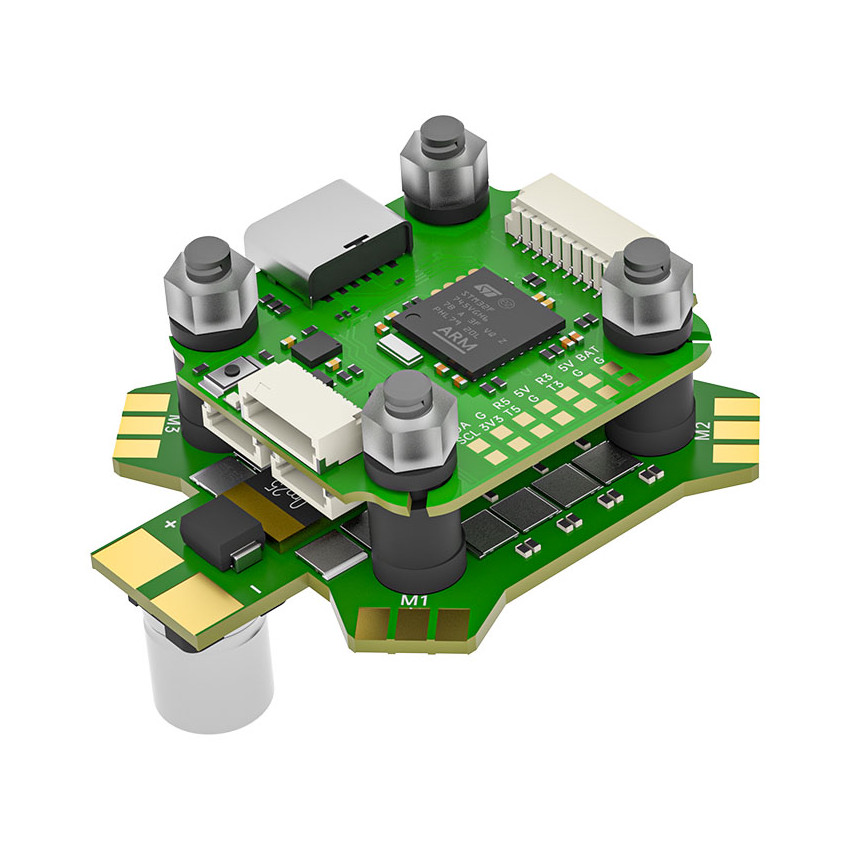

iFlight BLITZ Mini F745 + E55 BL32
The BLITZ Mini F745 + E55 BL32 is a combination of flight controller and powerful ESCs with 20x20mm hole spacing, suitable for smaller 3" and 5" classic drones powered by 3-6S batteries.
The iFligiht BLITZ Mini F745 is a high quality flight controller with a powerful STM32F745 processor that enables the board to support Betaflight, iNav and Ardupilot. It also features a gyro ICM42688, a barometer for measuring altitude DPS310 and 16MB memory for Blackbox. The board features six UARTs as well as an I2C bus. There is also a 5V and 9V BEC. Power can be supplied by 3-6S Lipo batteries.
The iFlight BLITZ Mini E55 ESCs can handle current up to 55A and use advanced BlHeli_32 firmware that supports telemetry, bidirectional dshot or variable PWM frequency. The ESC also includes a current sensor.
Key Features
- Input voltage: 3-6S Lipo
- MCU: STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- OSD: AT7456E
- Blackbox memory: 16MB
- Number of UARTs: 6
- Motor outputs: 4
- Mounting holes: 20*20mm
- BEC: 5V 2.5A / 9V 2A
- BF Firmware target: IFLIGHT_BLITZ_F7_AIO
- Ardupilot Firmware：arduplane_with_bl
- Maximum current: Yes
- Telemetry support
Package Includes
- 1x Flight controller
- 1x ESC
- 1x Cable set
