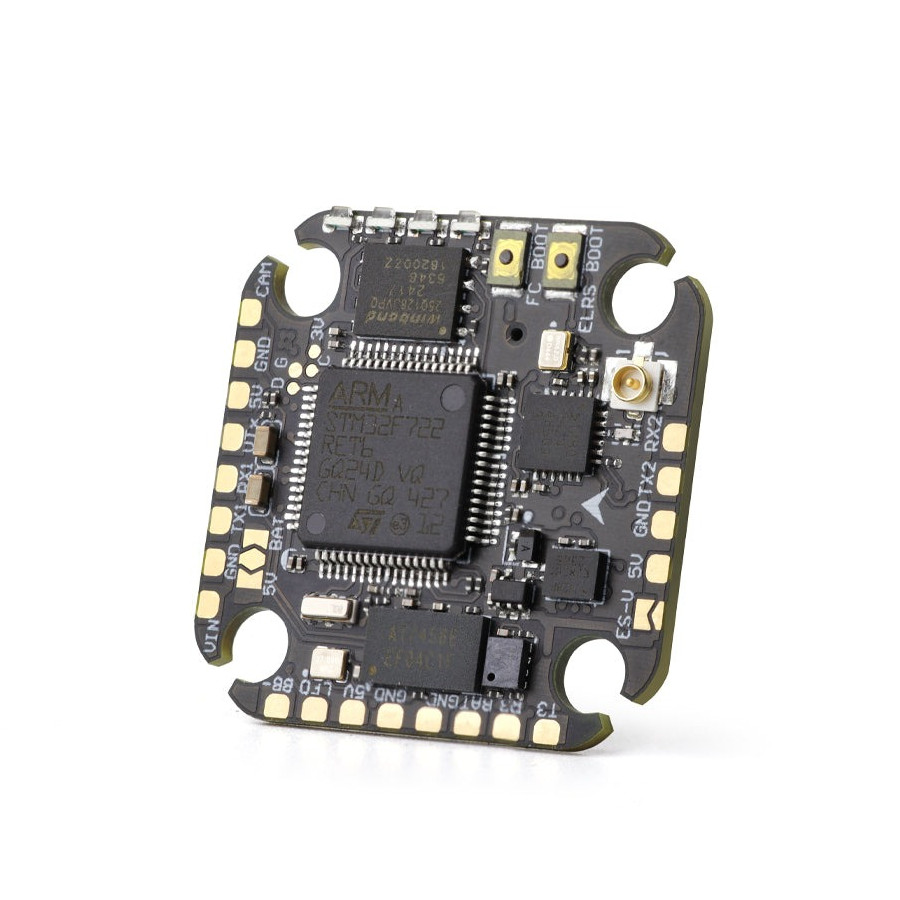

HGLRC Specter F722 Lite with ELRS

HGLRC SPECTER F722 Lite is a powerful flight controller with a mounting hole spacing of 20×20 mm. The integrated ELRS receiver operating at 2.4 GHz simplifies drone assembly. The flight controller saves weight and space, making it suitable for smaller 2–4" drones or racing 5" drones. For good RC signal reception, an external antenna is connected via an IPEX1 connector.

The core of the flight controller is the F7 processor with an ICM42688P gyroscope and a DPS310 barometer. The board also features a 5V/2A BEC, 16MB memory for blackbox, and an OSD chip for analog video.

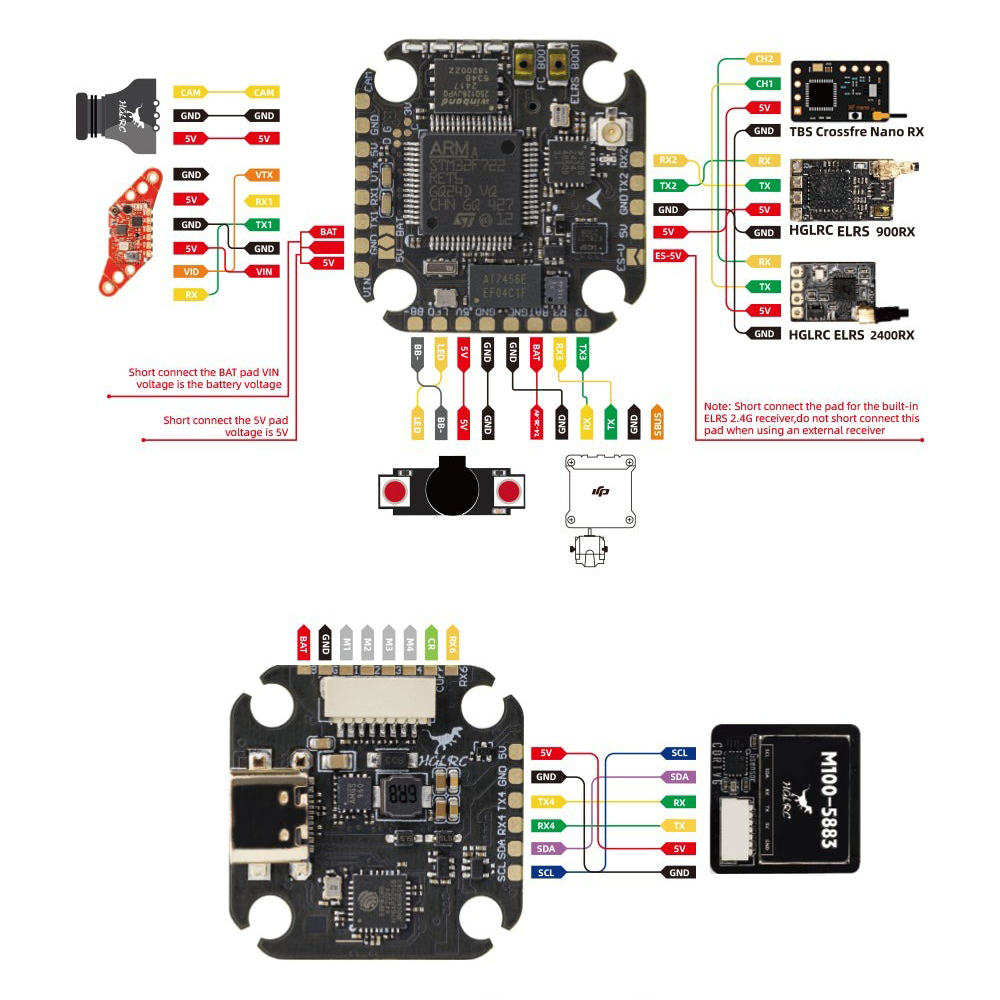

Wiring diagram
