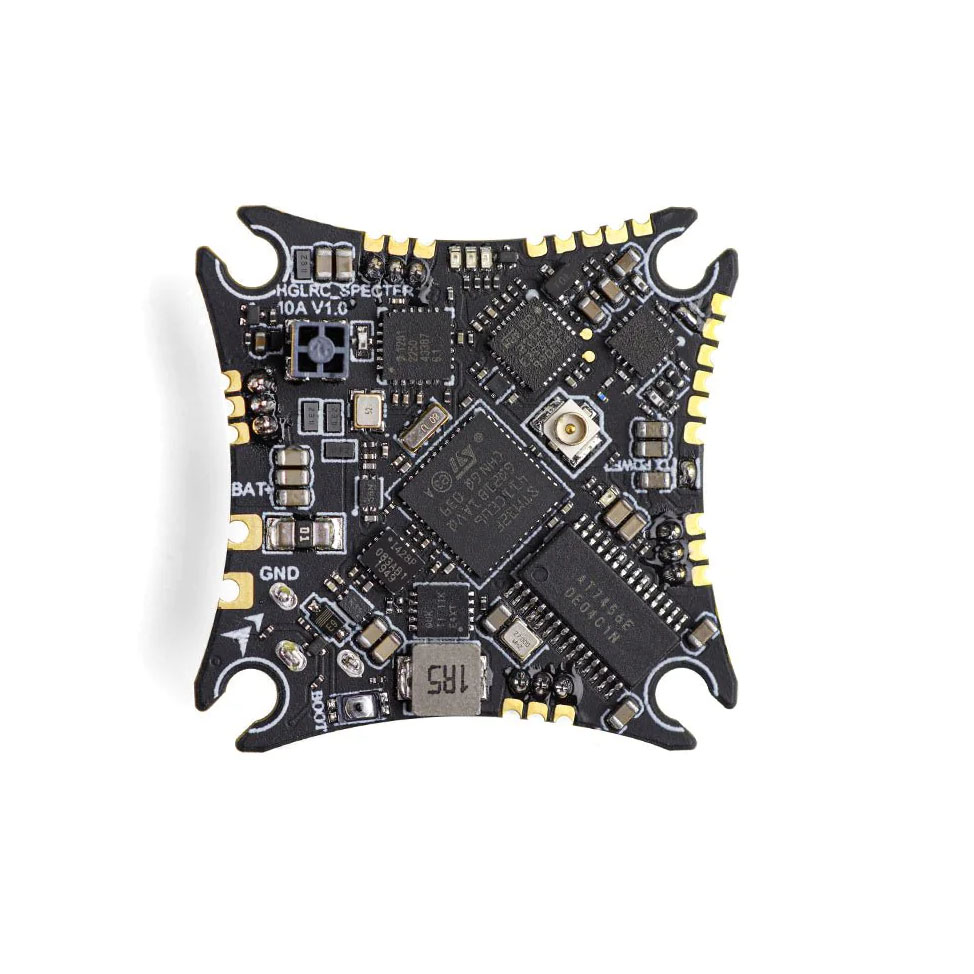

HGLRC Specter 1-2S 10A AIO (FC+ESC+RX+VTX) ELRS 2.4G

HGLRC Specter 10A AIO is a board designed for 1-2S Whoopy or Toothpicky. The board integrates the flight controller, ESCs , ELRS 2.4GHz SPI receiver and 400mW analog video transmitter. The board also includes 3-pin connectors for easy connection of motors.

The flight controller uses an F411 processor combined with an ICM42688 gyro. The ESCs support current up to 10A and use Bluejay firmware. The ELRS receiver is connected via SPI bus and uses an integrated ceramic antenna. The integrated video transmitter supports power up to 400mW. The antenna connects via a u.FL connector.

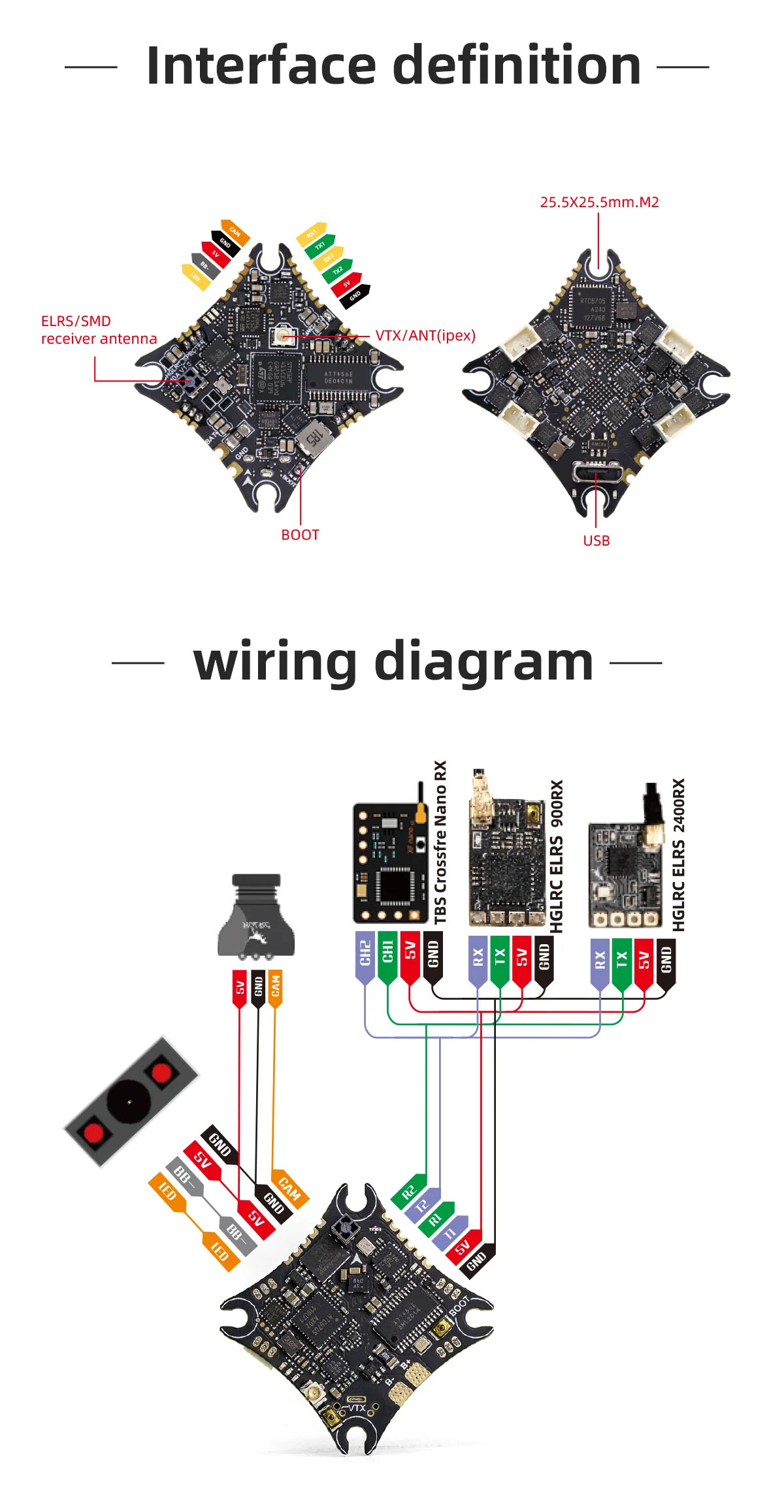

Wiring diagram
