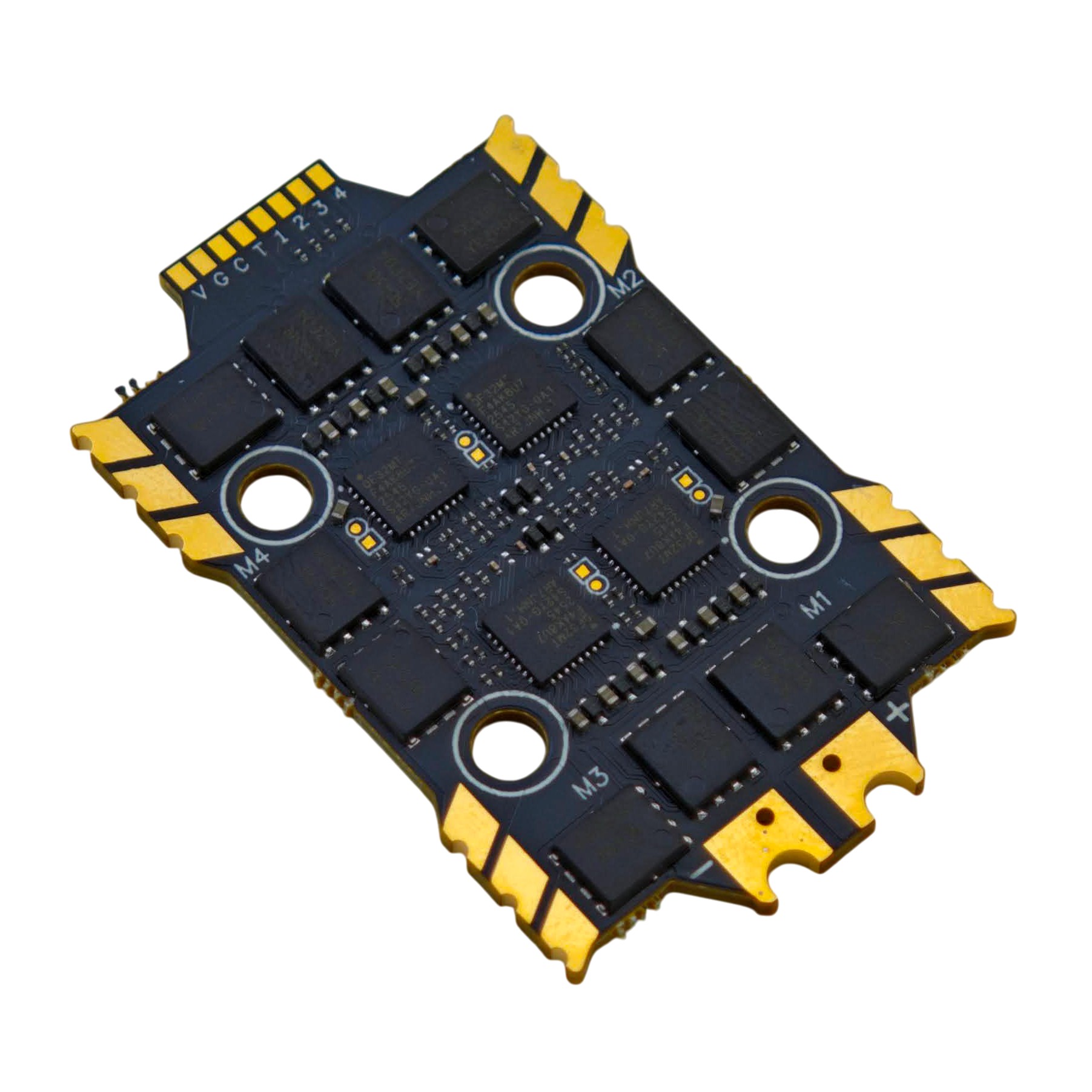

HGLRC 60A 4v1 6S BL32 Mini V1 is an ESC suitable for 5" - 6" freestyle and racing drones. The ESC handles currents up to 60A and supports 3-6S LiPo batteries.
The Mini version has a mounting pattern of 20×20 mm, and the board itself measures 52×33 mm. The larger board area provides space for robust MOSFETs and large solder pads at the corners of the board, making soldering thicker wires convenient while also improving heat dissipation.
The ESC uses 32-bit BLHeli_32 firmware and supports telemetry as well as bidirectional DShot.
Key Features
- Input voltage: 3-6S LiPo
- Current: 60A per channel
- Firmware: BLHeli_32
- Telemetry: Yes
- Current sensor: Yes
- Mounting holes: 20x20 mm
- Size: 52x33 mm
- Weight: 13 g
Package Includes
- 1x ESC
- 1x Cable set
- 1x Capacitor
- 1x XT60 connector with cable
