HGLRC L2 Micro
HGLRC L2 is a micro sized analog camera, suitable for use in freestyle drones. The camera offers an excellent price/performance ratio. Due to its compact size, the camera is better protected within the drone frame.
The camera utilizes a 1/2.9" CMOS sensor and offers a resolution of 1800TVL. It has a fixed aspect ratio of 16:9 and supports both PAL and NTSC standards. The camera features a lens with a focal length of 2.1mm with a field of view of 125° horizontally and 76° vertically. The camera supports Day/Night modes (Auto/Color/B&W/EXT). It can be powered in the range of 5-40V, but we recommend powering it from the 5V BEC of the flight controller.

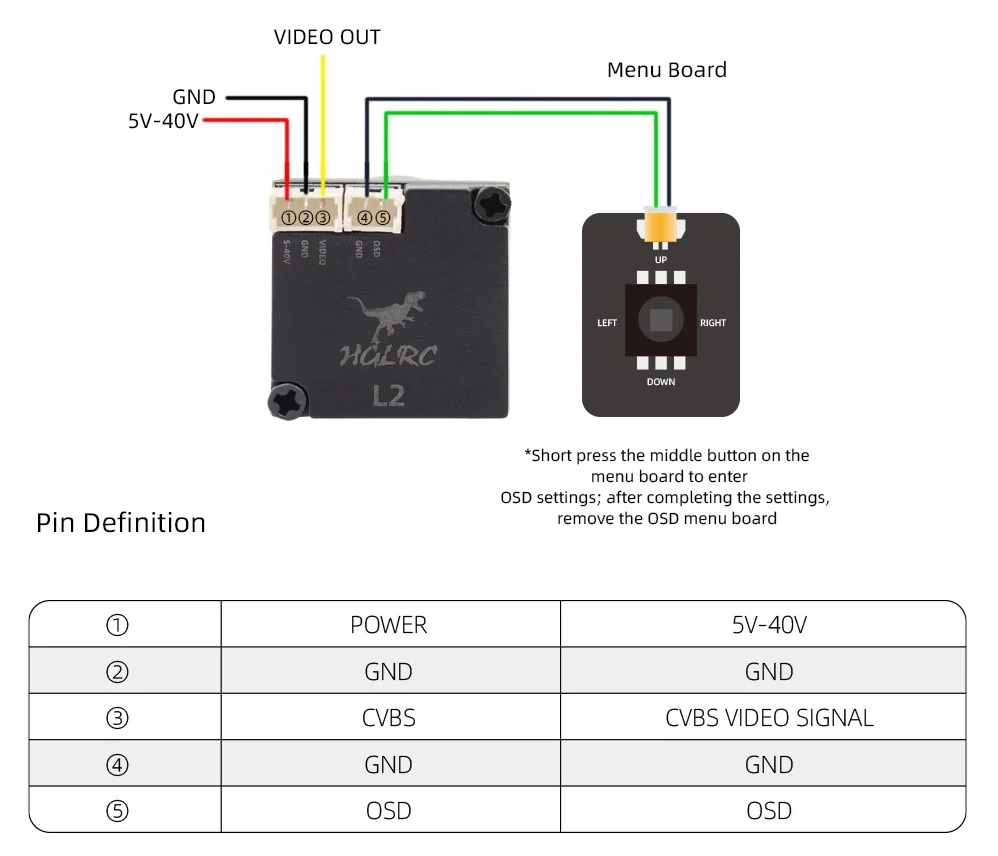

The controller for setting camera parameters is not included in the package.
Key Features
- Input voltage: 5-40V
- Sensor: 1/2.9" CMOS
- Aspect ratio: 16:9
- Standard: PAL/NTSC switchable
- Resolution: 1800TVL
- Light sensitivity: 0.01Lux
- Lens: 2.1mm F1.8
- FOV: H125° V76°
- WDR: Yes
- Size: 19x19x21 mm
- Weight: 6.8g
Package Includes
- 1x Camera
- 1x Accessory kit
