HGLRC F405 8S V1
In Stock
€ 35,59
HGLRC F405 8S V1 is a budget flight controller for freestyle and long-range FPV drones powered by 2–8S LiPo batteries. The board has a rich feature set for its price category.

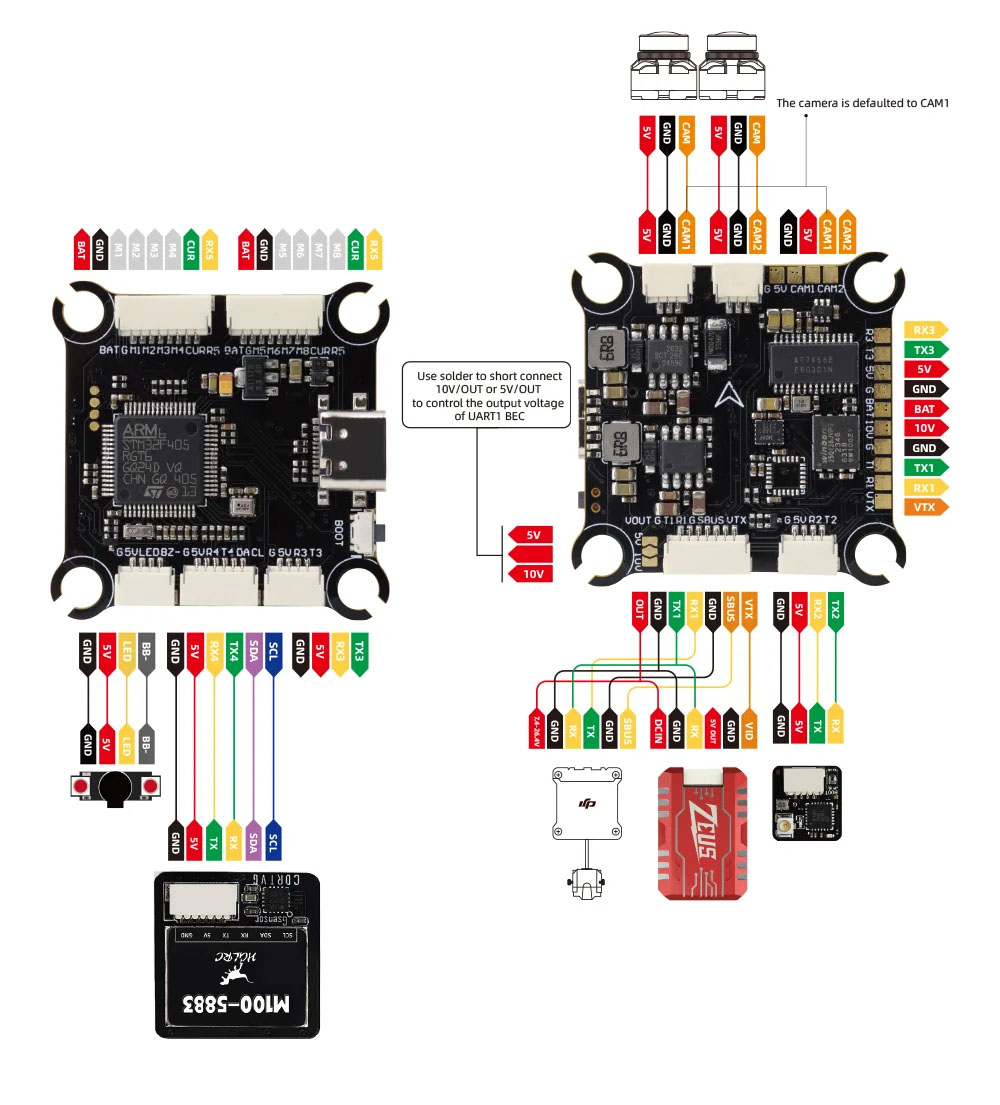

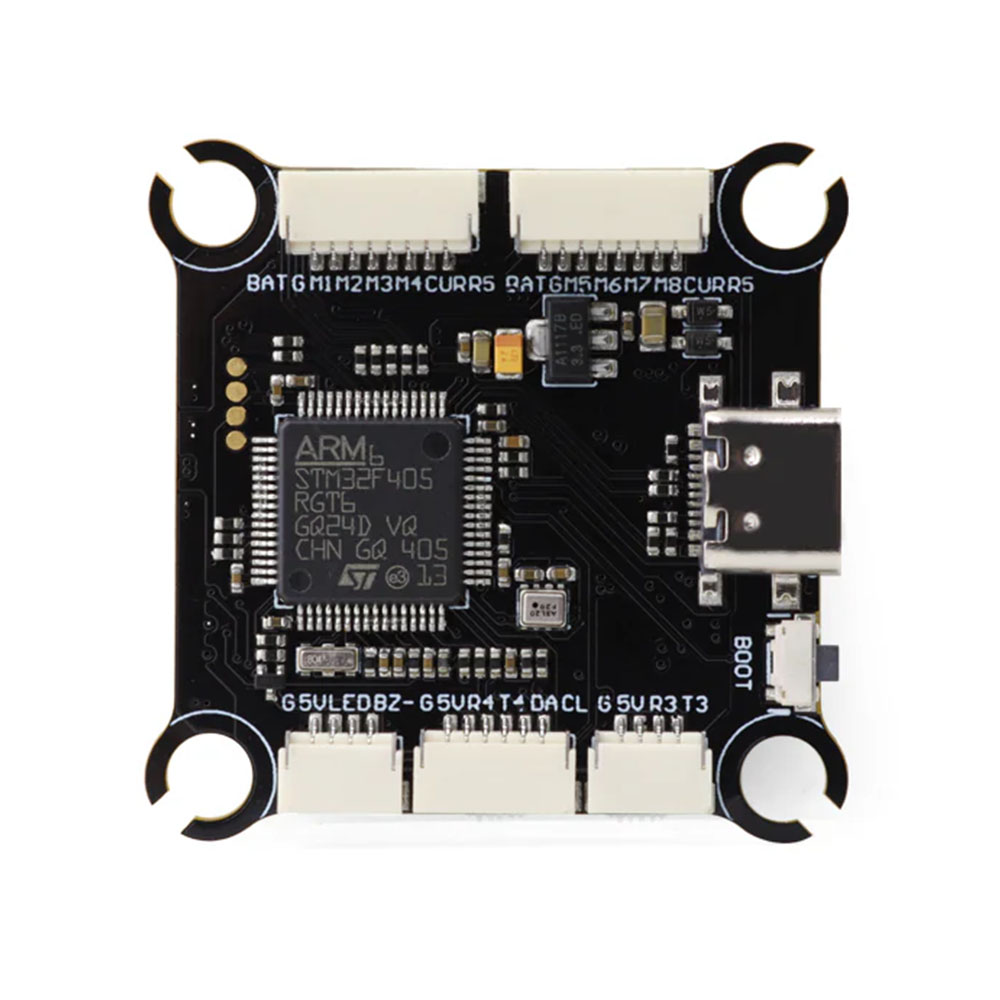

The core of the flight controller is the F405 microprocessor complemented by the ICM42688P gyro. The board also includes a barometer for altitude measurement and 16MB of memory for blackbox. An advantage is the ability to connect up to 8 motors and two cameras, which can be switched between. The board is equipped with connectors for easy wiring without soldering.
Key Features
- Input voltage: 7.4–33.6 V (2–8S LiPo)
- Mounting holes: 30.5 × 30.5 mm (M3)
- Processor (MCU): STM32F405
- Gyroscope: ICM42688P
- OSD: AT7456E
- Barometer: SPL06-001
- Blackbox: 16 MB
- UART ports: 5
- Number of PWM outputs: 8
- Number of camera inputs: 2
- Firmware: HGLRCF405V2
- Dimensions: 36.3 × 36.3 mm
- Weight: 9.5 g
User Guides
Package Includes
- 1× Flight controller
- 1× Cable set
- 4× Softmounts
