HGLRC A2 Pro Air Unit

HGLRC Draco A2 Pro is a camera with video transmitter compatible with the ArtLynk system. ArtLynk is an open digital HD video transmission system for FPV. Thanks to the common standard, flight units, FPV goggles, and receiver modules from different manufacturers are mutually compatible. The system includes brands such as BetaFPV, HGLRC, SkyZone or TJRC. ArtLynk transmits video in 1080p at 60fps with latency around 60ms and, compared to analog transmission, offers a significantly cleaner and more stable image. It is a cost-effective alternative to DJI and Walksnail for pilots who want HD quality without the closed ecosystem of a single brand.

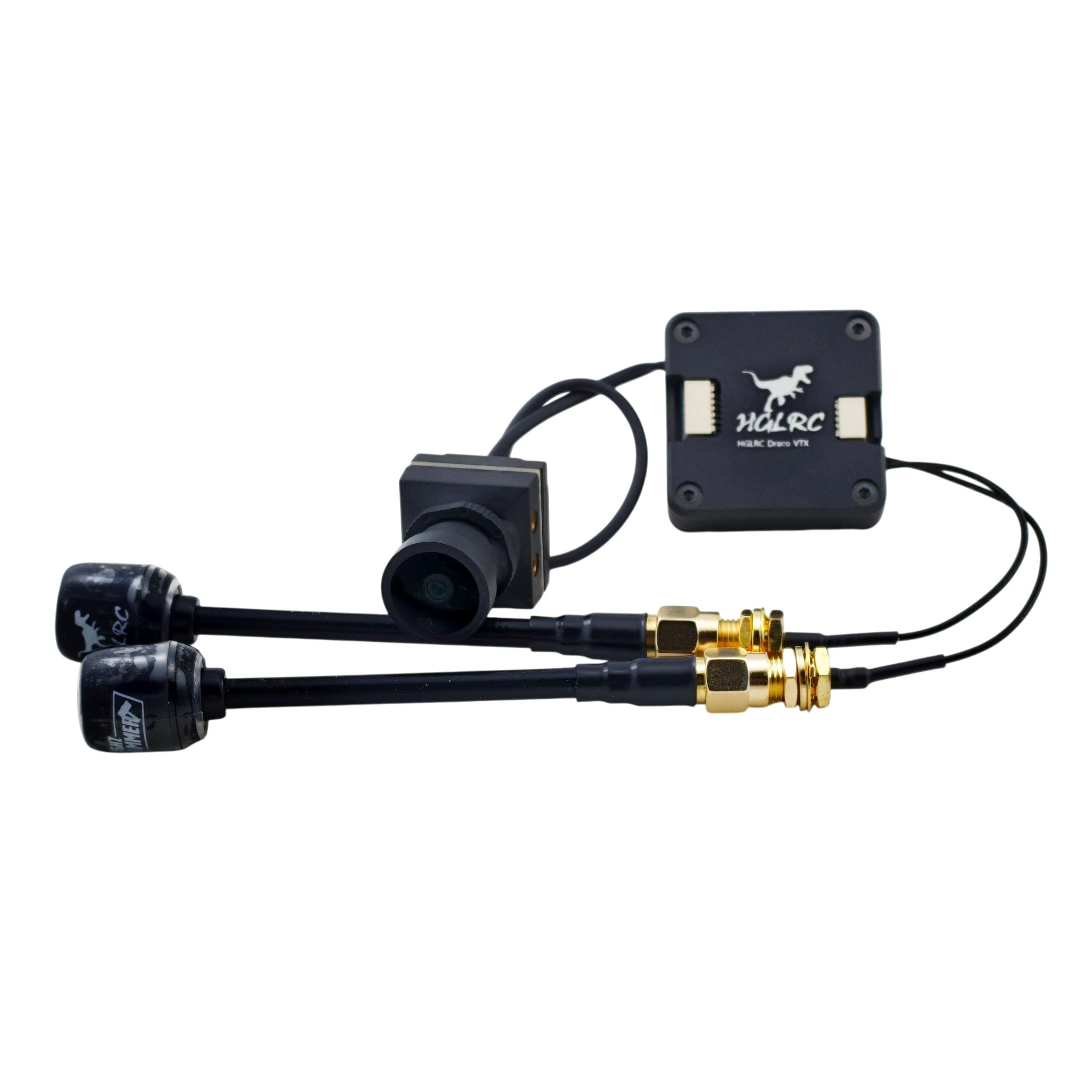

HGLRC Draco A2 Pro unit is suitable for 5″ freestyle drones and 7″ long-range drones. It is equipped with a Micro-sized camera (19mm). The camera has a 1/1.8" CMOS sensor and FOV 160°. Thanks to the large chip, the camera is also suitable for use in low-light conditions. The video transmitter with up to 1W (<33dBm) output is enclosed in an aluminum heatsink. For easy mounting in the frame, it is equipped with mounting holes with 20x20mm and 25,5x25,5mm spacing. Two antennas are connected to the video transmitter via a u.FL connector. 7 cm RP-SMA pigtails are already installed on the video transmitter. The package includes two LHCP omnidirectional antennas with RP-SMA connector. The video transmitter has connectors for connection to the flight controller without soldering. Power supply is possible in the range of 8-30V (2-6S Lipo).

Download firmware here
