Heewing T2 Cruza VTOL PNP

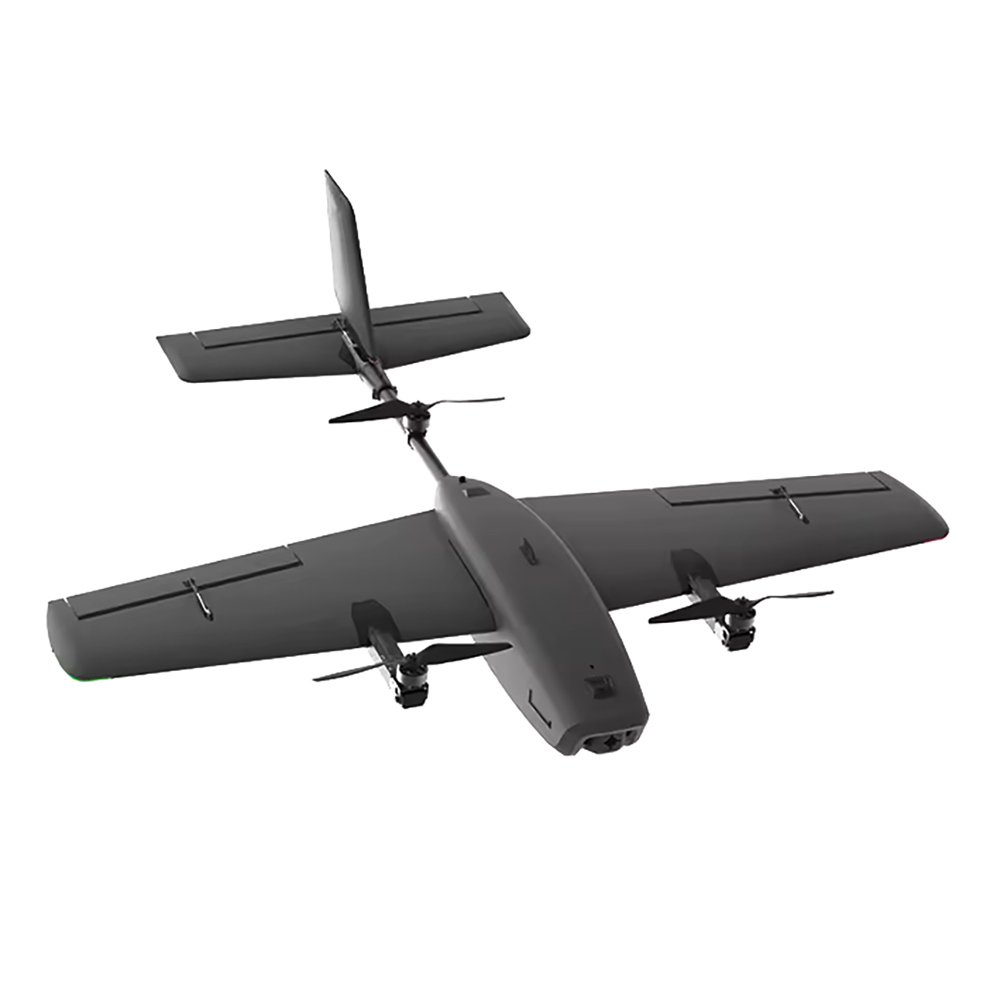

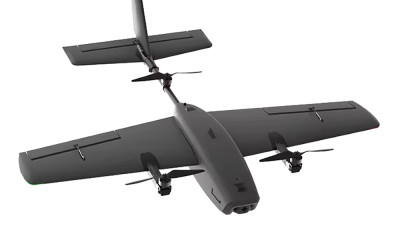

Heewing T2 Cruza VTOL is a larger FPV aircraft with a wingspan of 1200 mm with VTOL capability. The aircraft is based on the T2 Cruza and adds a fully integrated vertical takeoff and landing. The model comes in a sturdy EPP transport case with precisely cut compartments, making it easy to transport and assemble within minutes. Due to its modular design, it is suitable for pilots who want the benefits of VTOL without complicated setup and programming.

All VTOL components are factory installed and programmed. The wings feature foldable motors with tilting servos, the central fuselage has the main drive motor in a metal tail boom, and there are servos for the elevator and rudder in the tail section. Inside the fuselage, there is a FX-F405 flight controller with ArduPilot, power board, BEC, and complete wiring. The wings, tail, and tail boom connect using quick connectors, without the need for soldering and complicated wiring.

There is enough space in the fuselage for a larger 6S LiPo or Li-ion battery. The nose has space for an FPV system. The model can be easily disassembled for transportation, with removable wings and elevator.

T2 Cruza VTOL takes off and lands vertically in helicopter mode, then smoothly transitions into forward flight like a conventional wing. Transitions between modes are factory-tuned. The model is designed for long flights with high efficiency.

The model comes as PNP - the package includes motors, ESCs, and servos. The electronics are already installed. You need to add an RC receiver and optionally FPV equipment.

We recommend watching the video below.

Ardupilot parameters
