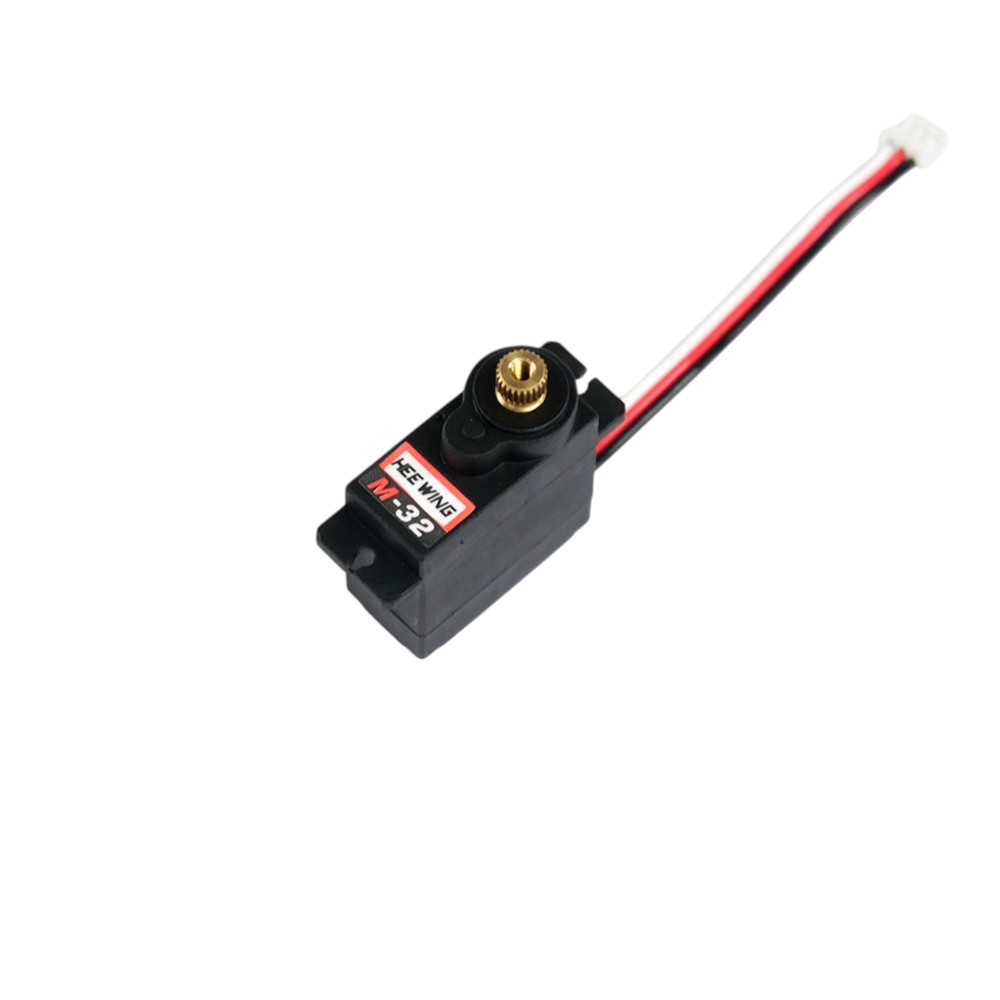

Heewing M32 Digital Servo 13.5g/0.11s/2.7kg

Heewing M32 Digital Servo is a digital micro servo with metal gears, supplied by the manufacturer as an original replacement part for the HEEWING T2 Cruza airplane. In the airplane, it controls the ailerons, rudder and elevator. The PNP version is fitted with four units, and the same servo is also used in the T2 Cruza VTOL.

It is powered by 4.8-6V. At 6V, it delivers 2.7kg-cm of torque and a speed of 0.11s/60°. Metal gears withstand impacts on control surfaces during hard landings better than plastic gears. It operates at a frequency of 333Hz with a 1500uS center. The cable is only 50mm long and ends with a 3-pin connector with 2.54mm pitch and JR wiring. A servo extension cable is required for longer runs.
