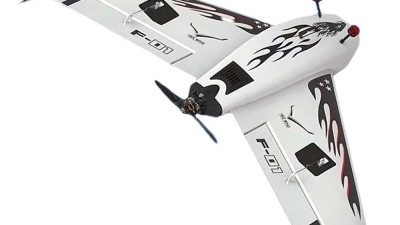

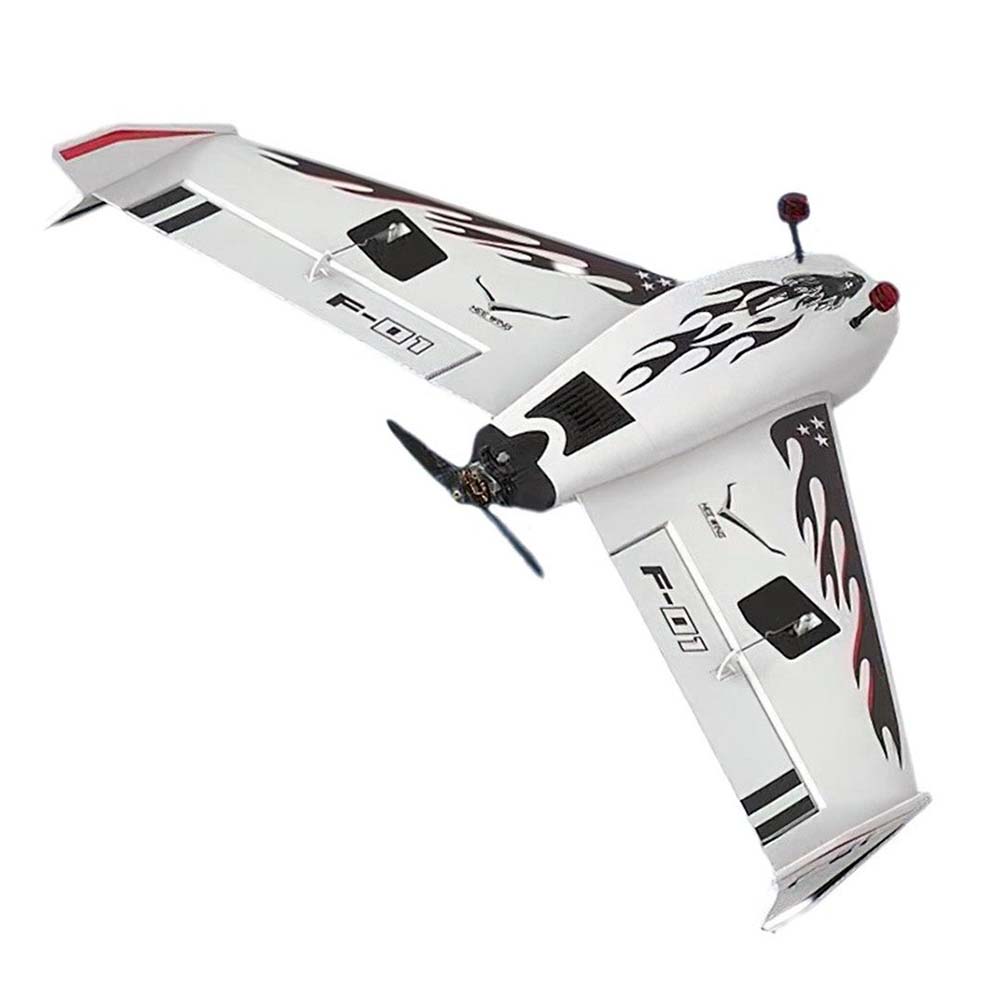

HEE Wing F01 is a compact FPV wing with a wingspan of 690 mm, suitable for recreational flying with an FPV camera. The construction is made of durable EPP material with plastic parts and carbon reinforcements, making the wing sturdy and easily repairable. Removable wings facilitate transport and the center section offers ample space for electronics — flight controller, RC receiver, ESC, and more. The front section allows for the installation of both analog and digital video transmission.
The model can be built as a fast wing with a flight speed over 200 km/h, or as a lighter wing with a smaller battery for more relaxed flying. The minimum speed is around 27 km/h. There is space for ESC, receiver, GPS module, and standard 9g servos. The cover of the central section is held by magnets. To prolong lifespan, the leading edges can be reinforced with laminating film or tape. At speeds over 100 km/h, it is advisable to use a lens cap to prevent airflow into the fuselage. For long flight times, a 18650 Li-ion pack can also be used.
We recommend watching the video below.
The model comes as a KIT — it is just the EPP airframe without motors, servos, and additional electronics. Recommended parts: motor size 2205–2207, ESC 25A+, 2× 9g servos, and 5-6" propellers.
Key Features
- Wingspan: 690 mm
- Height: 88mm
- Length: 415mm
- Weight: 190g airframe
- Flight weight: 350–850g depending on configuration
- Material: EPP / ABS / Carbon
- Battery space: 175×75×55 mm
- ESC space: 70×38×20 mm
- Camera space: 20×21×30 mm
- Stall speed: < 27 km/h
- Maximum flight time: > 70min (depending on configuration)
- Minimum thrust: ≥920g
- Recommended batteries: 100-250g
User Guides
Package Includes
- 1× F01 KIT
- 1× Accessory kit (VTX mounts, battery strap, small hardware)
