Heewing F01 PNP

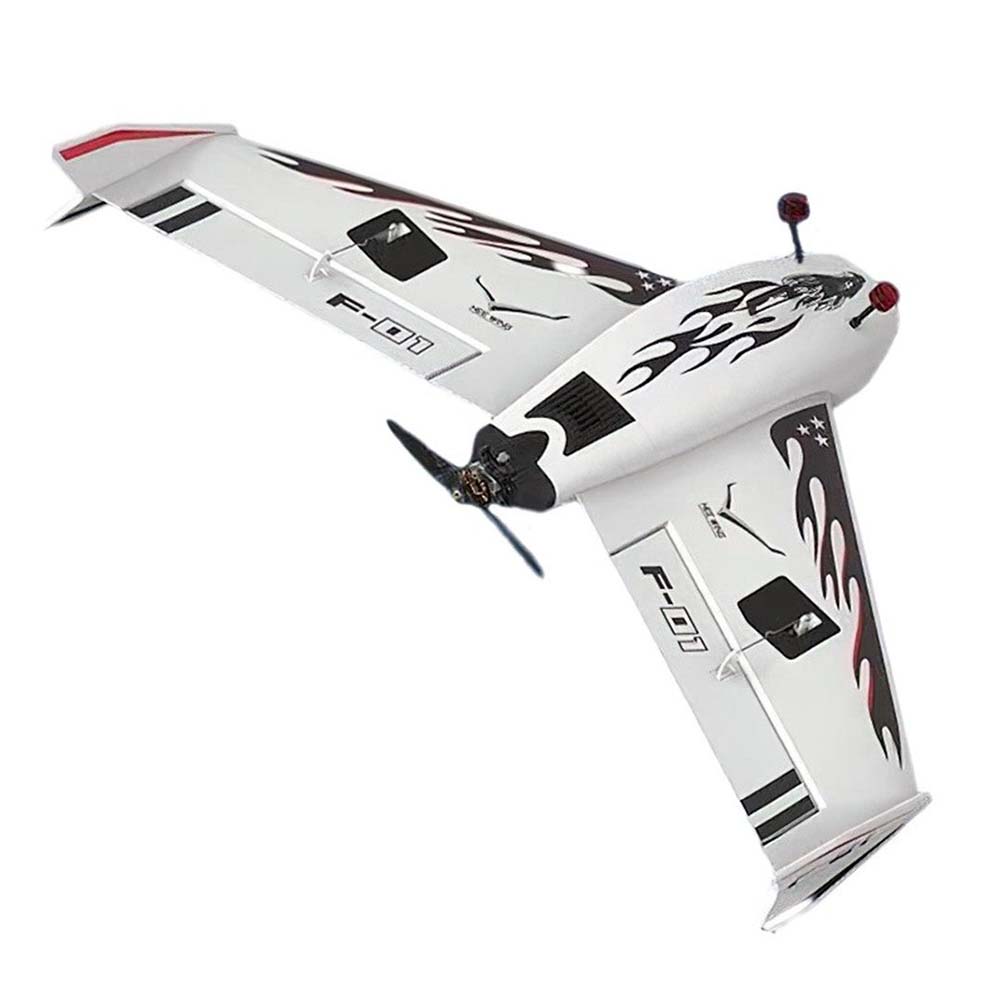

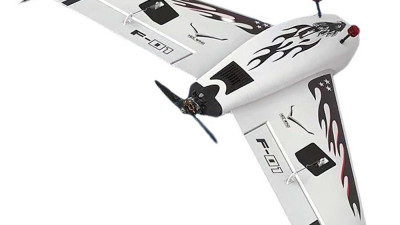

Heewing F01 is a compact FPV wing with a span of 690 mm, suitable for recreational flying with an FPV camera. The construction is made of durable EPP material with plastic elements and carbon reinforcements, making the wing sturdy yet easily repairable. Removable wings facilitate transport, and the center section provides ample space for electronics – flight controller, RC receiver, ESC, and more. The front section allows for the installation of both analog and digital video transmission.

The model can be used as a fast wing with a flight speed exceeding 200 km/h using a 4S battery, or as a lighter wing with a smaller 3S battery for calmer flying. The minimum speed is around 27 km/h. There is space for the ESC, receiver, GPS module, and standard 9g servos. The cover of the center section is held by magnets. For extended longevity, the leading edges can be reinforced with laminating film or tape. At speeds above 100 km/h, it is advisable to use a lens cover to prevent airflow into the fuselage. For long flight times, a 18650 Li-ion pack can also be utilized.

We recommend watching the video below.

The model is available as PNP  — it is an EPP wing with a 2207 1960Kv motor, 25A ESC with BlHeli_S firmware, 5V/3A BEC, 5x5E propeller, and 2x 12g digital servo. Electronics are not pre-installed. PNP kit does not include an RC receiver, flight controller, battery, or FPV transmission.
