HDZero Whoop V2 Kit

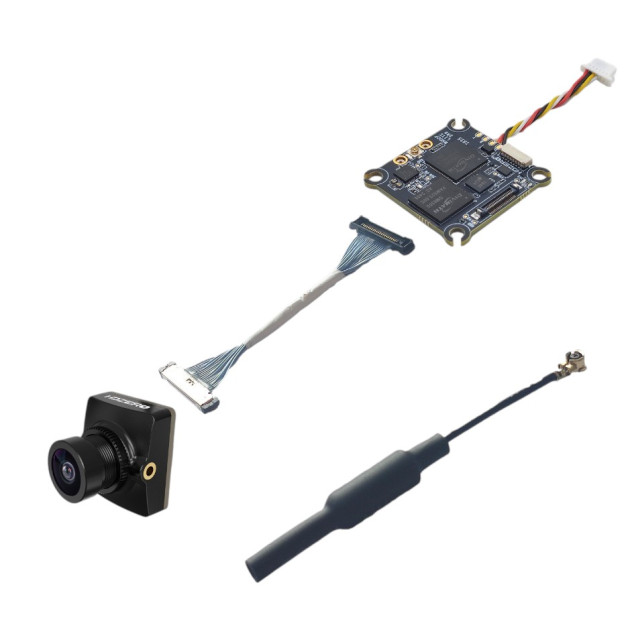

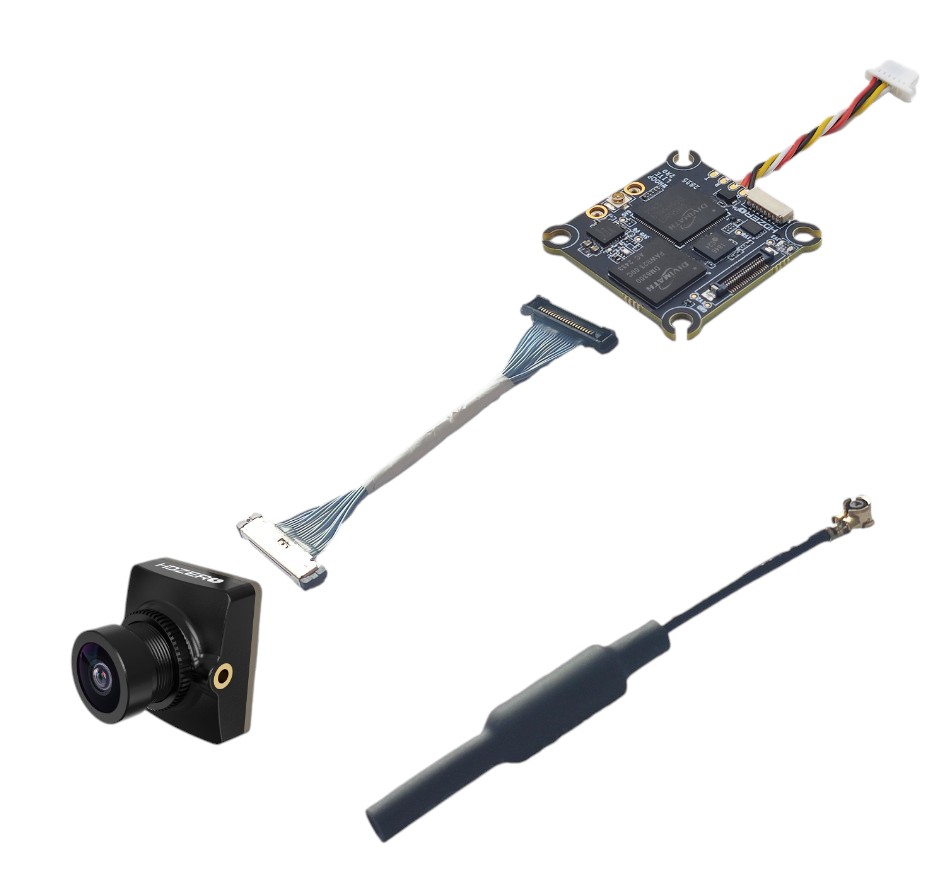

HDZero Whoop V2 Kit is a combination of camera, video transmitter, linear antenna, and 40mm connecting MIPI cable. The kit contains everything necessary for installation on a drone.

HDZero Nano V3 is a digital FPV camera in a Nano size. It is a cost-effective alternative to the HDZero Nano 90 cameras if you do not require the 90fps mode. The camera has an adjustable aspect ratio of 4:3 (ideal), "16:9 cut" and "16:9 full" with a large FOV, but with vignetting in the corners. The camera uses a sensor size of 1/2" with a resolution of 720p at 60 frames per second. The camera in 4:3 mode provides a field of view of 155° diagonally, 126° horizontally, and 94° vertically. The dimensions of the camera are 14x14x16mm.

Whoop VTX is the second generation of the digital transmitter in the HDZero system for whoops and smaller drones. It builds on Whoop Lite but addresses its weaknesses. It has a more durable construction, more reliable antenna mounting, and easier installation. The transmitter supports all HDZero MIPI cameras and modes 540p90, 720p60, and 1080p30. It operates in the 5.8 GHz band with a power of up to 200mW and maintains very low latency and a clear image, even during fast flight. Compared to the previous version, the Whoop V2 has a sturdier PCB that better withstands impacts. The U.FL connector is mechanically secured against antenna disconnection. The connector and cable for connecting to the flight controller are according to the Betaflight standard, greatly simplifying the wiring without soldering. The dimensions are 31x31 mm and the mounting holes are 25.5x25.5 mm, allowing use on a large number of different drones. Power can be supplied in the range of 1–3S (3–12.6V). An external capacitor is recommended when powered by a 3S battery. The weight of the transmitter is approximately 5.4 g including cables.
