HDZero Analog/HDZero Adapter

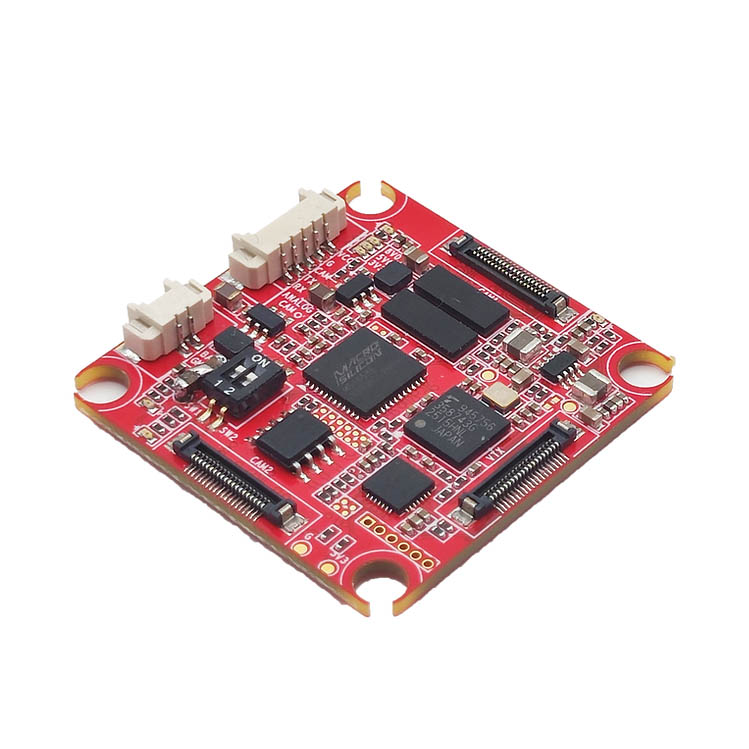

Analog / HDZero Camera Adapter converts the analog CVBS NTSC signal to a digital MIPI format compatible with HDZero video transmitters. The adapter also functions as a 3 camera switch — supporting two digital MIPI cameras and one analog. Switching can be controlled via dip switches on the board or software through Betaflight (modes Cam1 / Cam2 / Cam3). The adapter is suitable for setups combining analog and digital cameras within the HDZero ecosystem. Mounting holes are spaced at 30.5x30.5mm. Output voltage for the analog copter can be set to 3.3V, 5V, or 8V using switches.

Requires HDZero VTX firmware version 1.7.1 or higher. Analog cameras must transmit in CVBS NTSC.
