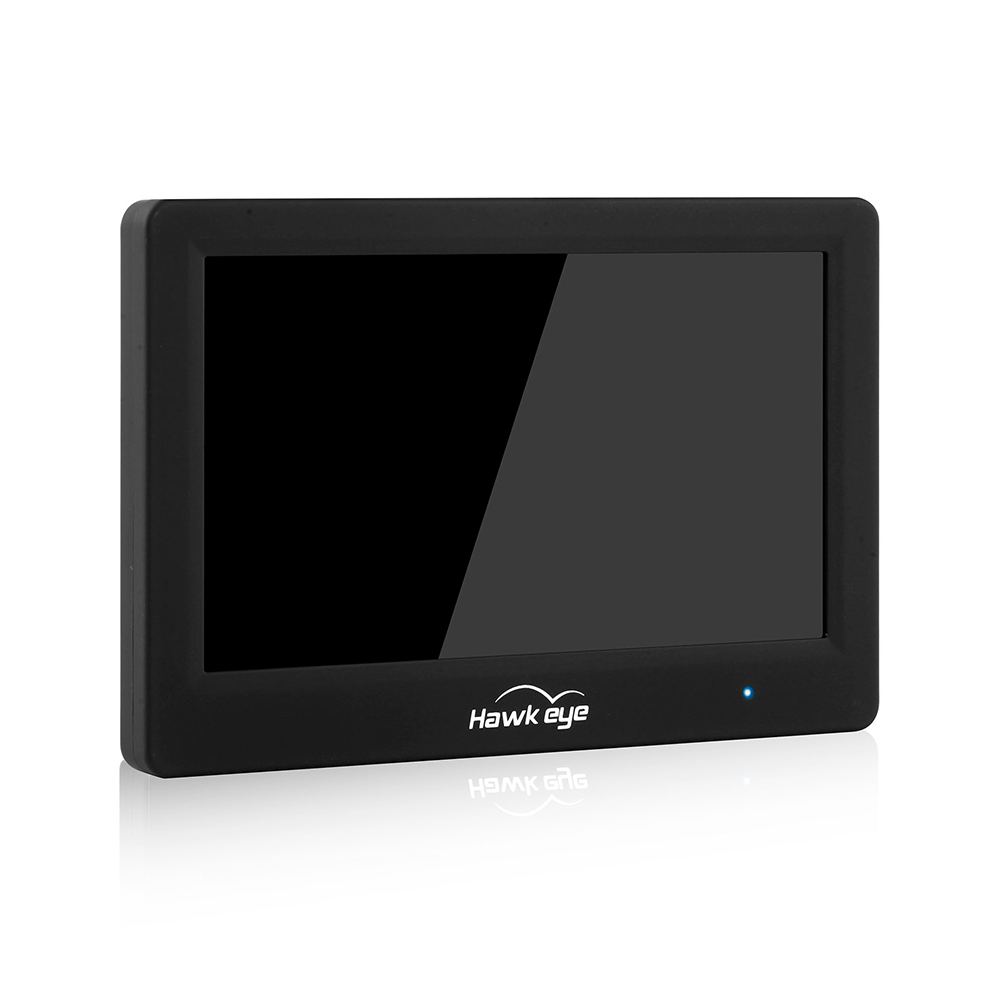

Hawkeye Sharp Vision 2 is a 7" FPV monitor with rich features. It includes an integrated diversity analog receiver that supports a wide range of channels in the frequency range of 4.9-6GHz.
The monitor also features HDMI input for digital video, a 3.5mm Jack for both input and output of analog video signal and audio, as well as a small speaker. The monitor has a DVR function that allows incoming video to be recorded to an SD card. There is no integrated battery. Power can be supplied via an XT60 connector with a voltage range of 10-26V (3-6S LiPo). At the bottom, the monitor has a 1/4" tripod thread for easy mounting. The display resolution is 1024x600 pixels with an aspect ratio of 4:3.
Key Features
- Power: 3–6S LiPo (XT60)
- Display: 7″ LCD 1000Lux
- Resolution: 1024x600px
- Antenna connector: SMA
- Frequency: 4.9-6GHz
- Number of channels: 96
- Receiver sensitivity: −99 dB
- DVR: Yes
- Card: MicroSD Max 64GB
- Inputs: HDMI, AV
- Outputs: AV, audio
- Size: 183x122x30mm
User Guides
Package Includes
- 1x Display
- 1x AV cable
- 2x Linear dipole antenna
- 2x LiPo strap
