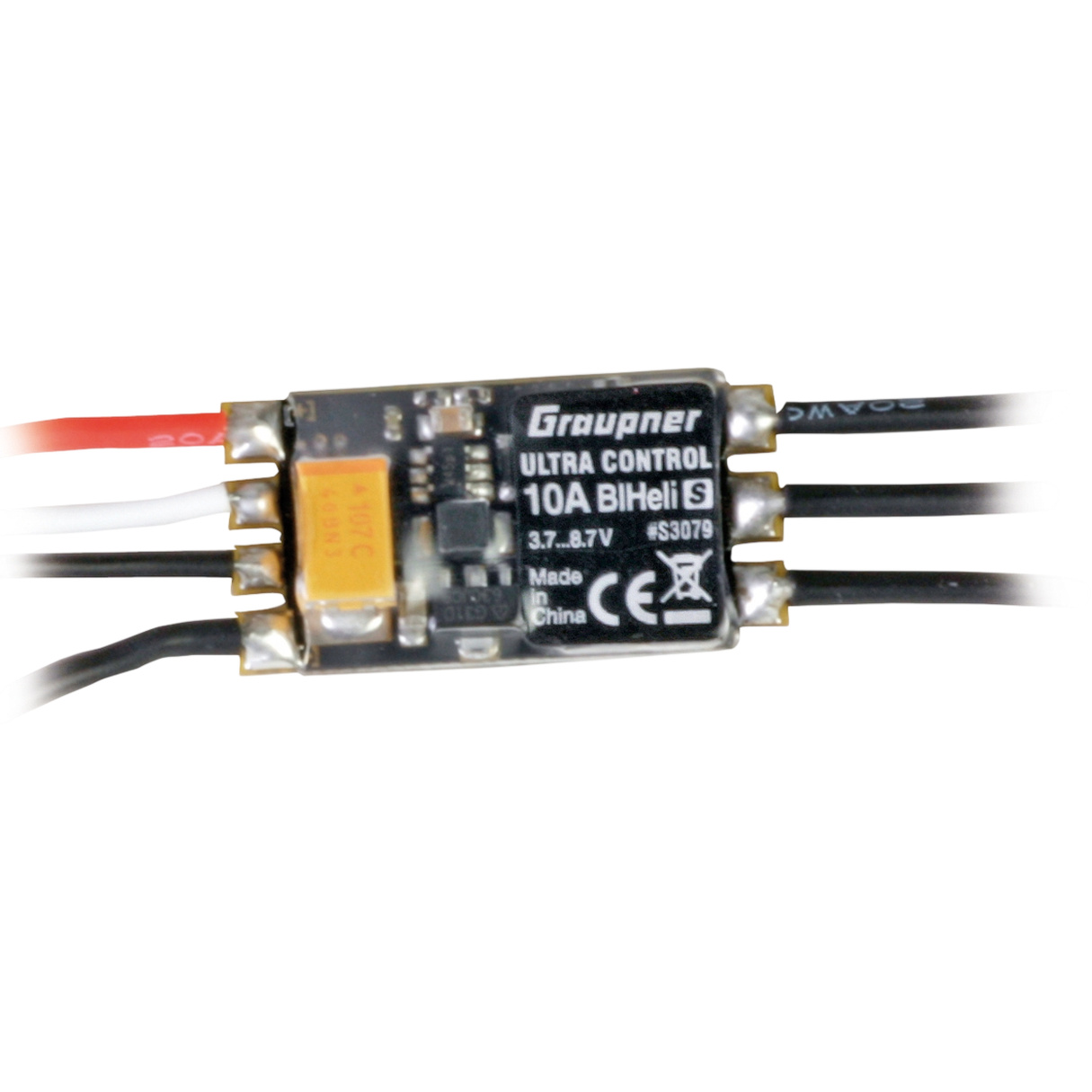

Graupner Ultra Control 10A 1-2S BLS
In Stock
€ 3,99
Graupner Ultra Control 10A 1-2S BLHeli_S is a small and lightweight ESC without BEC. The ESC is suitable for smaller RC airplane models. It supports 1-2S LiPo batteries (3,7-8,7V) and can handle up to 10A. With dimensions of 27x14x7mm, it weighs only 2g without wires and 6g with wires.
The ESC is equipped with a Silabs processor and uses open-source BLHeli_S firmware. It recognizes standard PWM signals from the receiver as well as DShot protocols. Settings are configured via a computer using the BLHeliSuite configurator; a USB adapter or flight controller is required for connection to a PC.
Key Features
- Input voltage: 1-2S LiPo (3,7-8,7V)
- Continuous current: 10A
- Firmware: BLHeli_S
- BEC: No
- MCU: Silabs 50MHz
- Input protocol: PWM, OneShot, Multishot, DShot150/300/600
- MOSFETs: DFN 3,3x3,3mm
- Capacitors: Ceramic and tantalum (on board)
- Overvoltage protection: TVS diode
- Power connector: No connector (tinned wires)
- Receiver cable: 100mm (pre-installed)
- Size: 27x14x7mm
- Weight: 6g (with wires) / 2g (without wires)
Package Includes
- 1x ESC
