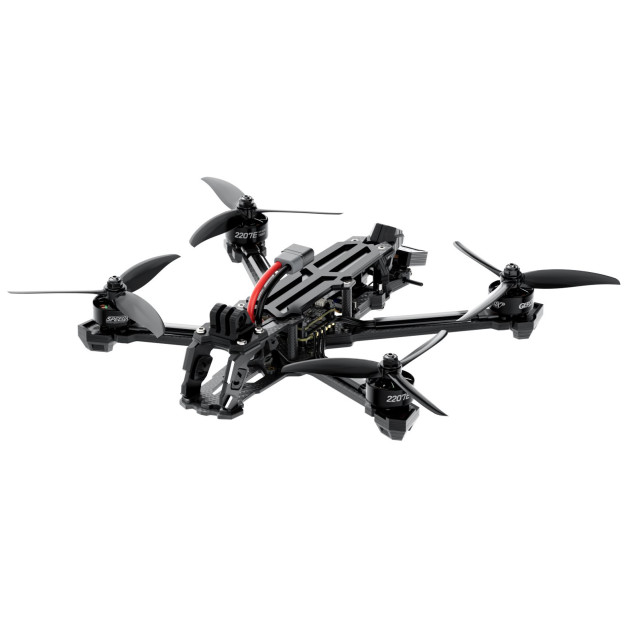

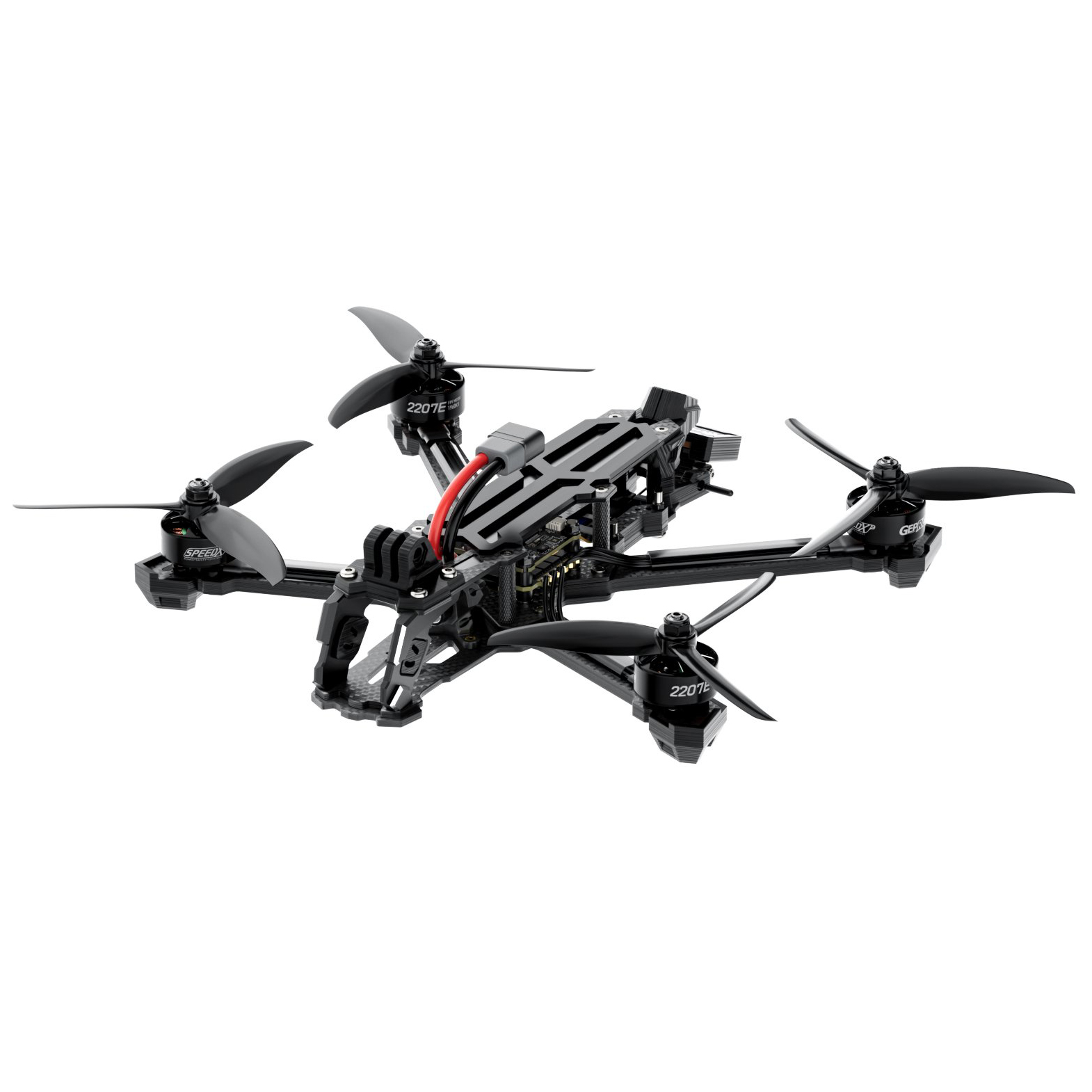

GEPRC Vapor D5 WTFPV - 6S ELRS with GPS

GEPRC Vapor - D5 WTFPV is a built 5" freestyle drone that comes without an FPV system – you choose and add the camera and video transmitter (analog and digital) yourself. The frame is not compatible with DJI O4 Pro. Vapor D5 is in the Deadcat configuration, where the front arms are shifted further back and outward. This means the distracting propeller edges are not visible in the camera, which is especially important if you use the FPV camera for filming as well. The frame uses 5 mm thick arms. The arms are mounted with two screws, so their replacement in case of damage is very easy. The FPV camera is protected by aluminum side plates, which protect the camera in a crash.

The heart of the drone is the GEP-F722-HD v2 flight controller with STM32F722 processor, ICM42688-P gyro and BMP280 barometer. For analog transmission, Betaflight OSD (AT7456E) is ready, and thanks to the HD designation the board is also equipped with a connector for digital FPV systems. Power is handled by TAKER H60_BLS 60A 4in1 ESCs with BlHeli_S firmware in combination with GEPRC SPEEDX2 2207E 1960KV motors and Gemfan 5136 propellers. Power is routed through an XT60 connector.

This version is equipped with a GEPRC ELRS24 receiver on 2.4 GHz and a GEP-M10 GPS module, which enables features such as return-to-home or position logging.

6S LiPo batteries with a capacity of 1200 - 1600 mAh are recommended.
