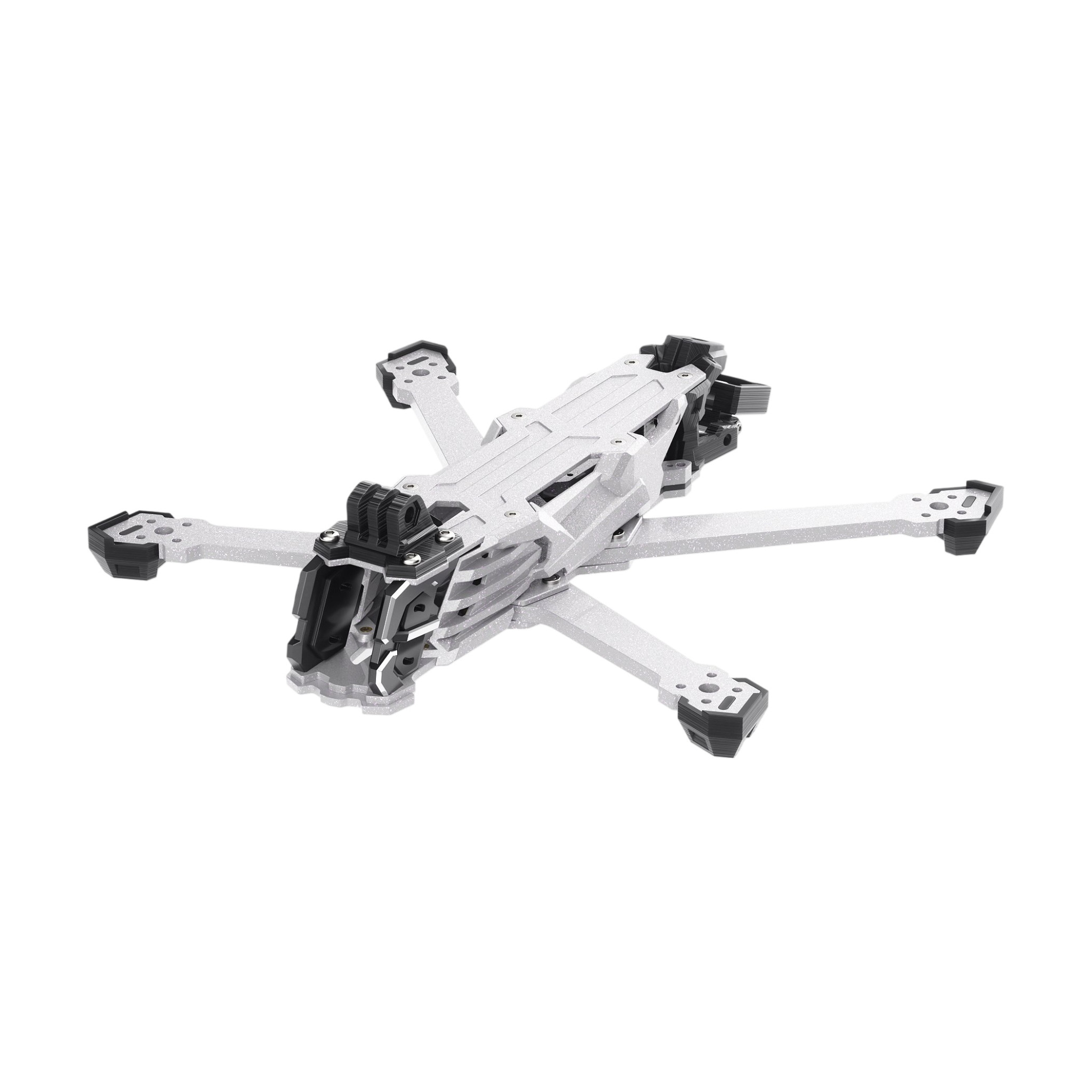

GEPRC Vapor D5 O4 Pro holographic white

GEPRC Vapor D5 O4 Pro holographic white is a 5" frame suitable for freestyle and filming, designed specifically for the DJI O4 Air Unit Pro or Walksnail Avatar digital video transmission systems. The frame features a Deadcat arm configuration: the front arms are positioned further back and to the sides, preventing propeller edges from appearing in the camera view. This is especially appreciated by pilots recording 4K video with the O4 Pro unit who want a clean image. Compared to the Vapor X5 frame, it differs in its arm layout and slightly larger 238.4 mm motor-to-motor diagonal distance.

The holographic white version retains the proven construction of the Vapor series. It also features a chameleon-effect finish that changes colour depending on the viewing angle. The surface is protected by a hard clear coat.

The arms are cut from 5 mm carbon fibre, ensuring high rigidity of the entire structure. They use a quick-release design for easy replacement during maintenance. The bottom plate is made of 2.5 mm carbon fibre, while the middle and top plates are made of 2 mm carbon fibre. The camera is mounted in an aluminium bracket with silicone anti-vibration inserts that dampen motor resonance and contribute to sharper footage. In a crash, the camera is protected by aluminium side plates together with the front carbon extension („front lip“). The electronics inside the frame are covered by removable plastic side plates, which also prevent dirt from entering.

Mounting holes for 20x20 mm and 30.5x30.5 mm electronics are provided. The video transmitter mounts at the rear of the frame with 20x20 mm, 25x25 mm or 30.5x30.5 mm mounting patterns. Motors mount using 16x16 mm mounting holes. The aluminium bracket accommodates a camera with a width of 19 mm or 20 mm. The rear antenna mount is designed for both original O4 Pro antennas and SMA adapters. The DJI O4 Air Unit Pro and other electronics are not included.
