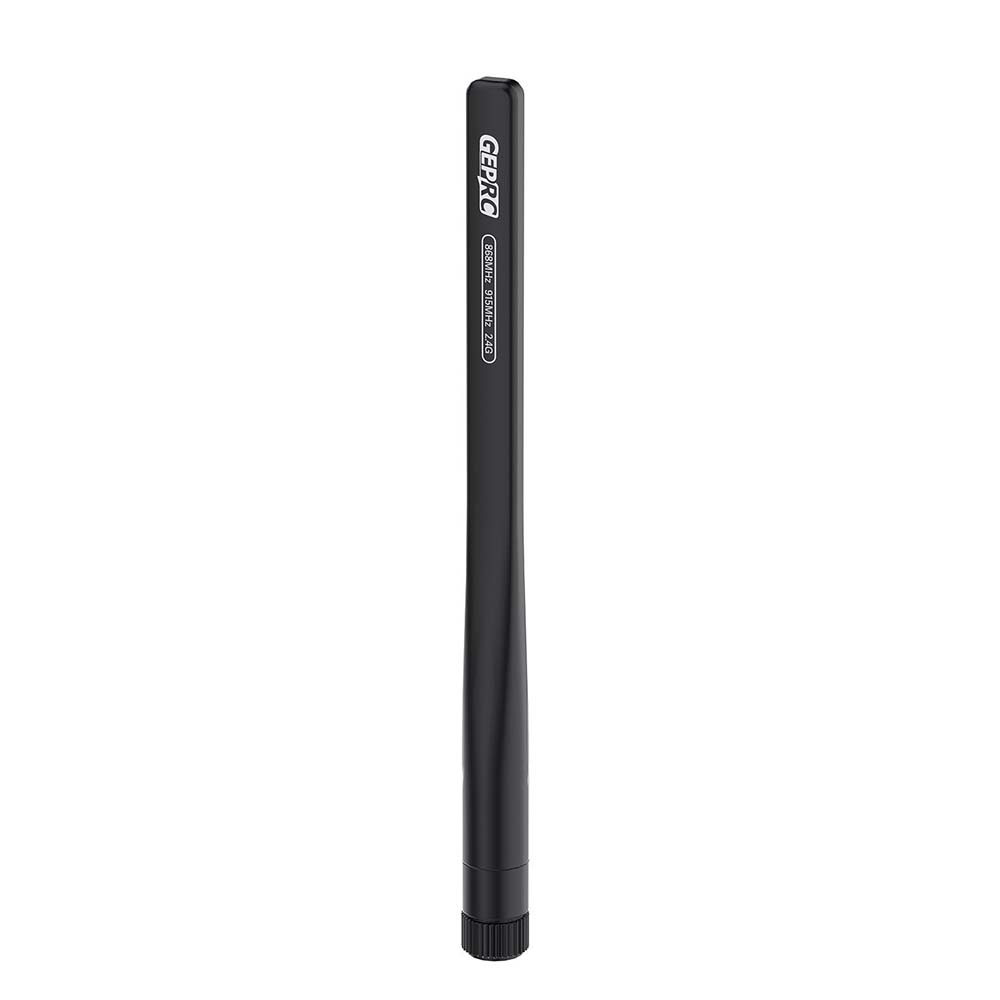

The Geprc Tri-Band Stick is a multi-band antenna with linear polarization designed for ELRS modules with switchable frequency. The antenna is tuned for 860–870 MHz, 900–930 MHz, and 2400–2500 MHz with a gain of 2.8–2.9 dBi. It comes equipped with an SMA connector.
Key Features
- Frequency bands: 860-870MHz, 900-930MHz, 2400-2500MHz
- Polarization: Linear
- Gain: 2.8dBi (868MHz), 2.82dBi (915MHz), 2.97dBi (2.4GHz)
- VSWR: ≤1.5
- Cross-Polarization Suppression: -25dB
- Length: 172mm
- Weight: 11.2g
- Housing material: ABS
- Connector: SMA
Package Includes
- 1x Antenna
