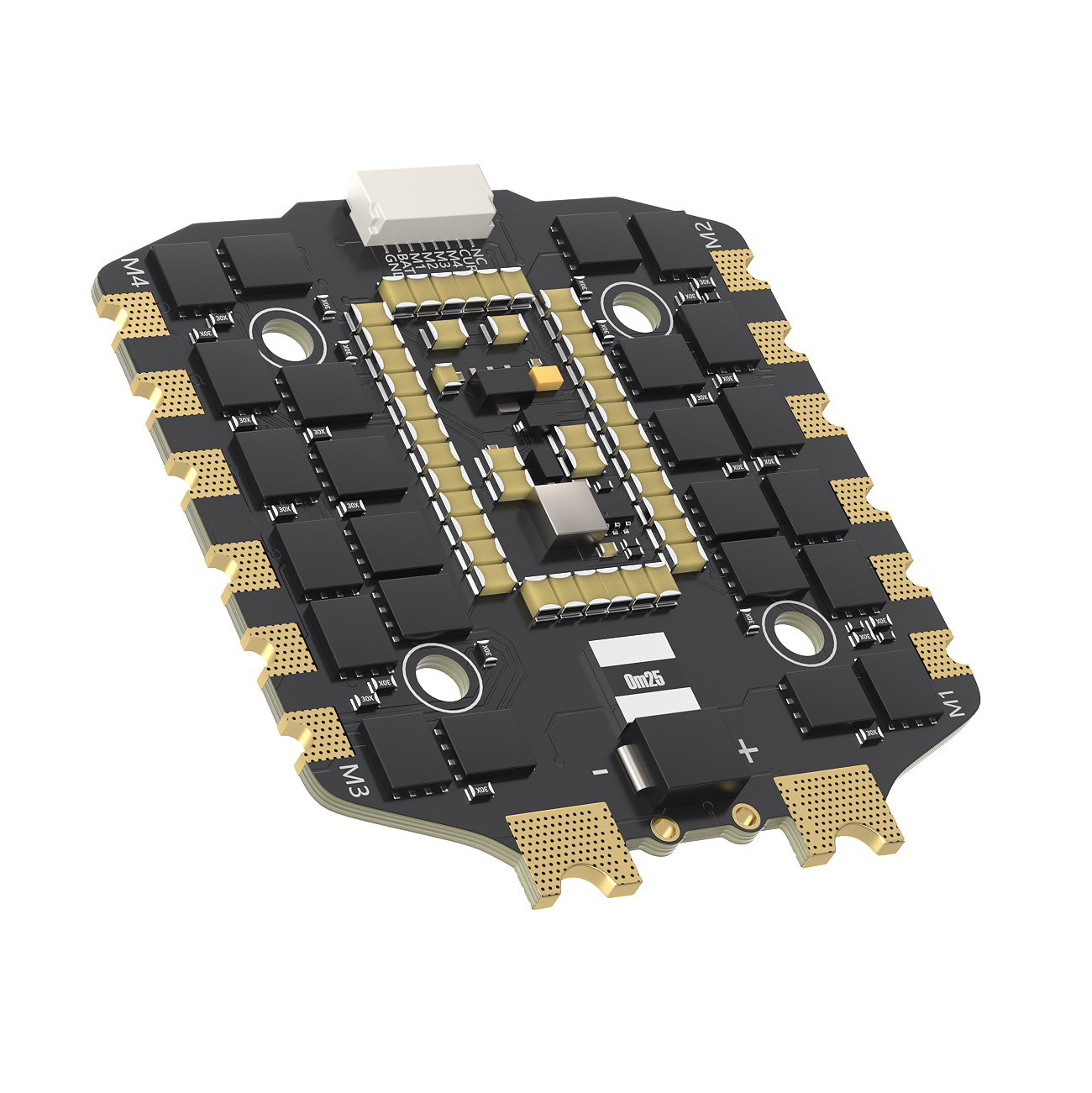

GEPRC Taker H80 80A BLS is a powerful 4-in-1 ESC suitable for large 10-15" drones powered by 3-6S LiPo batteries. The ESC can handle a continuous current of up to 80A on each channel.
GEPRC Taker H80 uses BLHeli_S firmware. Power is supplied by a robust cable with an XT90 connector and 10AWG wires, and the board is connected to the flight controller via an 8-pin SH1.0 cable. The ESC is equipped with a current sensor.
The mounting hole spacing is 30,5x30,5mm, the mounting holes have a diameter of 4mm and, after fitting the included softmounts, are reduced to 3mm. The board measures 56,3x61,1mm and weighs 28,1g. The package includes a electrolytic capacitor 4700µF/50V.
Key Features
- Input voltage: 3-6S LiPo
- Maximum current: 80A
- Firmware: BLHeli_S (B_X_30)
- Supported protocols: DShot150/300/600
- Current sensor: Yes
- Mounting holes: 30,5x30,5mm (φ4mm, with softmounts φ3mm)
- Size: 56,3x61,1mm
- Weight: 28,1g
Package Includes
- 1x ESC
- 1x Capacitor (4700µF/50V)
- 1x FC connection cable (SH1.0 8pin, 30mm)
- 1x XT90 power cable (10AWG, 230mm)
- 4x Softmount (M3)
