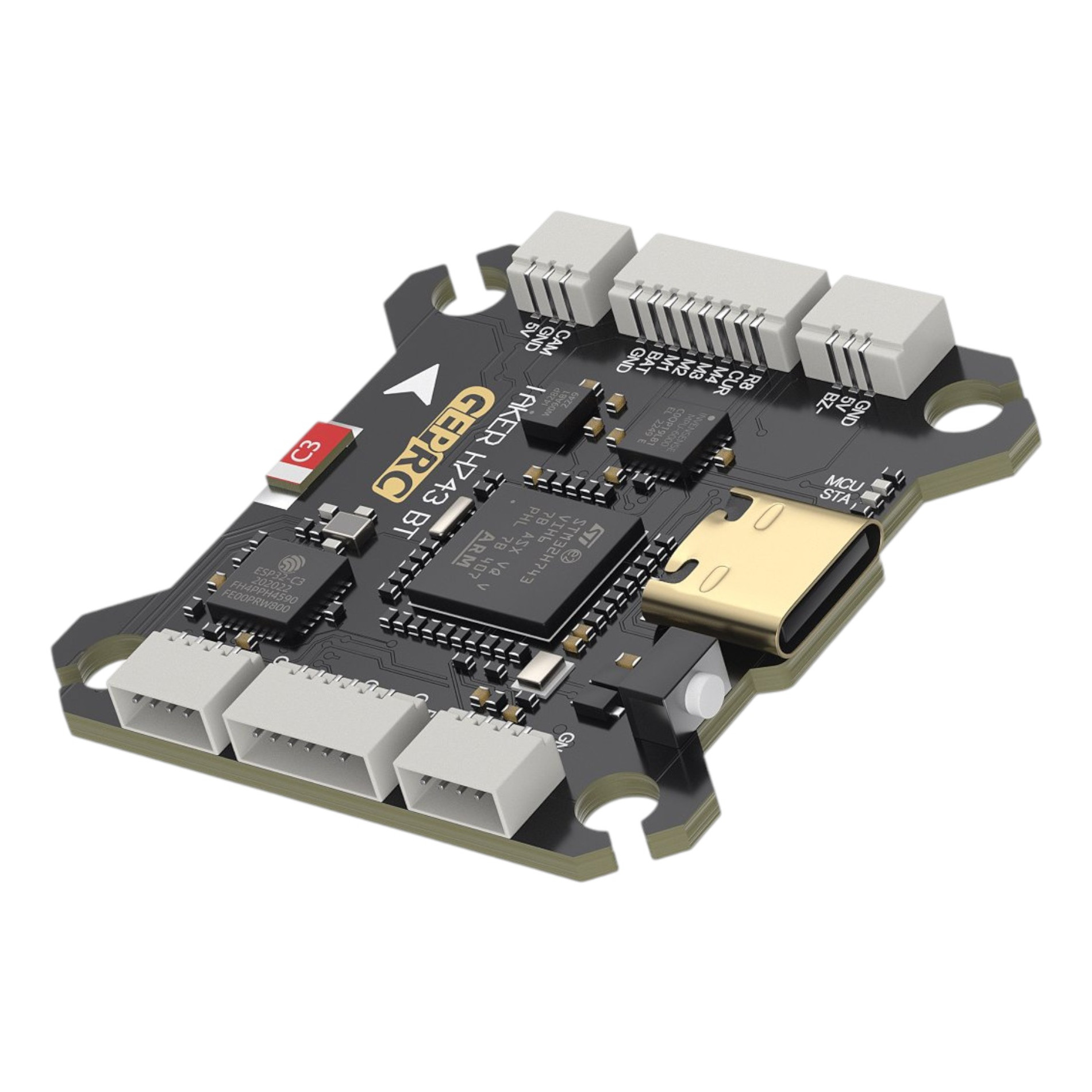

GEPRC Taker H743 powerful flight controller suitable for 5–10" freestyle drones, long-range drones or cinelifters powered by 3–6S batteries. The stack supports firmware Betaflight, iNav, and Ardupilot.
The flight controller is built on the STM32H743 processor and combines two gyros — MPU6000 and ICM42688-P. It features a large integrated 512MB blackbox memory and an integrated barometer for altitude measurement. The flight controller includes connectors for easy wiring as well as solder pads. For powering peripherals, there are 5V/3A BEC and 12V/2.5A BEC. The flight controller also features an LC filter for smoothing the power supply voltage. The board has 7 UARTs, an I2C bus for connecting a compass, and 8 PWM outputs for use in an octocopter or for controlling servos. Solder pads are also available for connecting an external USB connector.
Key Features
- Input Voltage: 3–6S LiPo
- MCU: STM32H743
- Gyro: MPU6000 + ICM42688-P (dual gyro)
- Number of motor outputs: 8
- Barometer: integrated
- Blackbox memory: 512MB
- BEC: 5V/3A + 12V/2.5A
- Compatible firmware: Betaflight, iNav, Ardupilot
- Target: GEPRC_TAKER_H743
- Mounting holes: 30.5 × 30.5 mm
- Size: 38.5 × 38.5 mm
- Weight FC: 8.4 g
User Guides
Package Includes
- 1x TAKER H743 flight controller
- 1x set of cables
- 1x set of soft mounts
