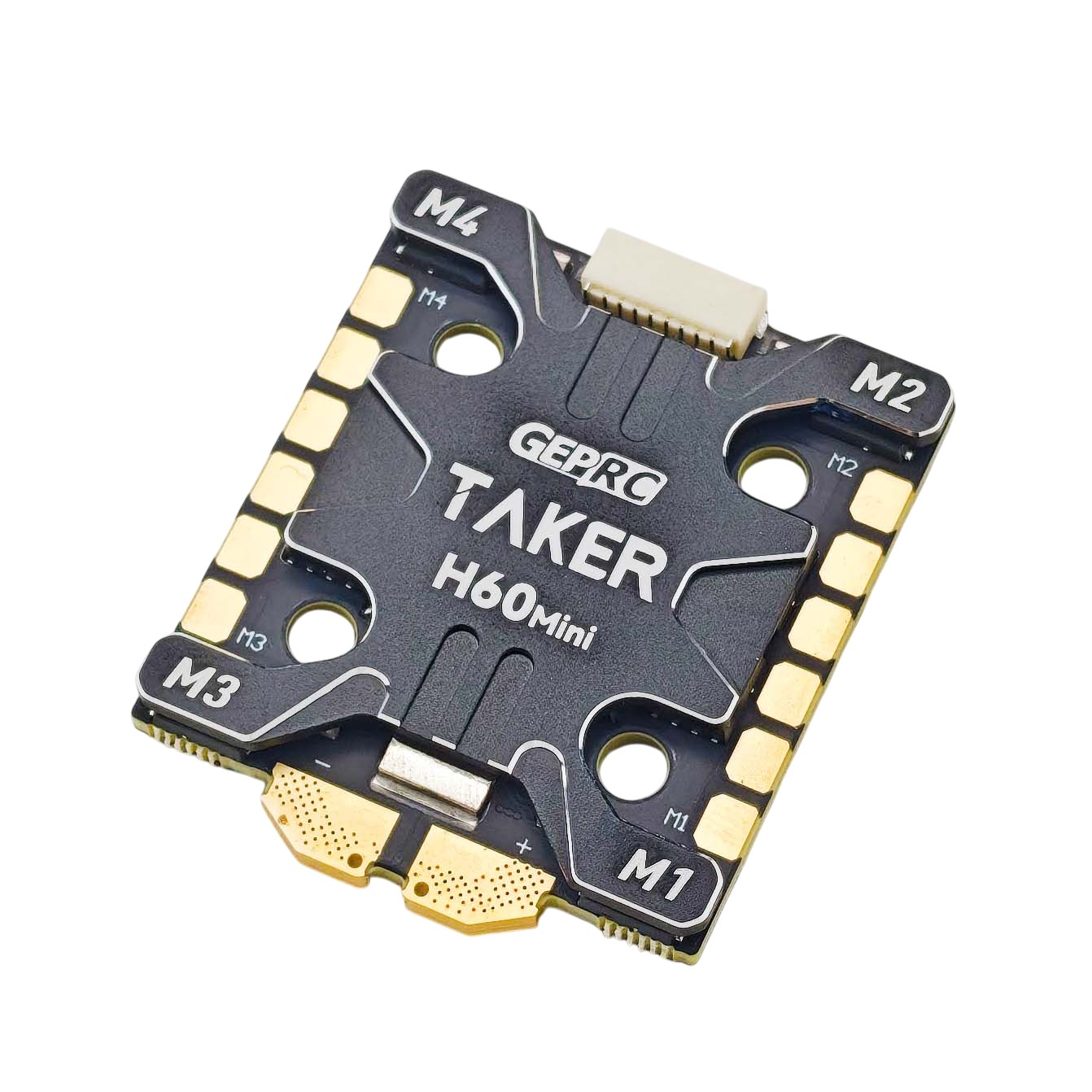

GEPRC Taker H60 Mini is a powerful 4-in-1 ESC suitable for 5" racing and freestyle drones powered by 3-8S LiPo batteries.
The Taker H60 Mini ESC can handle a continuous current of 60A per channel. It uses AM32 firmware, which supports bidirectional DShot and adjustable output PWM frequency; the input protocols are DShot150, 300 and 600. The board is fitted with an aluminum heatsink that helps dissipate heat from the power MOSFETs while also protecting the underside of the board. The ESC is equipped with a current sensor and a protective TVS diode.
Mounting pattern is 20x20mm. The ESC dimensions are 43x36mm and the weight is 17g including the heatsink.
Key Features
- Input voltage: 3-8S LiPo
- ESC firmware: AM32 (AM32 GEPRC 4IN1 F421)
- Continuous current: 60A
- Input protocol: DShot150/300/600
- Current sensor: Yes
- Protective TVS diode: Yes
- Mounting holes: 20x20mm M3
- ESC size: 43x36mm
- ESC weight: 17g (with heatsink)
User Guides
Package Includes
- 1x ESC
- 1x 1000uF/50V capacitor
- 1x XT60 connector with cable (12AWG, 55mm)
- 1x accessory set
