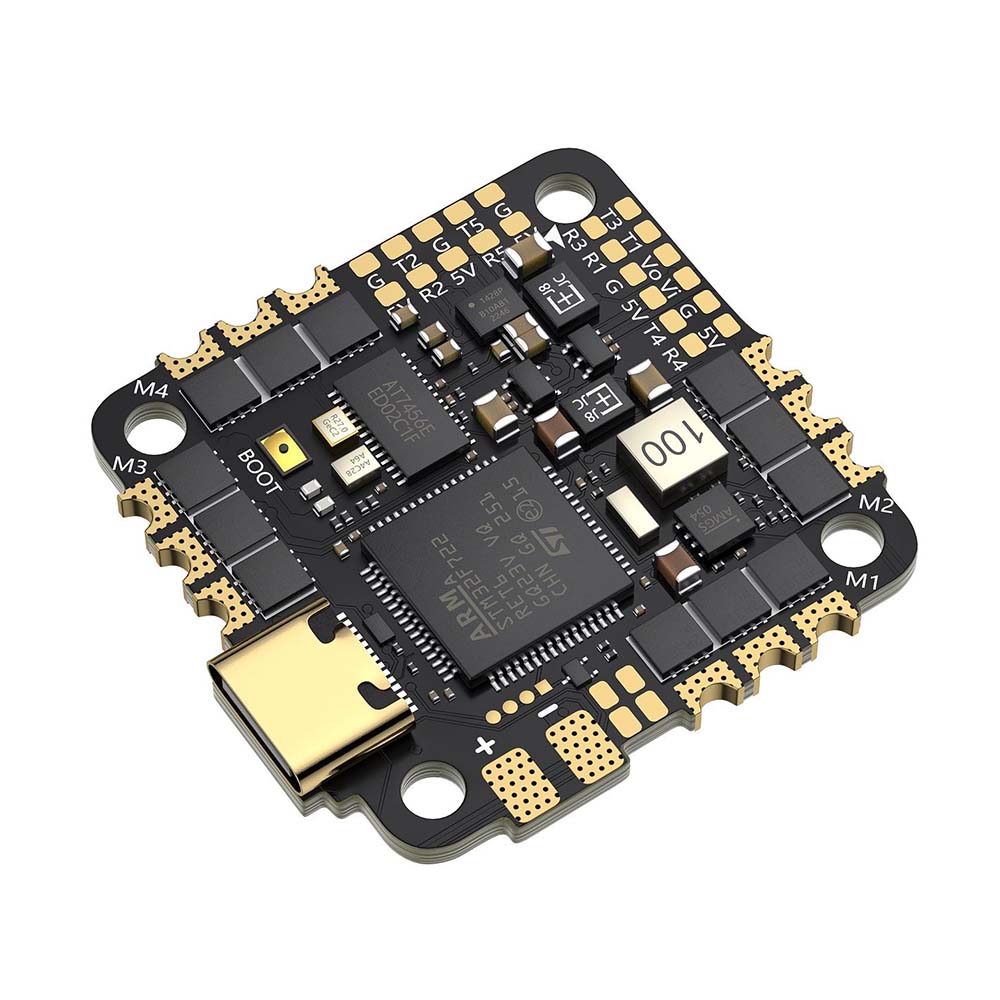

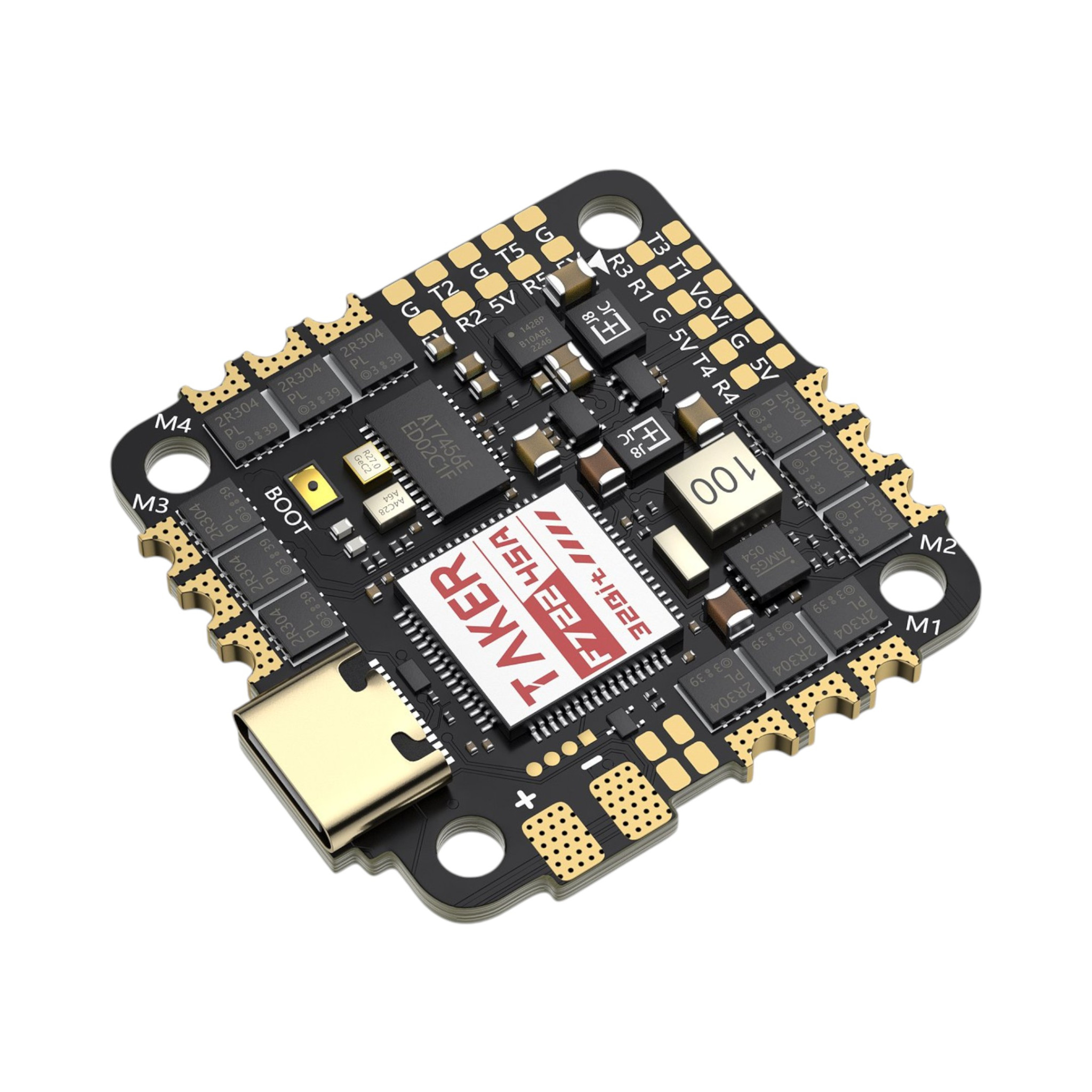

The Geprc Taker F722 45A is an AIO (all-in-one) board designed for 3–5" drones. The board combines a flight controller with an F722 processor, an ICM42688 gyro, and 45A ESCs running BlHeli_32 firmware. It features 5 UARTs, a connector for easy connection of digital video transmitters, 16MB blackbox memory, an OSD chip for analog video, and a 5V/1A BEC. Power is supported from 2–6S LiPo batteries.
Key Features
- MCU: STM32F722
- Gyro: ICM42688 (SPI)
- BF Target: GEPRC_F722_AIO
- Number of UARTs: 5
- BEC: 5V@1A
- Current: 45A
- ESC firmware: BlHeli_32
- Input voltage: 2-6S
- Blackbox: 16MB
- Mounting holes: 25.5x25.5mm
- Size: 35x33.5mm
- Weight: 9.2
Package Includes
- 1x AIO Board
- 1x XT30 connector with cable
- 1x Capacitor
- 1x Softmount Kit
