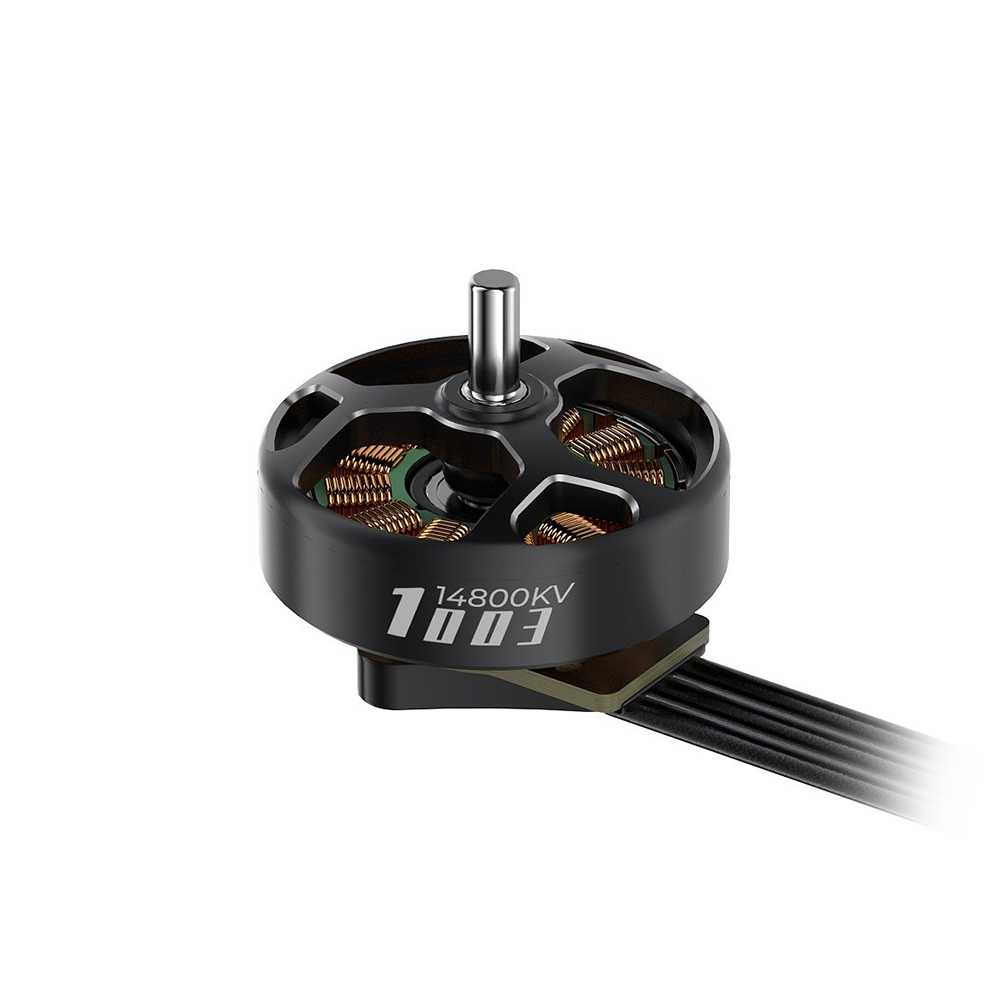

GEPRC SpeedX2 1003 14800Kv is a small motor suitable for larger 1.6″ Tinywhoops and small Tootpick powered by 2S batteries.
Even at this size, it uses a durable unibell bell made from 7075 aluminum, strong N52H curved magnets for high performance, and quality NMB bearings for long life. 30AWG wires with a length of 50mm are soldered to a small PCB, making them relatively easy to replace if damaged. The wires are not terminated with a connector. The propeller holds on a 1.5mm shaft without securing screws.
The surface of the motor has a matte black finish with beveled edges and a lightweight design for better cooling.
Key Features
- Size: 1003
- Dimensions: Ø13.6 × 8.7mm
- Kv: 14800
- Cable: 50 mm (30AWG)
- Mounting holes: 3 × Ø6.6 mm M1.4
- Shaft diameter: 1.5 mm
- Magnets: N52H
- Bearing: NMB
- Configuration 9N12P
- Weight: 3.2 g ±0.2 g (including cable)
Package Includes
- 1× Motor
- 6× Screw M1.4×4 mm
