GEPRC RAD Mini 25-1000mW

In Stock
€ 53,39

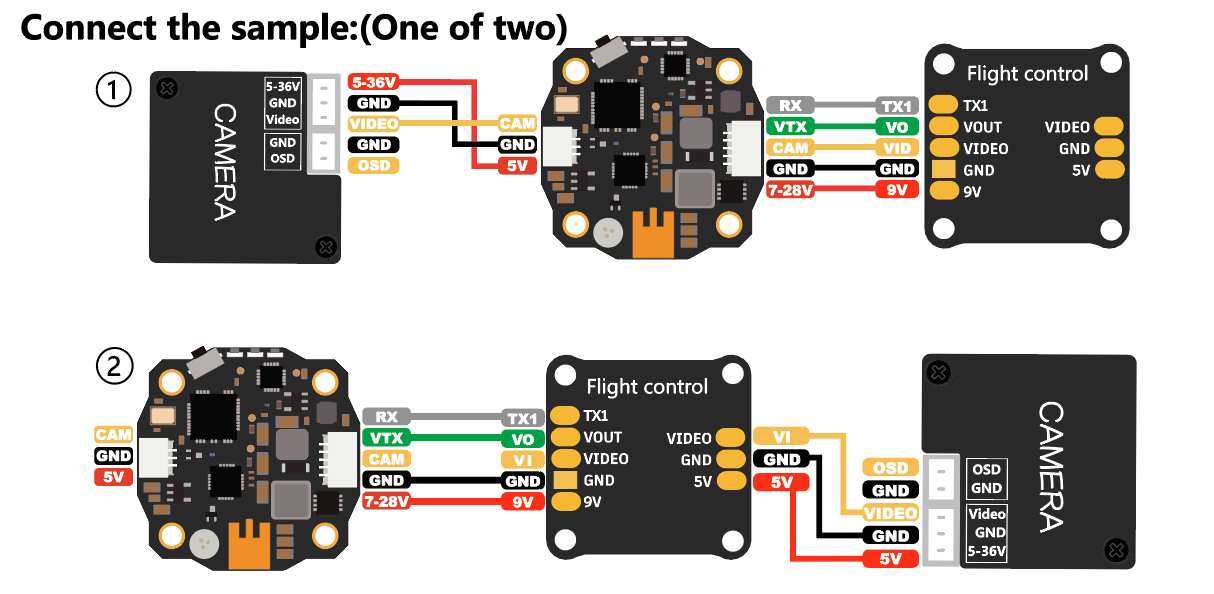

GEPRC RAD Mini is a powerful video transmitter with mounting holes 20x20mm M2. The video transmitter is suitable for 3-5" freestyle drones or Cinewhoops. It includes a aluminum heatsink that helps dissipate heat and protects sensitive components from dirt. The video transmitter also features an integrated microphone. There are pads for connecting the camera, which facilitate the connection and allow for continued use of the OSD from the flight controller. The video transmitter can be configured using a button or through the flight controller with the IRC Tramp protocol.

In the new version, the video transmitter is equipped with a u.FL connector.



Key Features

  • Mounting holes: 20x20mm M2
  • Input voltage: 7-28V (2-6S)
  • Camera output voltage: 5V
  • Integrated microphone
  • Power: 25/200/500/1000mW
  • Connector: u.FL
  • Weight: 4.7g (8.4g with heatsink)
  • Size: 30.8x30.8x5.2mm

User Guides

Package Includes

  • 1x Video transmitter
  • 1x Cable set
  • 1x SMA pigtail
  • 1x Linear antenna
  • 4x Nylon washer
  • 4x Softmount
  • 4x M2x8 screw

Videos
