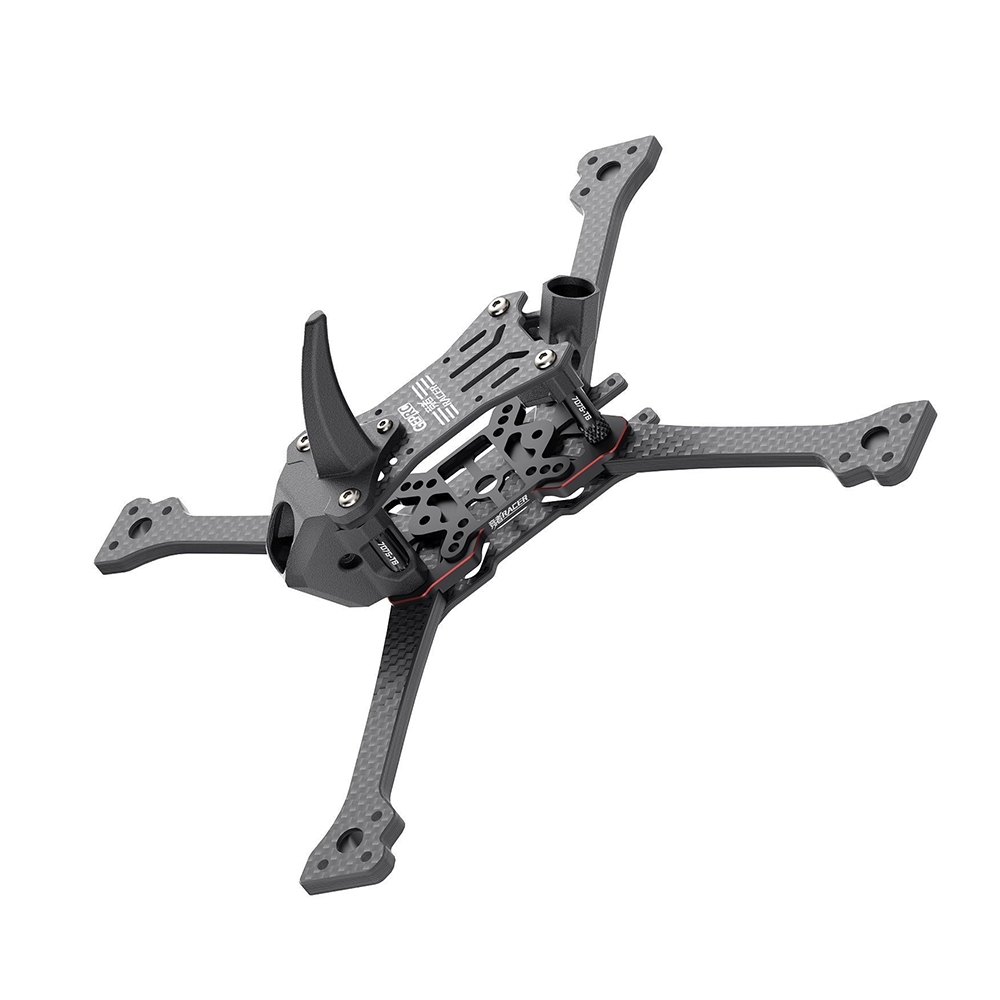

GEPRC Racer is a frame designed for building a 5" racing FPV drone. It is designed for high strength and low weight. The frame features durable arms with a thickness of 5 mm made from T700 carbon. The middle plate is machined from 7075 aluminum alloy. There is a space of 14×27 mm under the regulators for placing the RC receiver. The frame includes 3D printed accessories such as a camera mount for Nano size, an antenna mount, and a fin for easy rotation.
The frame allows for stack mounting with hole spacing of 20×20 mm, 25.5×25.5 mm, and 30.5×30.5 mm. The diagonal distance between motors is 208 mm.
Key Features
- Diagonal distance between motors: 208mm
- Thickness of top plate: 2mm
- Thickness of bottom plate: 2mm
- Thickness of aluminum plate: 2mm
- Thickness of arms: 5mm
- Standoffs: M3x6x24mm
- Mounting holes for stack: 20x20/25.5x25.5/30.5x30.5mm
- Mounting holes for motors: 16mm M3
- Camera size: Nano (14mm)
- Propeller size: 5"
- Weight: 78g
Package Includes
- 1x Frame
- 2x Lipo strap 20x250mm
- 2x Battery pad
