GEPRC MOZ7 V2 O4 Pro - 6S ELRS 868MHz/2.4G

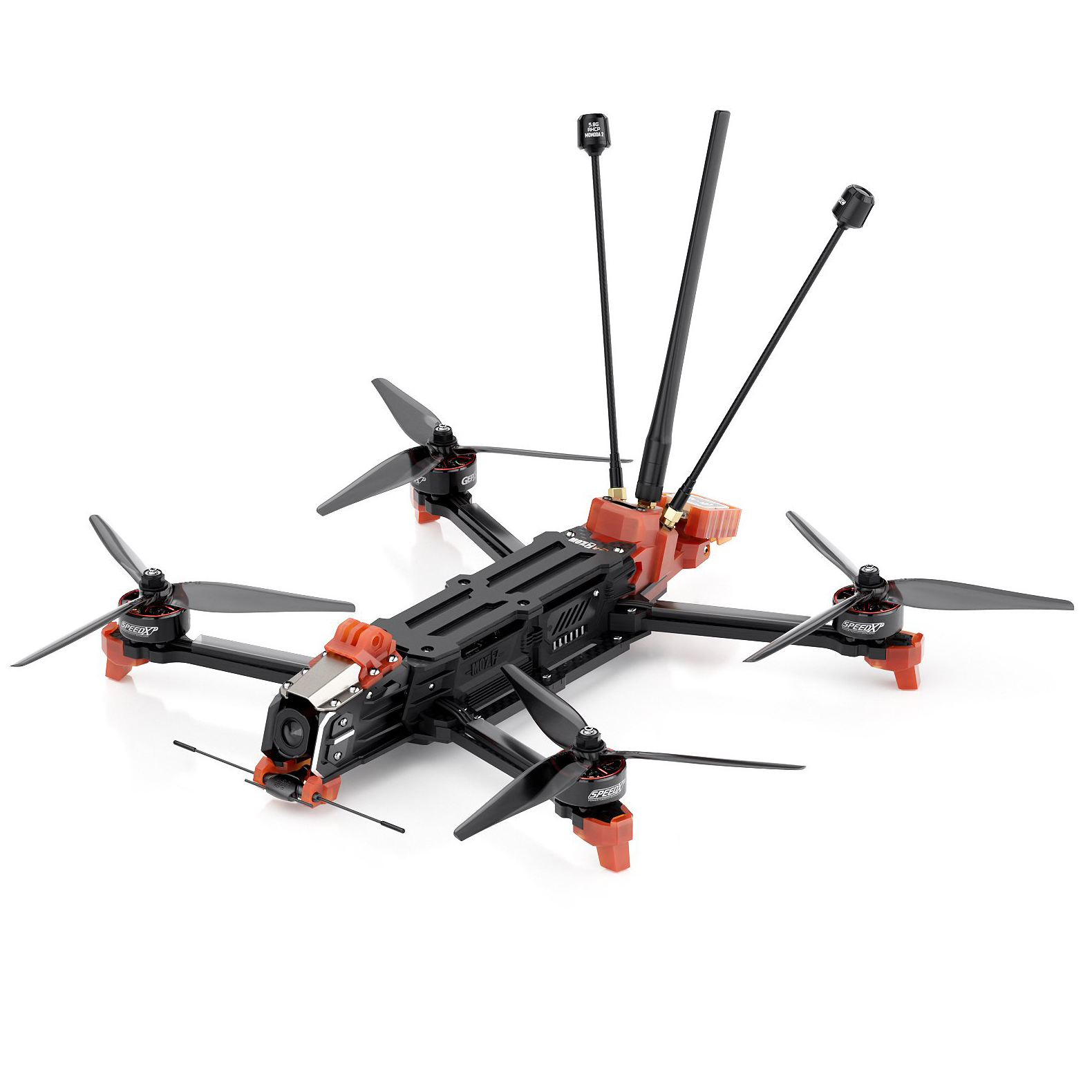

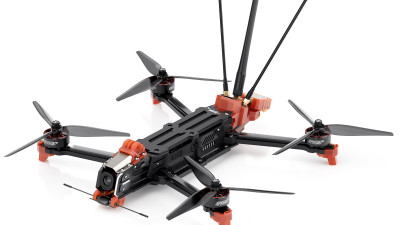

Geprc MOZ7 V2 is a top-tier 7.5" long-range drone with digital image transmission from DJI O4 Pro. Thanks to its size and longer flight time, the drone is suitable for long flights over the countryside or in the mountains. It can easily handle a standard HD camera such as GoPro or DJI Action. The camera is positioned in front of the arms, so no distracting propeller edges are visible in the DJI O4 camera view. This allows you to capture high-quality 4K footage directly from the DJI O4 Pro unit. The camera is mounted in aluminum side plates that protect it. Another aluminum guard is placed above the camera. The drone is equipped with a GemX Dual-band ELRS receiver. Control is therefore possible on 2.4GHz and 868MHz frequencies, which increases range and RC reliability. For long range, the ELRS antennas are also suitably placed on the drone. One is at the front under the camera, the other at the rear of the drone.

The drone also includes a GPS module, which enables automatic return to the launch point. Thanks to the GPS module, you can also display the distance from the launch point, the direction to the launch point, and speed in the goggles. The GPS module is mounted in a holder whose angle can be easily adjusted. Depending on the intended tilt, you can angle the GPS so it points straight up at the sky and receives satellite signals well. The drone body is covered by plastic side plates, which protect sensitive electronics from dirt. The rear of the side plates has cutouts for the aluminum heatsink for the DJI O4 Pro unit. You will also appreciate the securely mounted XT60 connector, which minimizes the chance of battery leads getting caught in the propellers. If needed, the battery can be mounted on the underside of the drone. The drone is equipped with an antispark module, which prevents arcing when connecting the battery and extends connector life.

The drone is equipped with 2809 1280Kv motors, which, in combination with a 6S battery and 7.5" propellers, provide more than enough power. The drone uses a Taker H743 BT flight controller with an integrated Bluetooth module for wireless setup. The board uses a powerful STM32H743 processor and two gyros - MPU6000 and ICM42688-P. The flight controller is also equipped with 512MB of blackbox memory and an integrated barometer for altitude measurement.

Recommended batteries are 6S LiPo packs with around 3300mAh for agile freestyle flying or 4000mAh and more for calmer long-range flights. For maximum flight time, 6S2P Li-ion packs are suitable.

Important notice: The DJI O4 camera uses a new generation of gyros that are more sensitive to vibrations. This may affect the proper functionality of RockSteady and Gyroflow stabilization.
