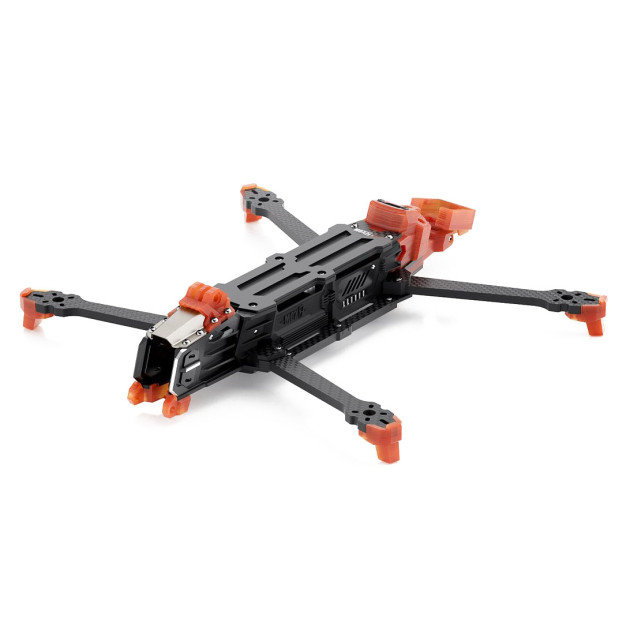

GEPRC MOZ7 V2

GEPRC MOZ7 V2 is a high-quality frame designed for building long-range drones. It supports 7.5–8" propellers, providing slightly more thrust than traditional 7" setups. One of the standout features is the plastic side panels, which protect the stack and electronics from debris. The camera is mounted in aluminum side plates that provide solid protection, with an additional aluminum guard positioned above. These aluminum mounts are tailored for use with the DJI O4 Pro camera. Since the camera is mounted in front of the arms, the propeller edges do not appear in the DJI O4 feed, enabling high-quality 4K recording directly from the DJI O4 Pro unit.

The rear side panels include cutouts for the aluminum heatsink of the DJI O4 Pro unit. The frame also features a securely mounted XT60 connector, minimizing the risk of battery wires getting caught in the props. If needed, the battery can also be mounted underneath the frame. The frame is long enough to easily accommodate both an action camera and a larger battery on the top plate.

The arms are milled from 6 mm thick carbon fiber and support motors with a 16 or 19 mm mounting pattern. The main stack area supports mounting patterns of 20x20 mm, 25.5x25.5 mm, and 30.5x30.5 mm. The rear section of the frame includes 20x20 mm and 25.5x25.5 mm mounting holes for VTX installation.
