GEPRC MK5D-LR7 HD Avatar V2 - 6S ELRS

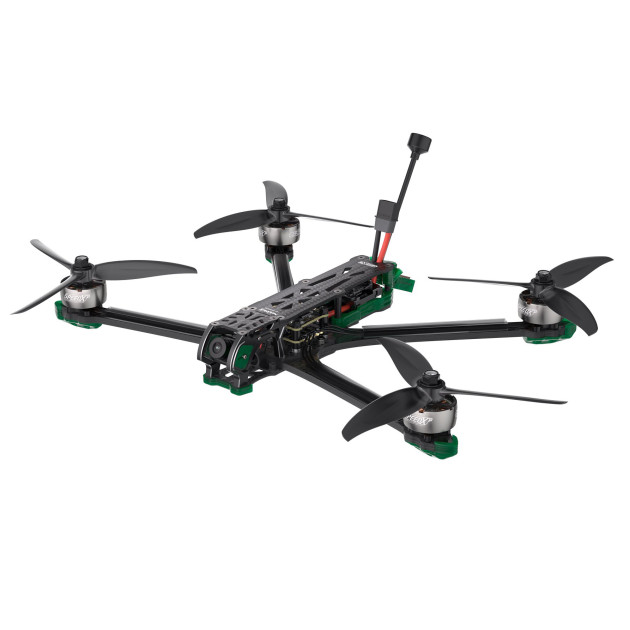

GEPRC MK5D-LR7 is a high-end 7-inch drone for long-range flights. Drone use digital video transmission Walksnail Avatar HD V2. It also enables video recording on board the drone at FullHD 60fps with Gyroflow stabilization. The Deadcat design is important precisely because of the filming. Deadcat frames have the motors moved further back behind the camera level. The edges of the propellers, which are distracting in FPV images and even more so in HD footage, are not visible in the image. The drone already has a GPS module in the base, which allows automatic return to the launch site and provides the pilot with important information about the drone's speed and the distance and direction to the launch site.

The sensitive camera is protected in a cage made of durable aluminum alloy 7075. To eliminate vibration and minimize damage in crashes, the camera is mounted in TPU inserts in the aluminum cage. Powering the drones are SPEEDX2 2806.5 1350Kv motors, which combined with a 6S battery provide more than enough power. Powerful SPAN G50A ESCs are used to drive the motors with BlHeli_32 firmware that supports telemetry, bidirectional dshot and other advanced features. Flight control is provided by the SPAN F722 HD V2 controller with integrated bluetooth. This will make it easier to set up the drone, especially in the field when there is no need to connect a USB cable. Everything can be conveniently set up wirelessly via the Speedybee app on your phone.

The copter has an ELRS receiver installed, but it is not a problem to replace it with another one.
