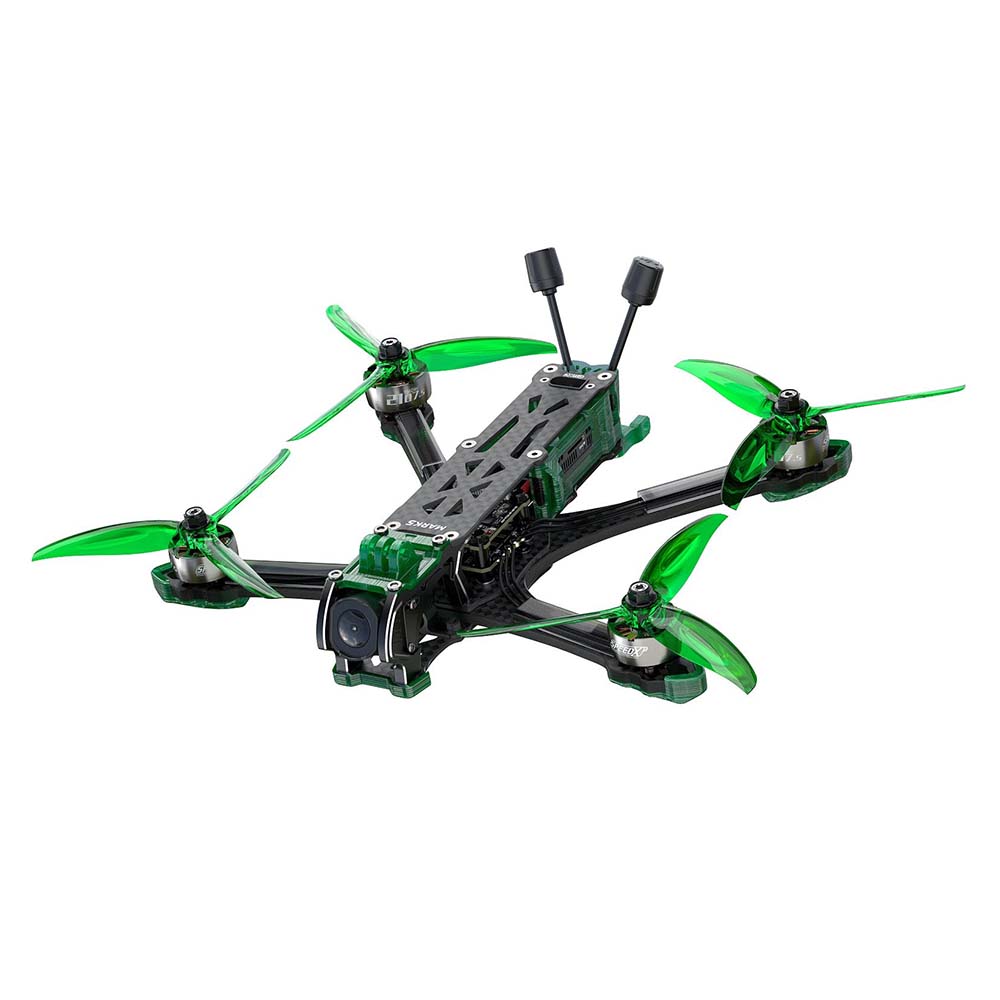

GEPRC Mark5 Deadcat O4 Pro - 6S ELRS

Mark5 Deadcat O4 Pro 6S ELRS is GEPRC's flagship in the 5" freestyle drone category. The Mark 5 is designed primarily for freestyle and cinematic flying. HD video transmission is handled by the top-tier DJI O4 Pro unit. It also allows onboard recording up to 4K resolution with Rocksteady or Gyroflow stabilization. For filming, the Deadcat design is crucial. Deadcat frames have the motors shifted further back behind the camera plane. This means the propeller edges are not visible in the image, which is distracting in FPV footage and even more so in HD recordings.

The sensitive camera is protected in a cage made of durable 7075 aluminum alloy. To eliminate vibrations and minimize damage in crashes, the camera is mounted in soft inserts in the aluminum cage. Propulsion is provided by SPEEDX2 2107.5 1960Kv motors, which deliver more than enough power when combined with a 6S battery. The motors are driven by powerful 50A ESCs with BlHeli_32 firmware, which supports telemetry, bidirectional dshot, and other modern features. Flight control is handled by the TAKER F722 BT flight controller with integrated Bluetooth. This makes configuring the quad easier, especially in the field, where there is no need to connect a USB cable. Everything can be conveniently set up wirelessly via the Speedybee app on a phone.

An ELRS receiver is installed in the quad, but it is not a problem to replace it with another one. Recommended batteries are 6S 1300-1500mAh.

Important notice: The DJI O4 camera uses a new generation of gyroscopes that are more sensitive to vibrations. This may affect the proper function of RockSteady and Gyroflow stabilization.
