GEPRC Mark4 LR10 - 6S ELRS 868/915MHz

On the way - Nov 29, 2024
Watch availability
€ 366,89

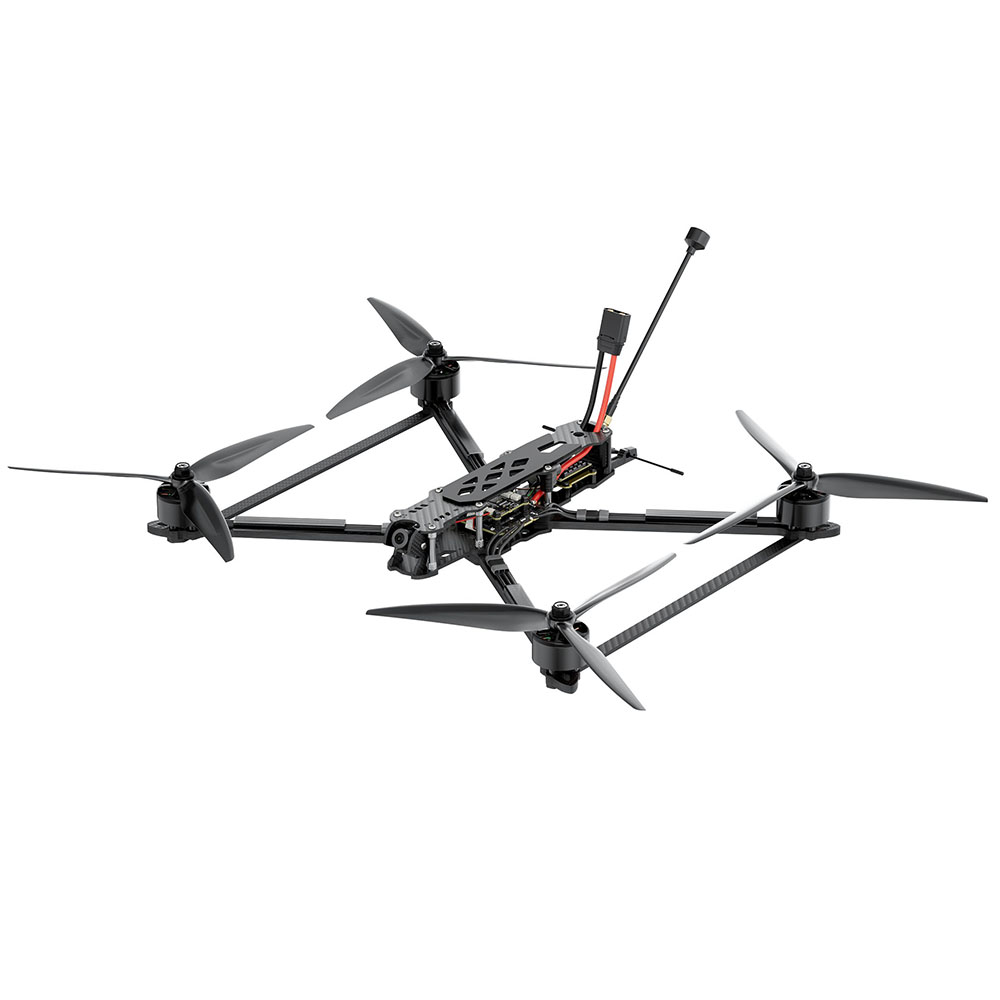

Geprc Mark4 LR10 is a large drone with 10" propellers suitable for long distance flights. Thanks to the larger propellers, the drone has better efficiency and can carry a larger and heavier battery. The drone can carry up to 3kg, making it suitable for carrying heavier items such as cameras or other sensors. The drone's arms are connected by a brace, which increases the rigidity of the drone and minimizes vibration. The arms are made of 7mm thick carbon fiber.

Propulsion is provided by Em3115 900Kv motors combined with Gemfan 1050-3 propellers, 80A ESCs Taker H80 with BlHeli_S firmware and 6S batteries. Flight control is handled by a F405 controller with ICM-42688-P processor and gyro. For video transmission, a Caddx H1 camera and a Geprc RAD 5.8GHz video transmitter with power up to 2.5W are used.

The drone is supplied with a ELRS 868/915MHz receiver. Recommended batteries are 4000-8000mAh Lipo or for more experienced pilots 8000-15000mAh Liion (6S2P-6S3P 21700).

Key Features

  • Diagonal motor spacing: 429mm
  • Top plate thickness: 2mm
  • Bottom plate thickness: 3mm
  • Arm thickness: 7mm
  • Brace thickness: 3mm
  • FC: GEPRC F405 V2 (ICM-42688-P)
  • ESC: TAKER H80_96K BlHeli_S 80A 4IN1
  • VTX: RAD VTX 5.8G 2.5W
  • Camera: Caddx H1
  • Antenna: 5.8G RHCP SMA
  • Motors: EM3115 900Kv
  • Propeller: Gemfan 1050-3
  • Weight: approx. 968g

Package Includes

  • 1x Drone
  • 1x Propeller Kit
  • 1x Battery Pad
  • 4x Lipo Strap
  • 1x Accessory Kit
