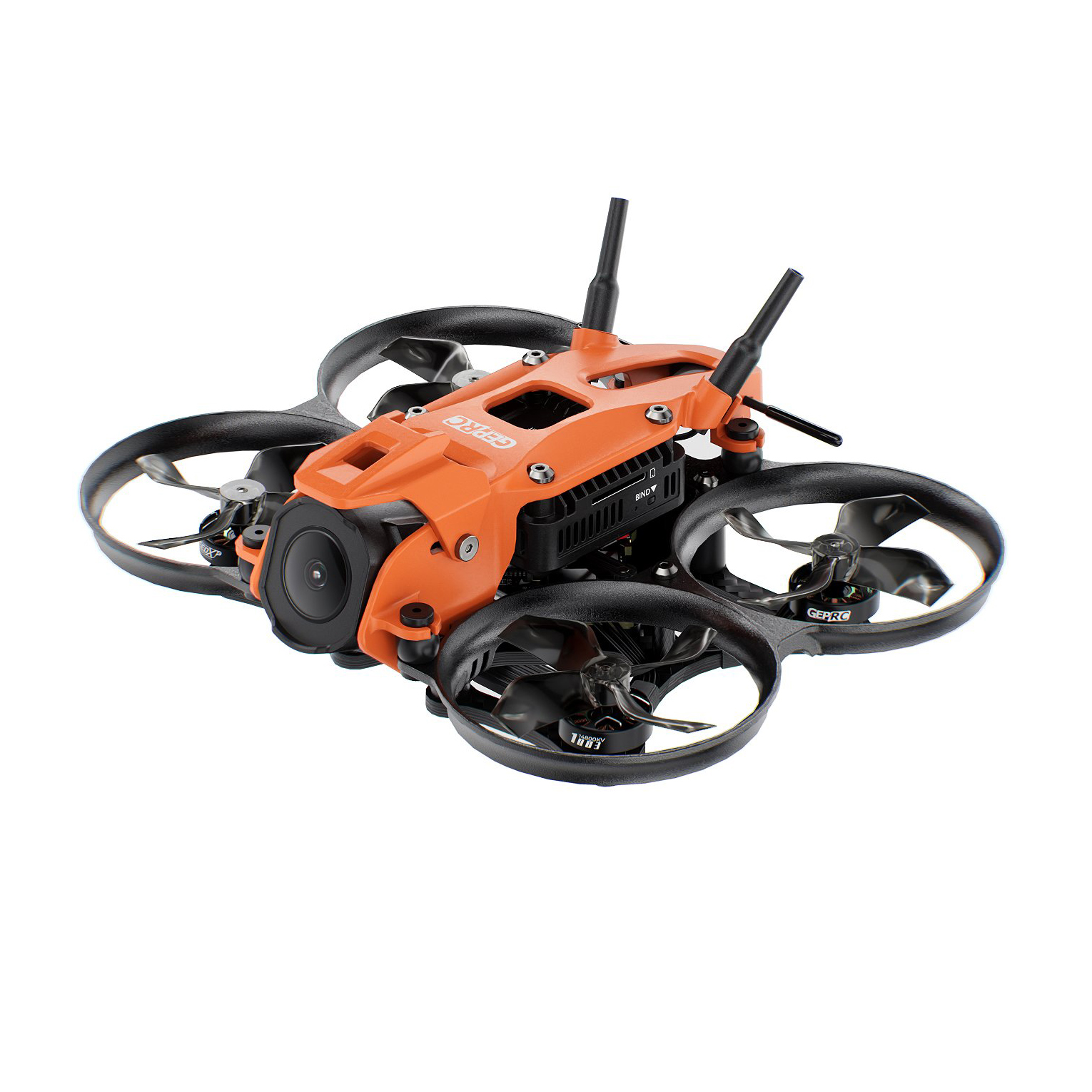

GEPRC DarkStar16 O4 Pro - 2S ELRS

GEPRC DarkStar16 O4 Pro is a small 1.6" FPV drone in the TinyWhoop category, designed especially for indoor filming or calm flights in still air. The drone is equipped with the digital video transmission system DJI O4 Pro, which allows high-quality video recording in up to 4K resolution. The DJI O4 Pro system is mounted on rubber vibration dampers, which help absorb unwanted motor vibrations. The camera tilt can be adjusted as needed. The DJI O4 Pro unit has an easily accessible slot for a microSD card. The drone base is milled from a carbon plate and complemented by plastic prop guards and a top cover. The modular design allows for quick disassembly by loosening six screws. Any maintenance is therefore very easy.  The drone has a securely mounted XT30 connector on the rear.

The propulsion is provided by speedX2 1003 14800KV motors with Gemfan 1636-4 propellers. Flight is controlled by the AIO board TAKER F411, which combines the flight controller, ESCs and an integrated ELRS receiver on the 2.4GHz frequency with an external antenna. The flight controller is built on the STM32F411 processor and the ICM42688-P gyro. The 12A ESCs use Bluejay firmware.

Recommended batteries are 2S LiHV with a capacity of around 450-550mAh.

Important notice: The DJI O4 camera uses a new generation of gyros, which are more sensitive to vibrations. This may affect the proper function of RockSteady and Gyroflow stabilization.
