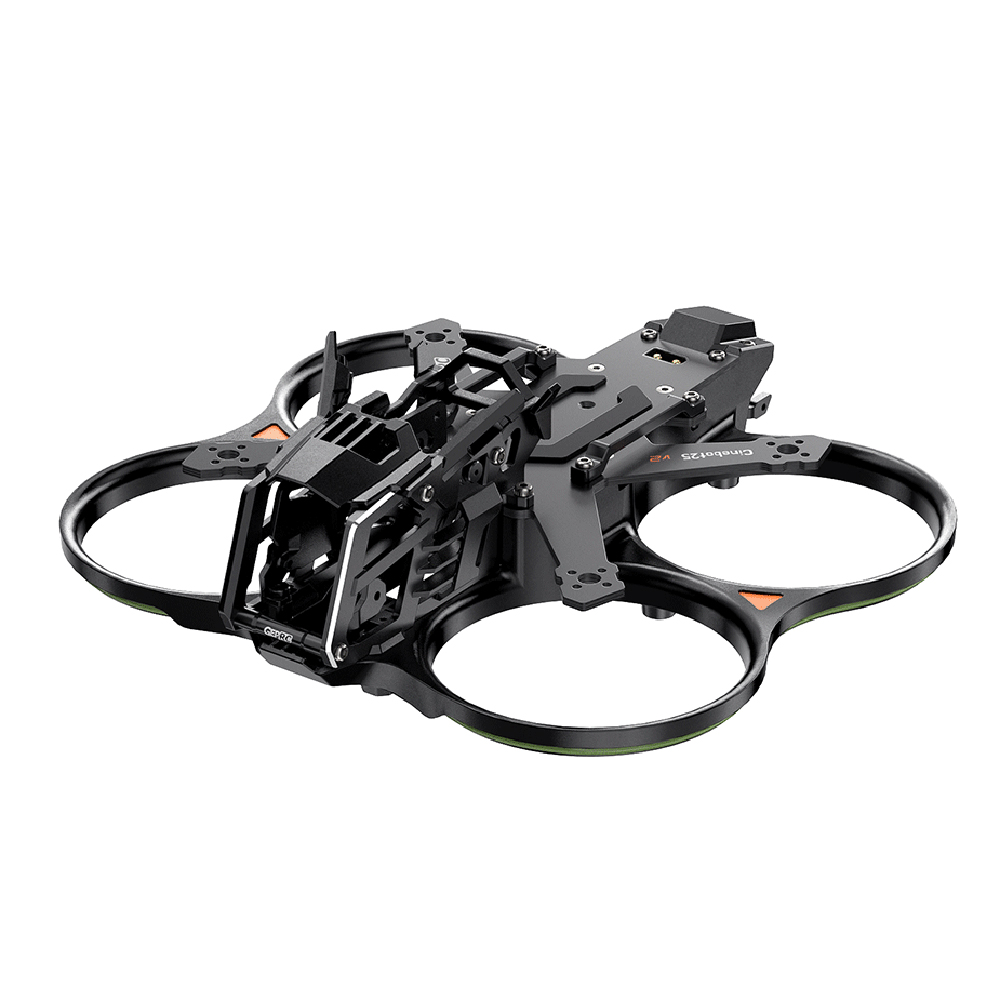

GEPRC GEP-CT25 V2 is a carbon frame for building a 2.5" cinewhoop. At first glance, the frame's front section stands out, designed for mounting the entire DJI O4 Pro digital video transmission. The entire front section is secured with 6 rubber soft mounts that dampen vibrations. The main plate is machined from 2 mm thick carbon. In the rear part, there is space for firm mounting of the XT30 power connector. The frame is suitable for motors with a diagonal hole spacing of 9 mm and AIO boards with mounting holes 25.5 x 25.5 mm M2. At the back of the frame, there is space for a GPS module and a USB-C connector for easy configuration of the flight controller. The propellers are protected by plastic propeller guards that include an LED strip.
Key Features
- Propeller size: 2.5"
- Diagonal motor spacing: 123 mm
- Carbon thickness: 2.0 mm
- AIO mounting holes: 25.5 × 25.5 mm M2
- Motor mounting holes: 9 mm M2
- Camera size: 20 mm
- Battery connector: XT30
- Weight: 110 g
Package Includes
- 1x Frame
- 1x LED strip set
- 1x XT30 connector
- 1x Capacitor
- 1x Cable set
- 1x Cable covers
- 2x Lipo straps
