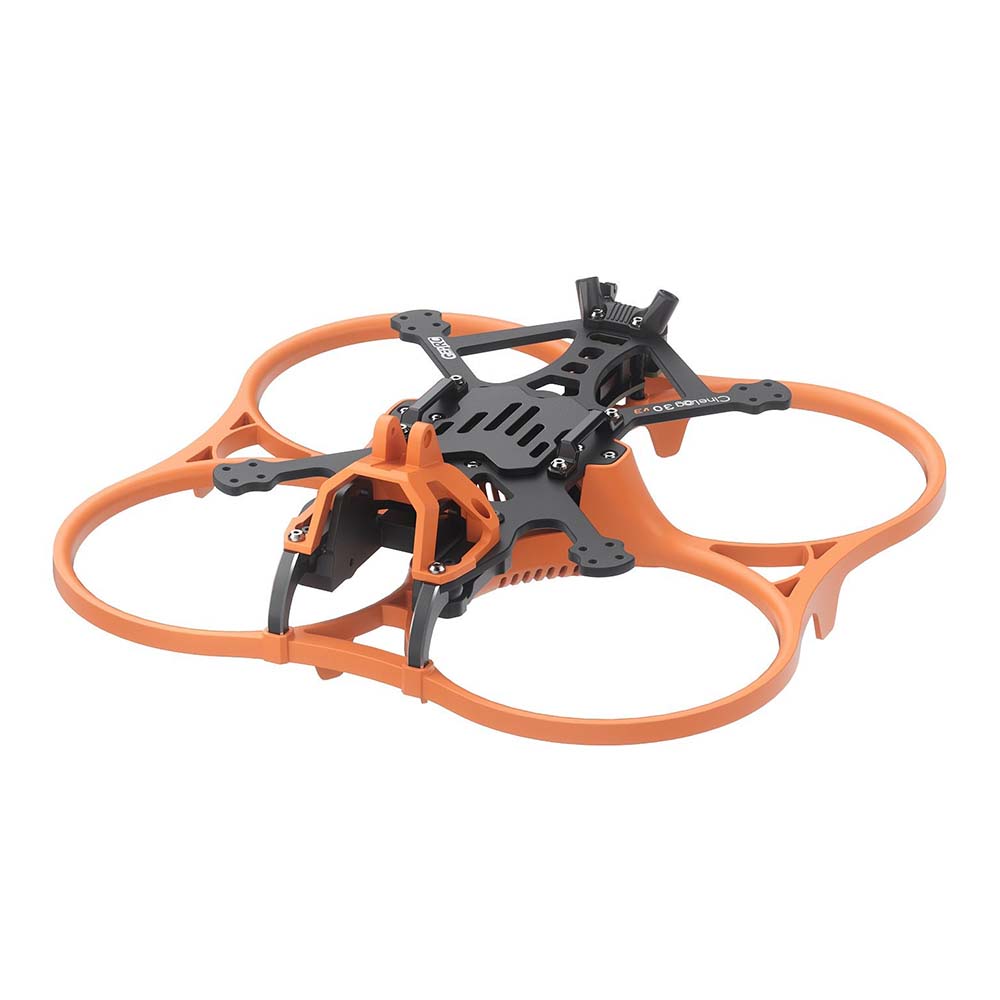

GEP-CL30 V3 is a frame designed for building a 3" cinewhoop drone. The frame is optimized for use with the DJI O4 Pro digital video transmission system. Its core structure consists of a 2.5 mm carbon plate complemented by plastic propeller guards that also protect the drone’s electronics. The central section features aluminum reinforcements for added strength and improved camera mounting for the DJI O4 Pro. The camera is mounted using rubber soft mounts that effectively reduce vibrations.
The construction is designed for easy maintenance. The entire frame can be disassembled using only six screws, allowing quick access to electronics and easy part replacement. Included with the frame is a utility board that integrates a USB-C connector, XT30 connector, capacitor, buzzer, and dedicated space for an RC receiver.
The GEP-CL30 V3 features mounting holes with a 25.5×25.5 mm pattern for the AIO flight controller and 20×20 mm or 25.5×25.5 mm patterns for the VTX. Motor mounting holes are 9 mm M2. The total frame weight is approximately 78 g.
The package includes two sets of propeller guards, three camera mounts, and LED strips.
Key Features
- Diagonal motor pitch: 128 mm
- Maximum propeller size: 3"
- Compatible video system: DJI O4 Pro
- Mounting holes for motors: 9 mm M2
- Mounting holes for AIO board: 25.5×25.5 mm
- Mounting holes for VTX: 20×20 / 25.5×25.5 mm
- Power connector: XT30
- Weight: 78 g
Package Includes
- 1x Propeller cover black
- 1x Propeller cover orange
- 3x Camera cover
- 1x Aluminum battery holders
- 1x LED strip
- 2x Anti-slip pad under battery
- 1x Lipo strip 15x130mm
- 1x Lipo strip 15x150mm
