GEPRC Cinebot35 WTFPV - 6S ELRS s GPS

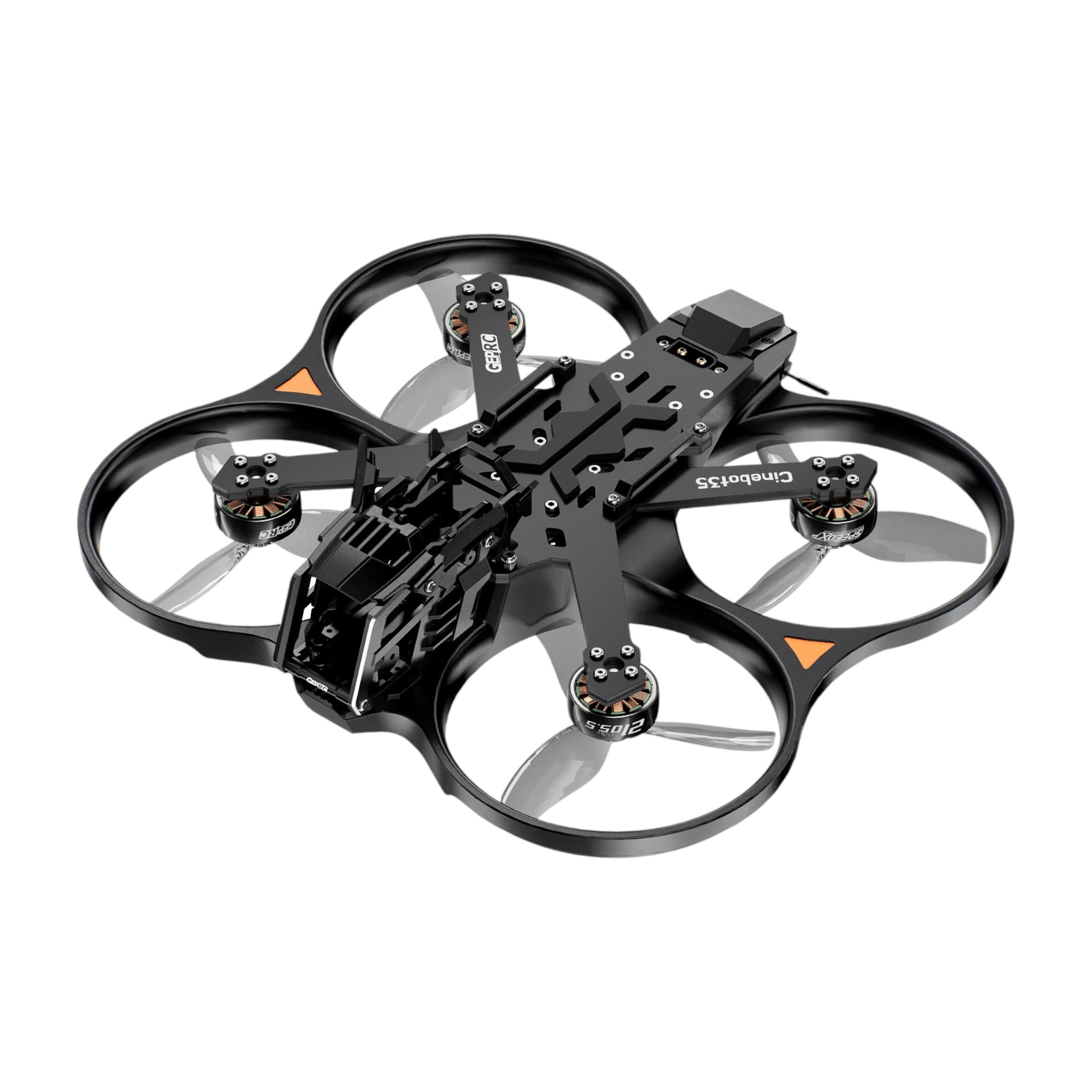

GEPRC Cinebot35 is a powerful 3.5" Cinewhoop in the WTFPV version. The WTFPV version comes without camera, video transmitter and antennas – you can fit your own DJI O4 unit. The drone is suitable for cinematic filming as well as agile freestyle flying outdoors. The drone is equipped with an ELRS receiver at 2.4 GHz. The drone's weight without battery is 323 g. The drone is powered by a 6S battery via an XT60 connector. The propeller guards are equipped with a switchable LED strip for a unique look.

At the heart of the drone is the GEPRC Taker H743 Mini flight controller with STM32H743 processor, ICM42688-P gyro and 16MB blackbox memory. The board supplies 12V from the BEC to the VTX connector, which can be switched on and off via the transmitter. Thanks to this function, it is possible to turn off the O4 Pro unit while waiting for GPS satellites and prevent it from overheating.

Power is provided by 32-bit H60 Mini ESCs with a current rating of 60A. The used SPEEDX2 2105.5 2450KV motors, combined with three-blade HQProp D-T90MM propellers (3.5"), provide strong and linear thrust. The GEP-CT35 frame has a 167 mm motor diagonal distance and a main plate made of 3.5 mm carbon. Integrated propeller guards protect the surroundings and the props, making the drone a safer machine for filming near objects. The cushioned HD camera mount with six damping points isolates the DJI O4 unit from vibrations, while the front protective canopy protects it in crashes.

The drone is equipped with a GEP-M10Q GPS module, which enables return-to-home support. It is also equipped with a separate functional board with antispark protection, a buzzer, a BEC for powering the LED strip, and a USB port. A mount for an action camera is also included.

Recommended 6S LiPo batteries with a capacity of 1000 - 1300 mAh.
