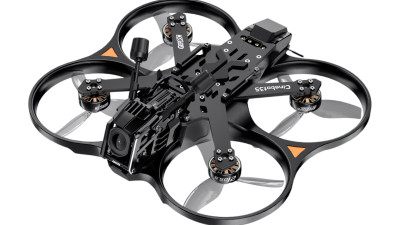

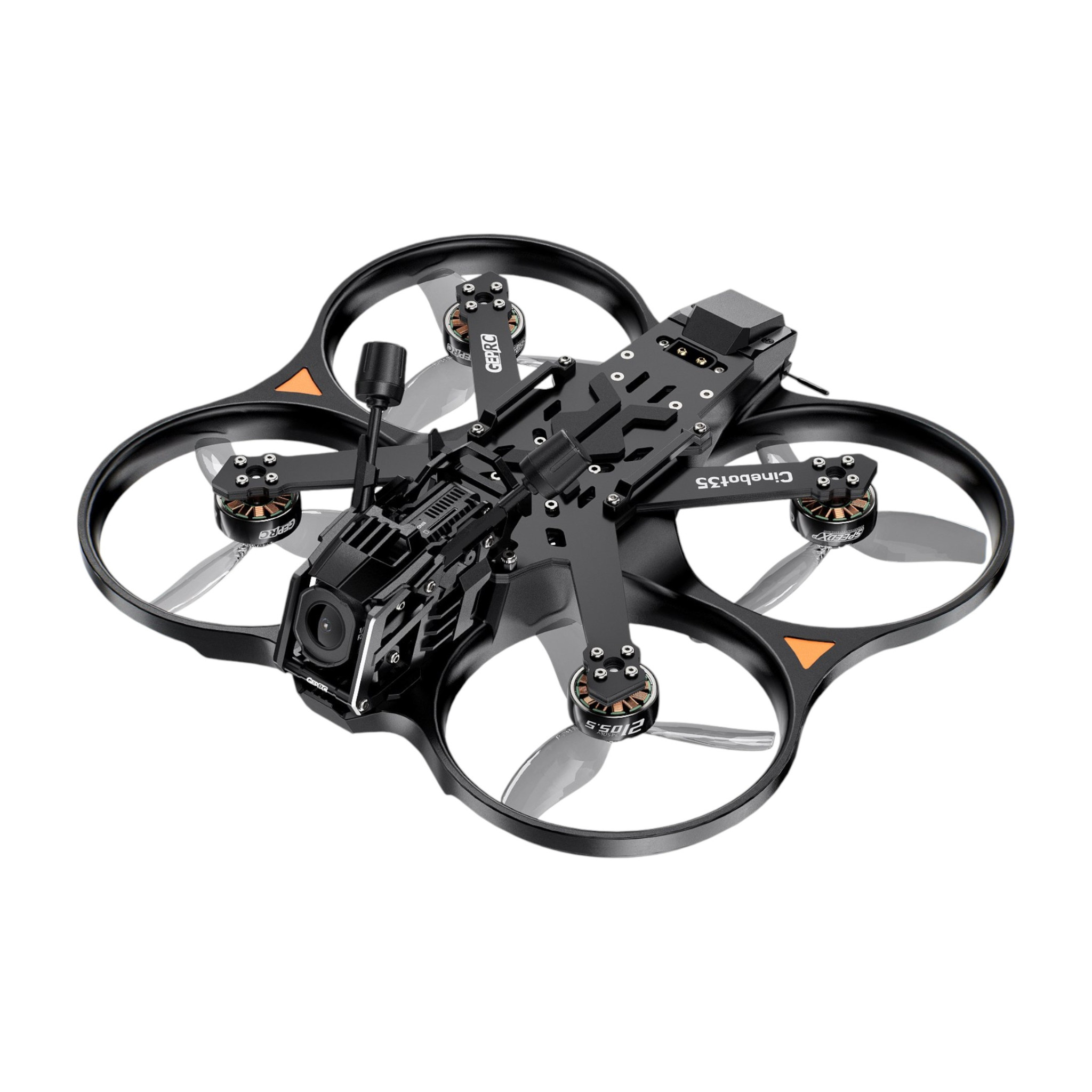

GEPRC Cinebot35 O4 Pro - 6S ELRS with GPS

GEPRC Cinebot35 O4 Pro is a powerful 3.5" Cinewhoop equipped with DJI O4 Pro digital video transmission with 4K recording. The drone is suitable for cinematic filming as well as agile freestyle flying outdoors. This version features an ELRS receiver on the 2.4 GHz frequency. The drone's weight without battery is 388 g. The drone is powered by a 6S battery via an XT60 connector.

The heart of the drone is the GEPRCTaker H743 Mini flight controller with an STM32H743 processor, ICM42688-P gyro and 16MB blackbox memory. The board has 12V from a BEC routed to the VTX connector, which can be switched on and off via the transmitter. Thanks to this feature, the O4 Pro unit can be turned off while waiting for GPS satellites, preventing it from overheating.

Power is handled by 32-bit H60 Mini ESCs with a current rating of 60 A.

The SPEEDX2 2105.5 2450KV motors used in combination with the three-blade HQProp D-T90MM props (3.5") provide strong and linear thrust. The GEP-CT35 frame has a 167 mm motor-to-motor diagonal and a main plate made of 3.5mm carbon. Integrated prop guards protect the surroundings and the props, making the drone a safer machine for filming close to objects. The suspended HD camera mount with six damping points isolates the DJI O4 unit from vibrations, while the front protective canopy shields it in crashes.

The drone is equipped with a GEP-M10Q GPS module and a separate functional board with anti-spark protection, buzzer, LED and USB port. It also includes a mount for an action camera.

Recommended 6S LiPo batteries with a capacity of 1000 - 1300 mAh

Important notice: The DJI O4 camera uses a new generation of gyros, which are more sensitive to vibrations. This may affect the proper functionality of RockSteady and Gyroflow stabilization.
