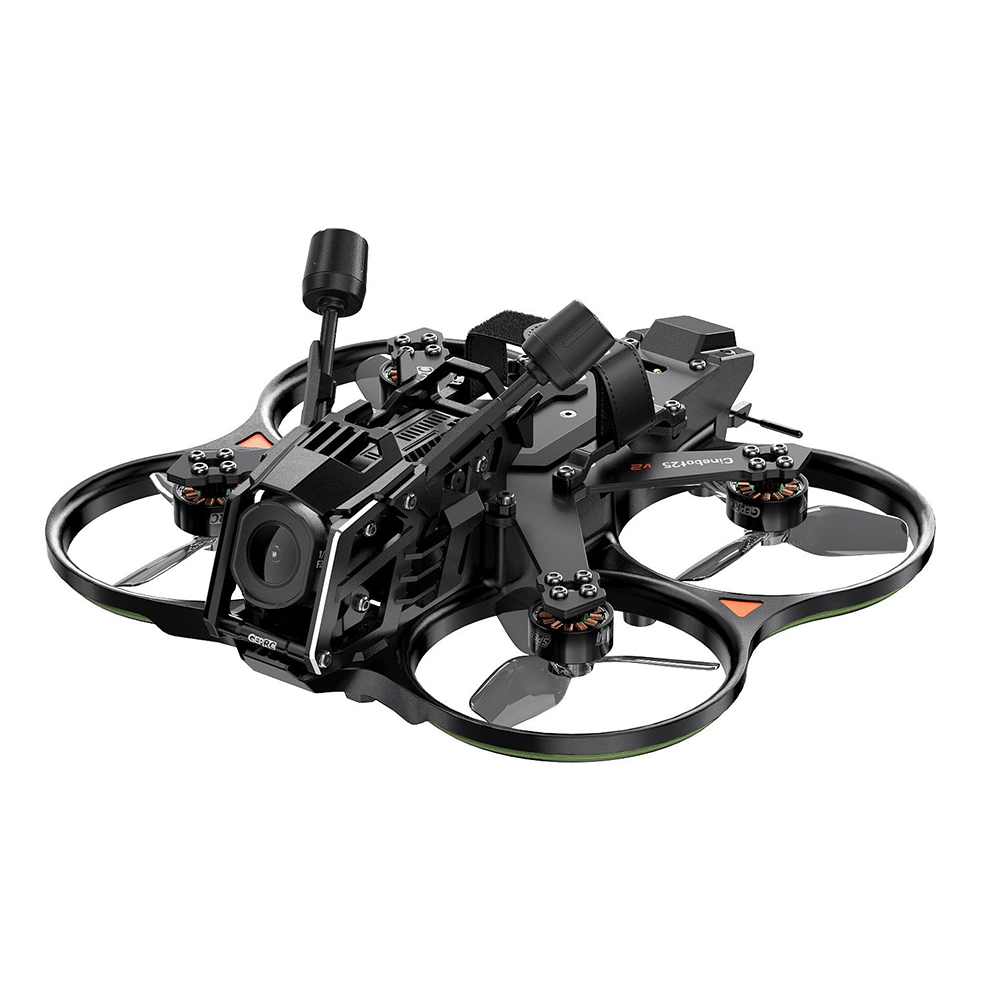

GEPRC Cinebot25 V2 O4 Pro - 4S ELRS

GEPRC Cinebot25 V2 O4 Pro is a 2.5" Cinewhoop with DJI O4 Pro digital transmission, suitable for shooting 4K footage indoors and outdoors. The entire DJI O4 Pro unit is housed in a separate module, isolated from the frame by six rubber soft mounts that minimize vibration transfer to the camera. The module can be detached from the frame with four screws, making it easy to move to another compatible frame.

The GEP-CT25 V2 frame has a motor diagonal distance of 123 mm. It is built on a 2 mm carbon plate. The propeller guards are made of durable nylon. The propeller guards include an LED strip for a unique look. On the rear of the frame there is a fixed XT30 connector for powering the drone and a USB-C connector for easy setup of the drone.

Flight control is handled by the TAKER F722 35A AIO board with an STM32F722RET6 processor, ICM42688-P gyro, and 16 MB blackbox memory. Power is provided by SPEEDX2 1404 4600 KV motors with HQProp DT63 mm×3 V2 propellers. The drone is also equipped with an M10 GPS module, enabling return-to-home functionality, and an ELRS receiver on the 2.4 GHz frequency.

The recommended battery is 4S with a capacity of 750–1100 mAh and an XT30 connector.

Important notice: The DJI O4 camera uses a new generation of gyroscopes that are more sensitive to vibration. This may affect the proper functionality of RockSteady and Gyroflow stabilization.
