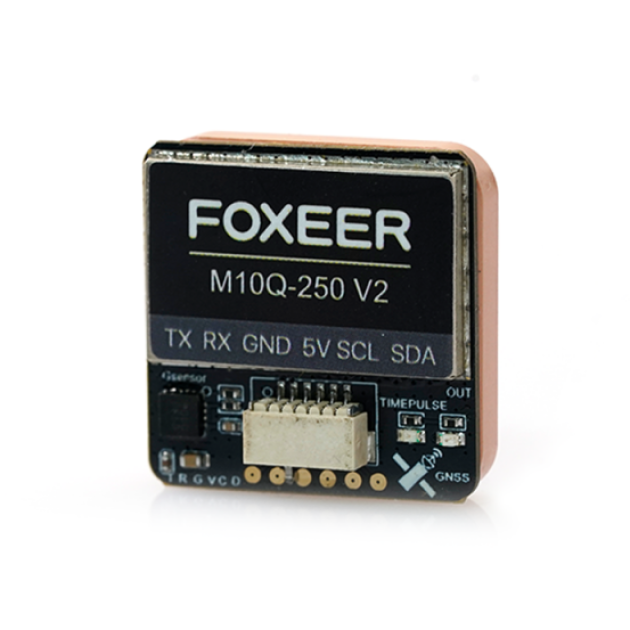

The Foxeer M10Q 250 V2 is a reliable GPS module with an integrated compass. With its dimensions of 25x25x8mm, it is particularly suitable for larger 7" quadcopters. Its main advantage is the large, high-sensitivity antenna, which enables faster and more reliable satellite acquisition. The M10Q 250 is built on the new UBLOX M10050 chip, which surpasses older GPS modules with the M8 chip in both speed and accuracy. The module supports GPS, GLONASS, and BDS. The integrated compass is especially useful for iNav firmware users. The second version features the IST8310 compass.
Key Features
- Chip: M10050
- Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO, ESBAS L1, QZSS L1
- Input voltage: 5V
- Compass: IST8310
- Baudrate: 115200bps
- Protocol: UBLOX + NMEA (UBLOX recommended)
- Recovery frequency: 10Hz
- Speed accuracy: 0.05m/s
- Position accuracy: 2D ACC1.5m
- Weight: 12g
- Size: 25x25x8mm
Package Includes
- 1x GPS module
- 1x Cable
