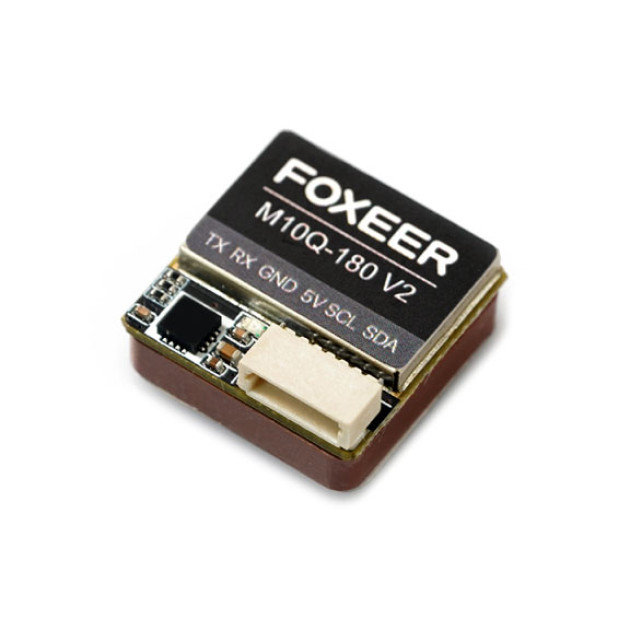

The Foxeer M10Q 180 V2 is a reliable GPS module with an integrated compass. With its dimensions of 18x18x8 mm, it offers a good balance between size and antenna sensitivity, making it particularly suitable for standard 5" drones or cinewhoops. The M10Q 180 is built on the new UBLOX M10050 chip, which surpasses older GPS modules with the M8 chip in both speed and accuracy. The module supports GPS, GLONASS, and BDS. The compass is especially appreciated by users of the iNav firmware.
In the second version, the GPS module uses the IST8310 compass.
This is an original, official product from the manufacturer. The product is supplied in unbranded packaging that does not contain any logos or brand graphics. The product itself is not affected in any way and is fully authentic.
Key Features
- Chip: M10050
- Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
- Number of channels: 72
- Input voltage: 5V
- Compass: IST8310
- Baudrate: 115200bps
- Protocol: UBLOX + NMEA (UBLOX recommended)
- Output frequency: 10Hz
- Speed accuracy: 0.05m/s
- Position accuracy: 2D ACC1.5m
- Weight: 7.5g
- Size: 18x18x8mm
Package Includes
- 1x GPS module
- 1x Cable
