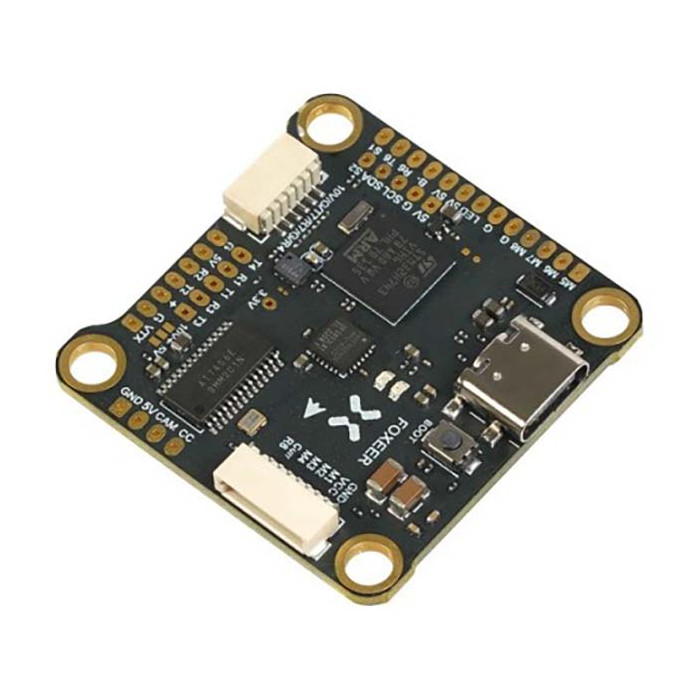

Foxeer H7 is a powerful flight controller capable of operating with 4–8S batteries. It features an STM32H743 processor and MPU6000 gyro. The board is also equipped with a DPS310 barometer, 5V and 10V BECs, and 16MB of onboard blackbox memory. It supports 8 motor outputs. Thanks to the H7 processor, it is compatible with both Betaflight and Ardupilot firmware.
Key Features
- MCU: STM32H743
- Gyro: MPU6000
- Barometer: DPS310
- Power supply: 4-8S Lipo
- BEC: 5V/2A, 10V/2A
- Blackbox: 16MB
- Number of UARTs: 6
- Motor outputs: 8
- USB: USB-C
- Firmware: Betaflight, Ardupilot
- FC size: 37x37mm
- Mounting holes: 30.5x30.5mm M3
- Weight: 7.8g
Package Includes
- 1x Flight controller
- 1x Softmount Set M3*8mm
- 1x Interconnect Cable Set
