Fnirsi DWS-200 F245 Plus Soldering Station

Fnirsi DWS-200 F245 Plus is a 200W soldering station with an F245 handle and a set of six soldering tips, suitable for building and servicing FPV drones as well as general electronics soldering. It uses "active tip" soldering tips compatible with the JBC C245 standard. This means the heating element and temperature sensor are integrated directly into the tip, allowing the station to heat up from sleep to operating temperature in approximately 3 seconds and maintain temperature even when soldering larger joints, such as XT60 connectors or ESC power pads.

Temperature is adjustable in the range of 100-450°C with three saveable presets. On the 2.8" color TFT display, you can switch between three display modes: temperature, temperature with graph, and an "oscilloscope" display of temperature and power behavior. The stand connects to the station via a signal cable, so when the handle is placed back, the soldering iron automatically switches to sleep mode with reduced temperature, saving both tips and energy.

The F245 handle weighs only 36g and has a thin, very flexible silicone cable that can be clipped into the holder during use.

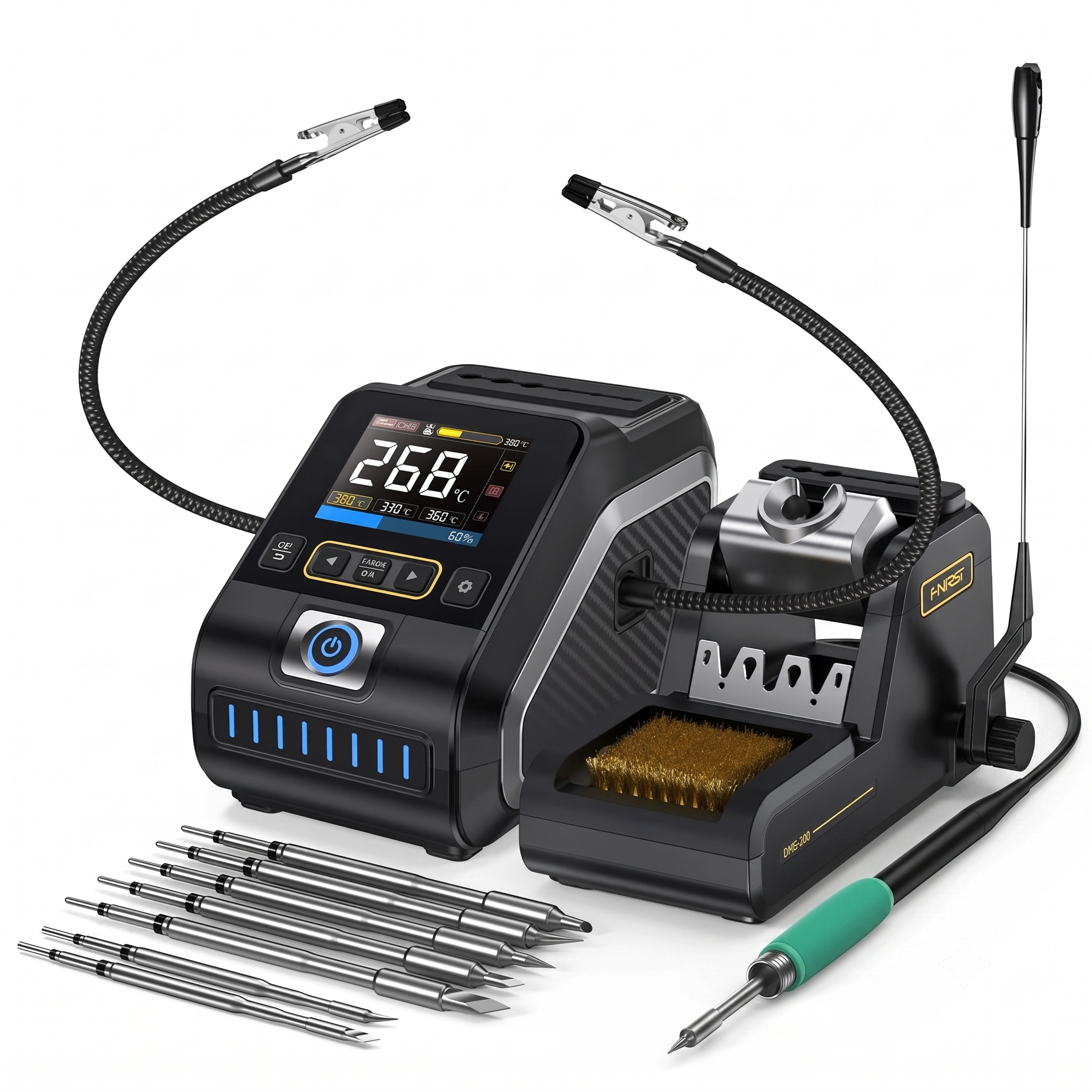

Firmware is updated via USB-C. The package also includes two flexible "third hands" with alligator clips that slide into the sides of the station, and a stand with a brass tip cleaner and storage slots for soldering tips.

The station supports both F245 and F210 handles (the F210 handle is not included).
