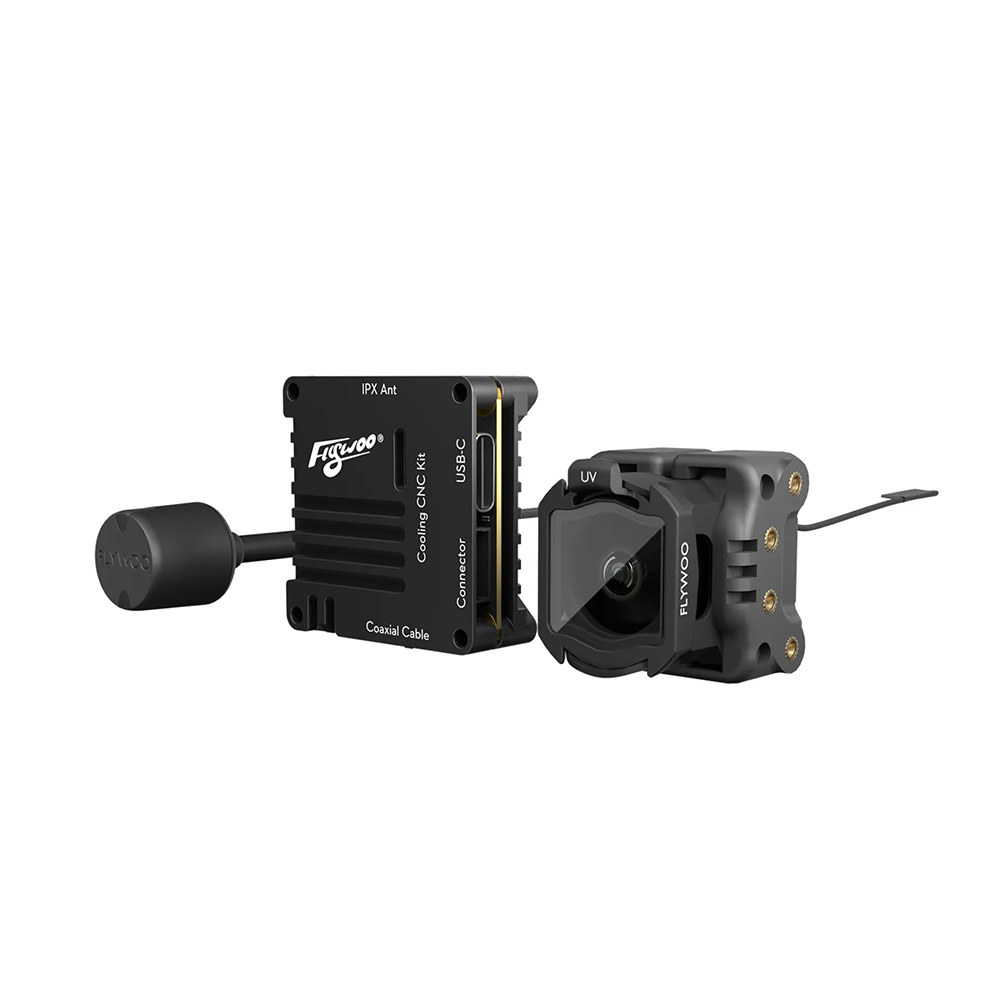

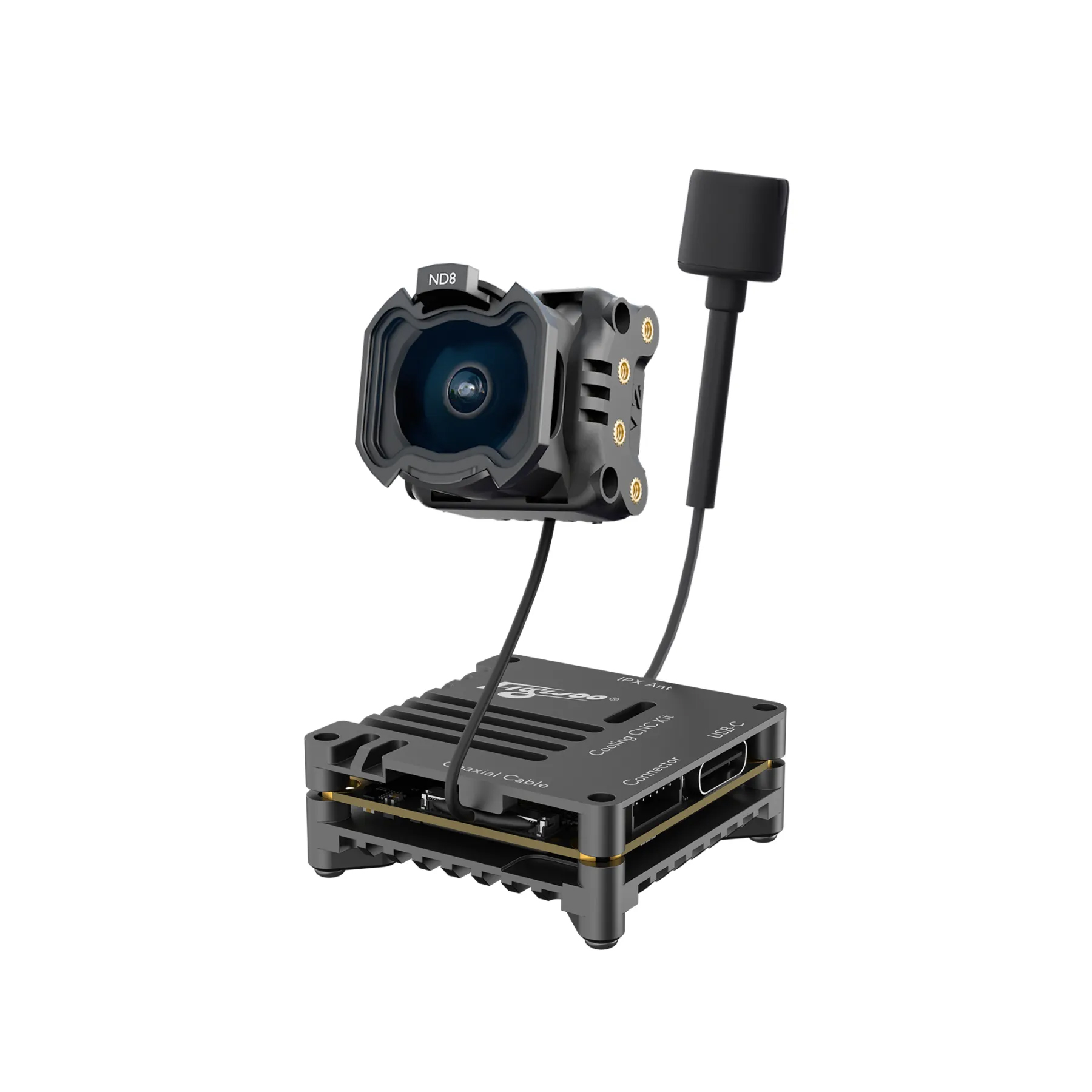

Flywoo DJI O4 Wide Pro was created through a collaboration between Flywoo and Runcam. It is an original DJI O4 (lite) unit with a different camera lens, thanks to which it has a larger FOV of 159°. Included are plastic rear camera covers that serve as a mounting adapter. The Pro version adds an aluminum heatsink, a longer 150mm coaxial cable, and a u.FL LHCP antenna. The unit is therefore also suitable for 5" freestyle drones as a more affordable alternative to the standard DJI O4 Pro unit. Due to the change in FOV, DJI Rocksteady may not always work correctly; Gyroflow stabilization is fully functional.
DJI O4 is a top-tier digital video transmission system. The set consists of a camera, a transmission module, and one antenna. DJI O4 offers image transmission in 1080p at 100 fps with a data rate of up to 60 Mbps. The unit allows video recording directly on the drone at up to 4K resolution and 60 fps. Video is stored in the internal 23 GB memory. Image stabilization is possible immediately using DJI Rocksteady or later using Gyroflow. For racing pilots, Racemode is available with latency as low as 20 ms. The transmission supports Canvas Mode for classic OSD from the flight controller. Power can be supplied from a 2–3S LiPo battery (3.7–13.2 V). The transmission module has M2 mounting holes with a spacing of 25.5 × 25.5 mm.
DJI O4 is intended for use with DJI Goggles 3 or DJI Goggles N3 goggles and DJI Controller 3.
DJI O4 can also be used with DJI Goggles 2 or DJI Integra and DJI Controller 2. In that case, however, Racemode is not available and the maximum bitrate is limited to 50 Mbps.
The DJI O4 Wide Air Unit comes standard with the I469D gyroscope, which may cause image jitter on some frames when stabilization is used. Replacing it with the MP66 gyro solves this problem without affecting functionality, however MP66 chips are already discontinued and their stock is limited. Replacement with MP66 is performed only by Flywoo technicians. Minor marks may be visible on the unit after service.
Key Features
- Input voltage: 3.7–13.2 V
- Connection cable length: 50/150 mm
- Camera size: 21.3 × 22 × 20 mm (20 mm case)
- Camera sensor: 1/2 CMOS
- FOV: 155°
- Camera cover: ABS plastic
- ISO: 100–6400 (Auto), 100–12800 (Manual)
- Video format: MP4 (max 100 Mbps)
- Color profiles: normal
- Stabilization: RockSteady 3.0+ / off (Gyroflow support)
- Internal memory: 23 GB
- External memory: none
- Unit equipped with aluminum heatsink
- Transmission quality: 1080 P@30/50/60/100 fps
- Maximum range: 10 km (FCC), 6 km (CE)
- Transmission power: 5.1 GHz: <23 dBm/200 mW (CE) / 5.8 GHz: <30 dBm/1000 mW (FCC), <14 dBm/25 mW (CE)
- Race mode latency: 20 ms (Goggles 3)
- Frequency range: 5.170–5.250 GHz, 5.725–5.850 GHz
Package Includes
- 1x Flywoo O4 Wide Pro
- 1x UV filter
- 1x 18 mm adapter
- 1x 20 mm adapter
- 1x 150 mm coaxial cable
- 1x screw set
- 1x u.FL antenna
