Flywoo DJI O4 Wide

Flywoo DJI O4 Wide is a collaboration between Flywoo and Runcam. It is the original DJI O4 unit with a different camera lens, which provides a larger FOV of 155°. Includes plastic camera back covers that serve as an adapter for mounting. Due to the change in FOV, DJI Rocksteady may not always function correctly; Gyroflow stabilization is fully functional.

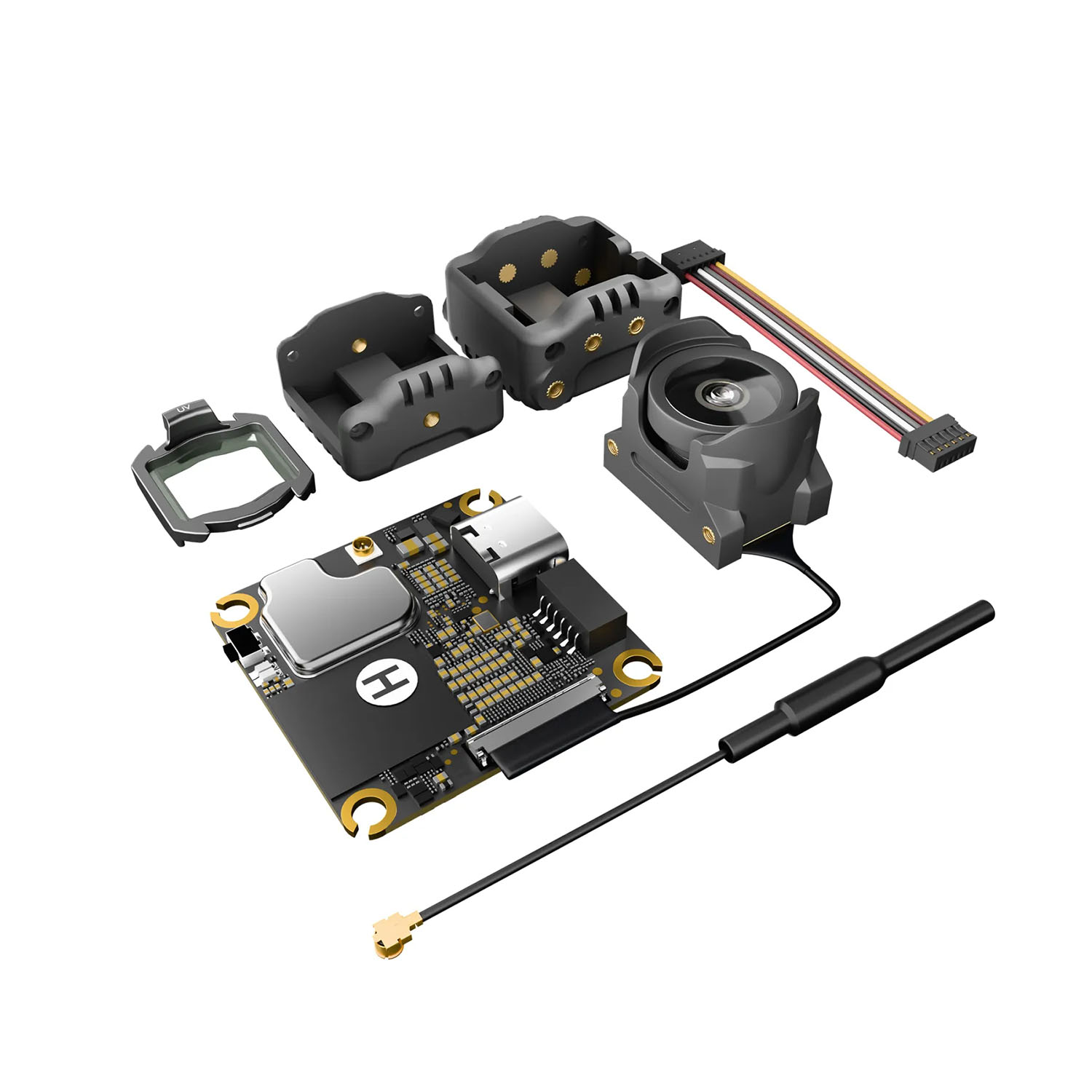

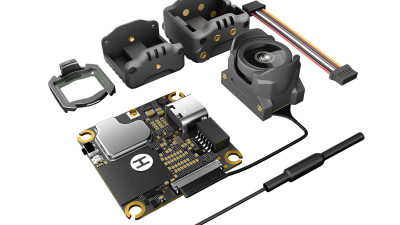

DJI O4 is a top-tier digital video transmission for smaller FPV drones or racing FPV machines. The set consists of a camera, a transmitter module, and one antenna. DJI O4 offers image transmission in 1080p at 100 fps with a bitrate of up to 60 Mbps. The unit allows video recording directly on the drone in 4K resolution at 60 fps. Video is stored in an internal 23GB memory. Image stabilization is possible immediately using DJI Rocksteady or later using Gyroflow. For racing pilots, Race mode is available with latency of up to 20 ms. The transmission supports Canvas Mode for classic OSD from the flight controller. Power can be supplied by a 2–3S LiPo battery (3.7–13.2 V). The transmitter module has mounting holes M2 with a pitch of 25.5 × 25.5 mm.

DJI O4 Pro is intended for use with DJI Goggles 3 or DJI Goggles N3 and DJI Controller 3.

DJI O4 Pro can also be used with DJI Goggles 2 or DJI Integra and DJI Controller 2. In this case, however, Race mode is not available, and the maximum bitrate is limited to 50 Mbps.
