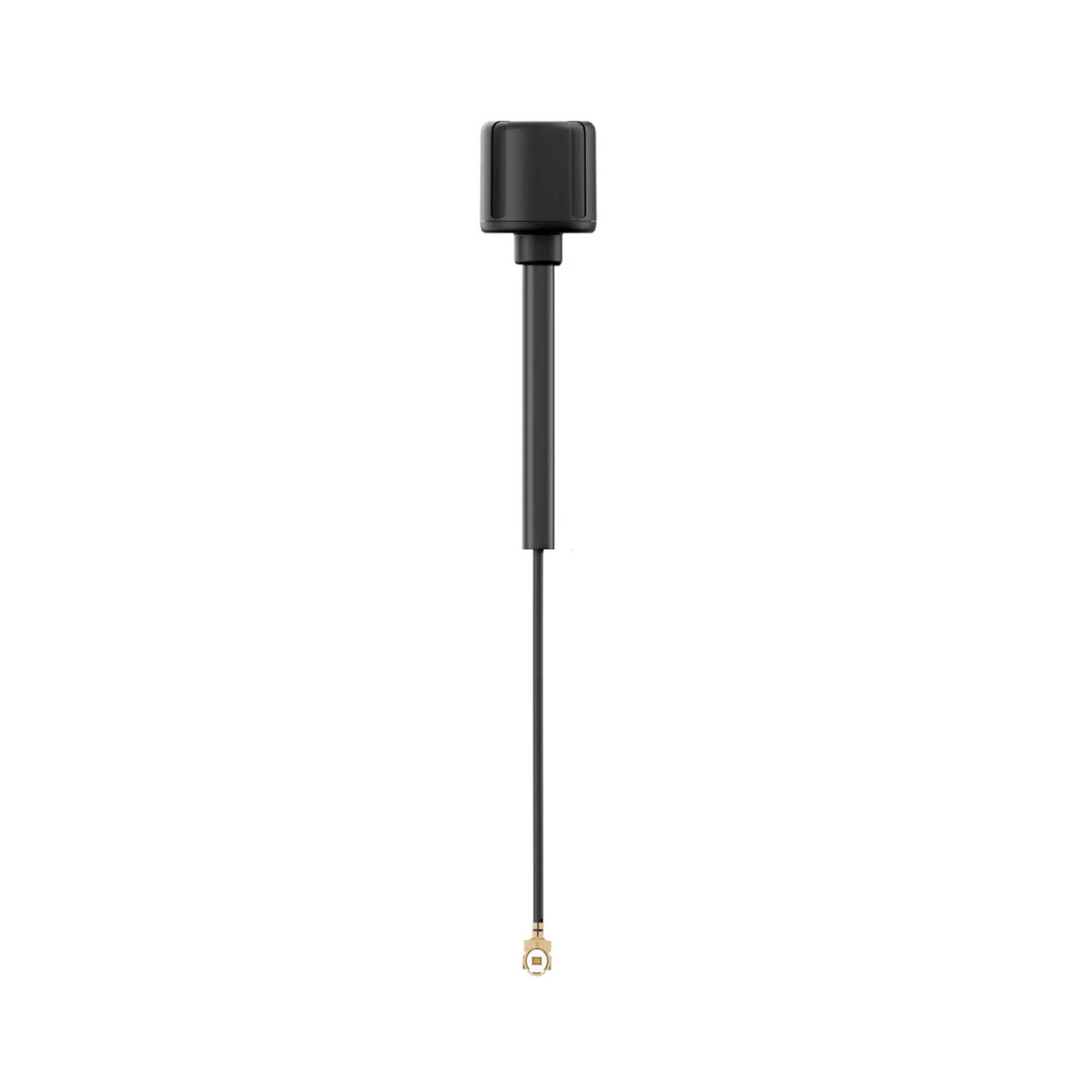

Flywoo LDS is an antenna with a u.FL connector. Due to its lightweight and LHCP polarization, the antenna is suitable for 3-5" freestyle copters with digital video transmission. The antenna has a 40 mm long reinforced section for mounting to the frame, and a 60 mm flexible free cable. The total length of the antenna is 115 mm. The antenna is the same size as the original antenna from DJI O4 Pro.
The antenna radiator is directly burned into the ABS housing using the LDS (Laser Direct Structuring) method – resulting in a durable and effective structure with a housing diameter of 15 mm, which withstands impacts better than standard FPC or four-leaf antennas. The antenna gain is 1.8 dBi in the 5.3–6 GHz band.
Key Features
- Connector: u.FL
- Total length: 115 mm
- Cable length: 60 mm
- Polarization: LHCP
- Gain: 1.8 dBi
- SWR: ≤1.35
- Housing material: ABS plastic
- Weight: 5.5 g
Package Includes
- 1x Antenna
