Flywoo Flylens 75 O4 Wide - 2S ELRS

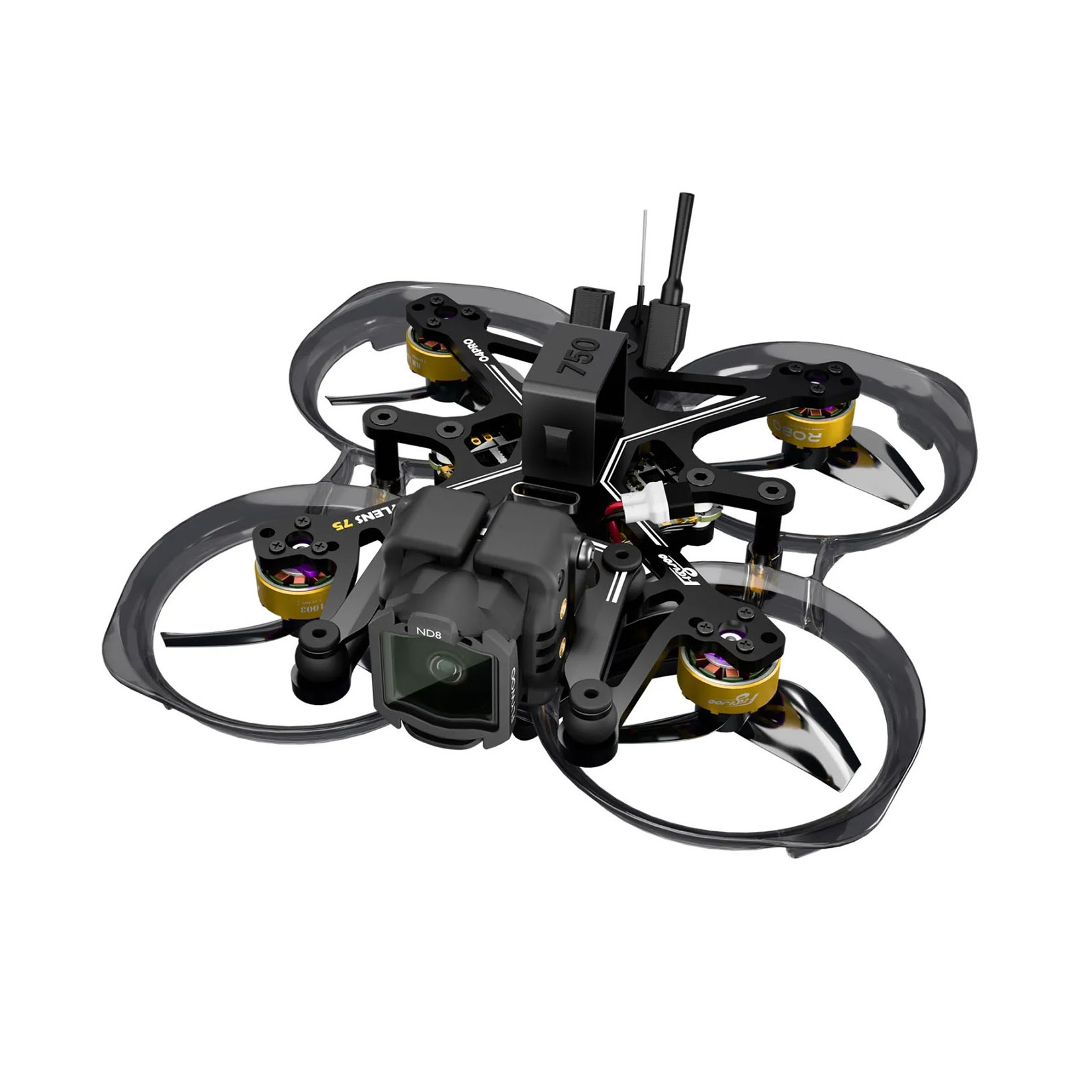

Flywoo FlyLens75 is a small 1.6" Cinewhoop with DJI O4 digital video transmission and the Flywoo Wide modification, where the original camera lens is replaced with another one with a wider FOV. The O4 unit allows recording in up to 4K resolution, so there is no need to carry an external HD camera. Due to the FOV change, DJI Rocksteady may not always work properly, Gyroflow stabilization is fully functional.

 Thanks to the ducted propellers and low weight (55g without battery), flying the drone is relatively safe, so it can also be used for filming indoors or near people. The propeller ducts are made of durable polycarbonate. The ducts are secured with 4 screws, making any drone servicing relatively easy. The DJI O4 camera is mounted on rubber soft mounts that minimize vibration transfer. Flight is provided by ROBO 1003 14800Kv motors in combination with a 2S Lipo battery and Gemfan 1609-4 propellers. The flight controller used is the Flywoo GOKU F405 ERVT, which uses an F405 processor and ICM42688 gyro. The board also includes blackbox, barometer, USB-C connector, and an integrated ELRS receiver on 2.4GHz.

Recommended batteries are 2S with a capacity of 720-1000mAh.

Important notice: The DJI O4 camera uses a new generation of gyros that are more sensitive to vibrations. This may affect the proper functionality of RockSteady and Gyroflow stabilization.
