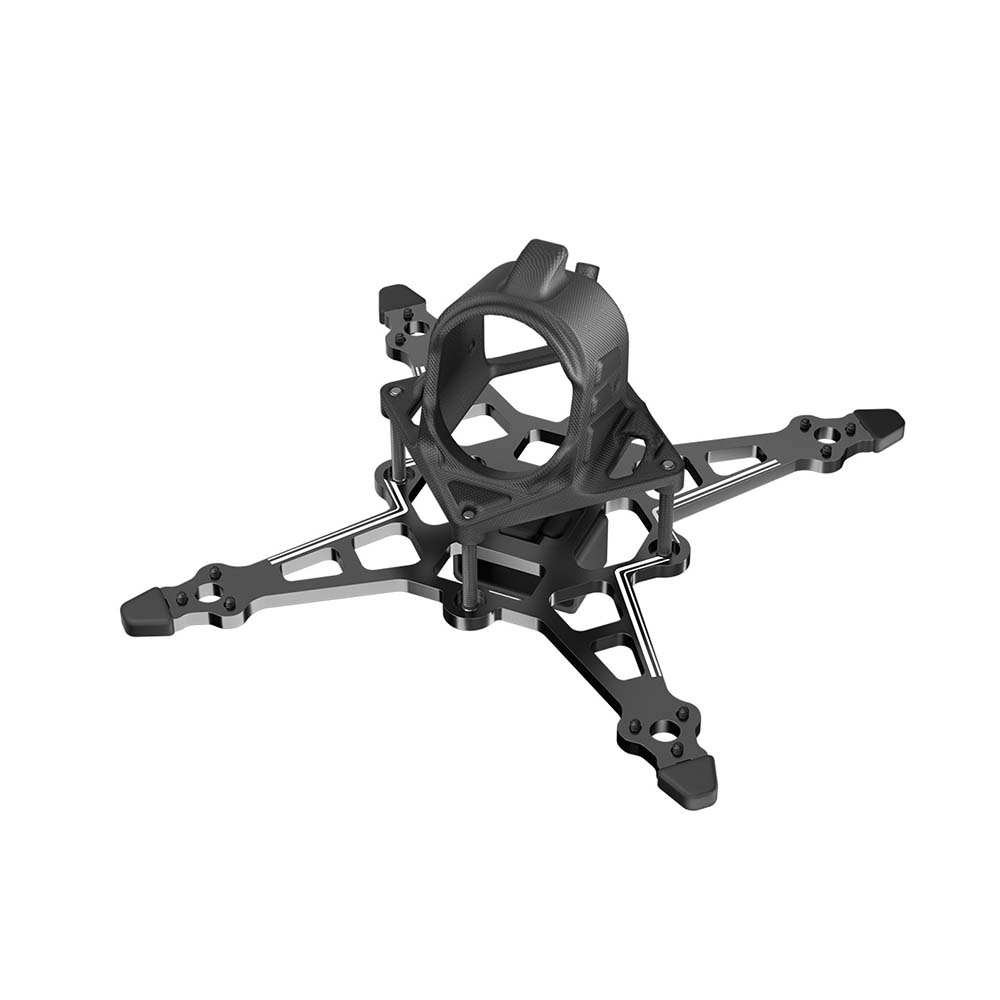

The Flywoo Firefly18 1S Nano Baby V3 is a frame for building a small toothpick drone with 1.8" (45mm) propellers powered by a 1S battery. The drone is ideal for flying in the garden, park, or smaller outdoor areas. The frame is available in two versions, differing in the 3D-printed canopy. One version is designed for a DJI O4 camera with a Flywoo mount. The other version is intended for standard Nano-size cameras used in analog video transmission systems or digital systems such as Walksnail Avatar and HDZero. The frame is designed for use with an AIO board featuring a 25.5x25.5mm mounting hole pattern. The canopy is mounted above the stack using the same screws that secure the AIO board. For durability, the bottom plate is CNC-cut from 2mm thick carbon fiber. The package also includes plastic propeller guards that can be optionally installed on the drone.
Key Features
- Size: 76,5x76,5mm
- Configuration: True-X
- Carbon thickness: 2mm
- Propeller size: 1,8"/45mm
- Mounting holes for plate: 25,5x25,5mm
- Mounting holes for motors: 6,6mm M1.4
- Camera size: 14mm (Nano) / DJI O4
- Weight: 8g
Package Includes
- 1x Frame
- 1x Softmount Kit
- 1x Linear Antenna
- 1x DJI O4 Camera Mount (O4 version)
- 1x Battery Mount
- 4x Propeller Guard
